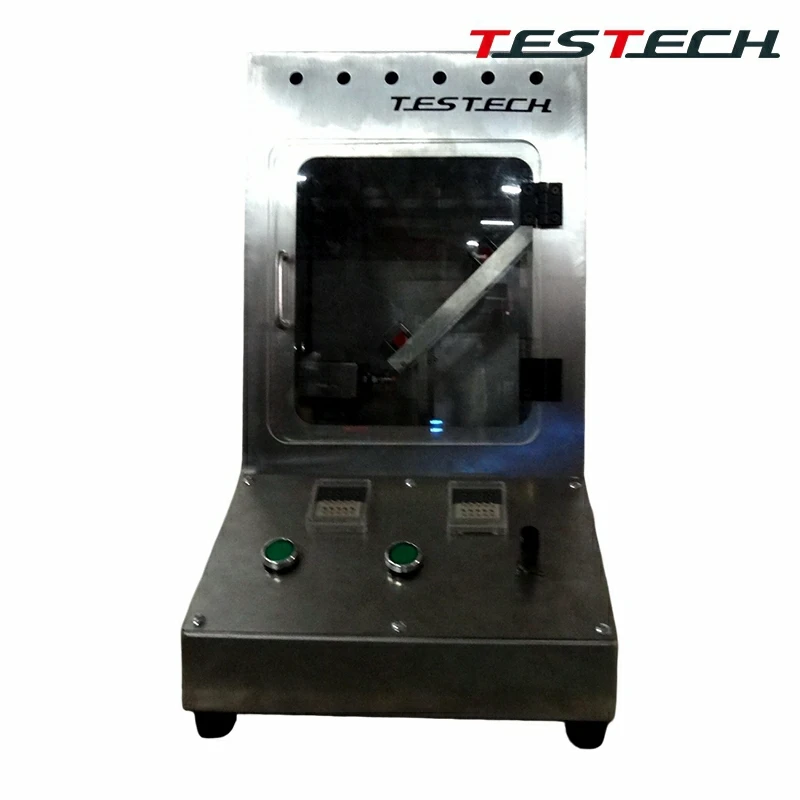

45°Test Determination Of Flame Spread Rate

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of 45°test determination of flame spread rate in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

This tester is suitable for textile fabrics tested at a 45 degree angle. The specimen is placed at a 45 degree incline and ignited for 1 second. The time required for the specimen to burn upward with flame over a specified distance is used as a measure of the severity of textile burning behavior.

• Full stainless steel chamber with attractive appearance, corrosion resistance, and easy cleaning.
• Lightweight structure for convenient movement.

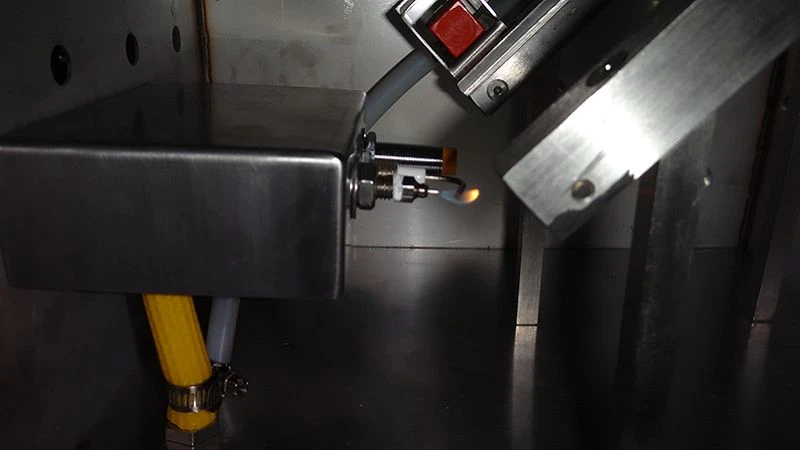

• Imported needle valve adjusts flame height to 16 mm.
• Imported brand pressure gauge and pressure regulating valve display gas pressure.
• Heat-resistant glass door allows easy observation of internal test status.
• Main power switch for power cutoff.

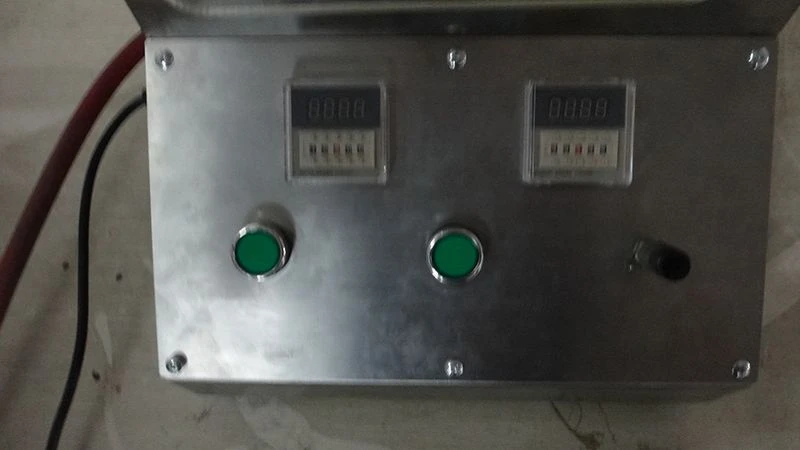

• Automatic timer with 0.1 s resolution and timing reminder function.
• Start switch initiates testing and afterflame time is automatically timed.
• Micro switch automatically records the end time of the test.
• PLC with touch-screen control system provides more automated testing.
• Burning rate is automatically calculated and stored.
• Equipped with a standard customized brushing device made of stainless steel; the brush applies a pressure of 150 g to the specimen.
• Each brush cluster has 20 bristles with diameter 0.41 mm; there are 4 clusters per 25 mm, and bristle length is 19 mm.
• Customized stainless steel flame height ruler of 16 mm.
• Optional printer allows free printing of test reports.
