Product Overview

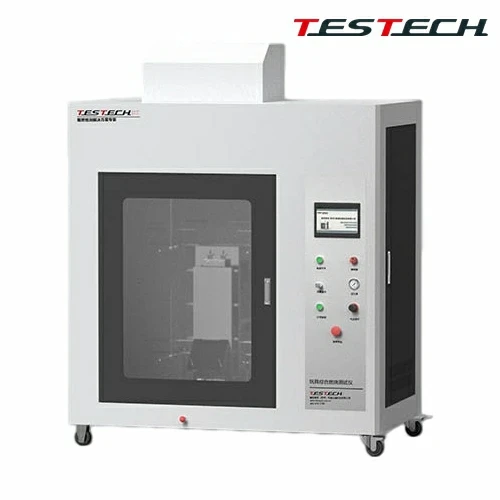

The TESTech toy flammability tester is designed and developed according to DIN 71-2 and is equipped with an ISO 6941 burner. It is used to test children's dress-up costumes, including capes, draped garments, and similar items; toys intended to be cuddled by children, such as soft filled toys; child-enterable toys such as play tents and play rooms; as well as masks and wigs.
The equipment is fitted with a touch-screen intelligent control system, and the relevant standard test procedures can be freely selected from the start interface, making the testing process more convenient and simpler.
Main Features
- All specimen holders are made of stainless steel with good appearance and corrosion resistance.
- Imported standard burner; flame height adjustable from 0 to 60 mm; nozzle orifice 0.19 mm.
- Time is automatically recorded and stored; timer accuracy 0.1 s.
- Electronic automatic ignition and automatic extinguishing.
- Ignition time can be freely set from 0 to 99.99 seconds; afterflame time and afterglow time are automatically recorded and digitally displayed.
- PLC with touch-screen control system provides more intelligent testing; test data is automatically recorded and stored.
- Imported brand pressure gauge and control valve provide more stable gas pressure.
- Imported needle valve precisely controls flame height for better flame stability.
- High level of automation with simple and user-friendly operation.
- Equipped with different specimen holders for different tests; all are made of stainless steel; flame height gauge is supplied.
- Burner angle is adjustable between vertical and 45 degrees.
- Programmable controller with 7-inch touch screen for control, testing, calculation, and data display.
- No need for hand-held stopwatch or manual timing; the system automatically records test time and generates test reports.
- Test duration and ignition duration can be freely set on the touch screen to meet multiple test standard requirements.
Configuration
|
Parameter |
Value |
|
Model |
TTech-DIN71-2 |
|
Voltage |
220V, 50/60Hz |
|
Specimen Clamp Size |
150 mm x 560 mm |
|
Weight |
50 kg |
|
Documentation |
Product instruction manual and factory certificate |
|
Flame Height Range |
0 to 60 mm |
|
Burner Nozzle Orifice |
0.19 mm |
|
Timer Accuracy |
0.1 s |
|
Touch Screen |
7-inch |
