Product Overview

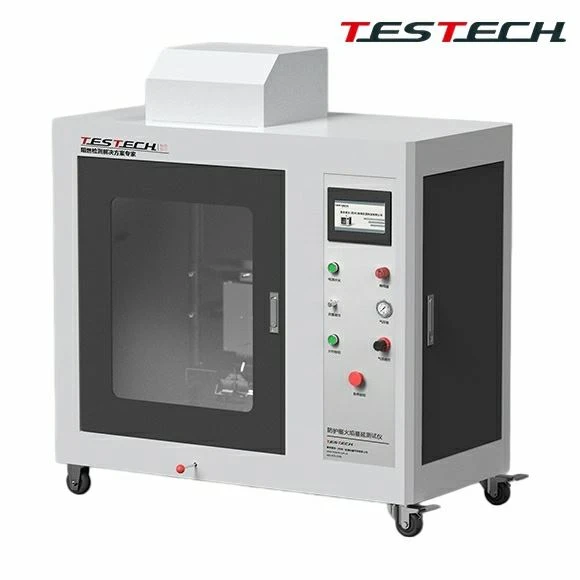

The TESTech protective clothing flame tester is designed and manufactured according to the ISO 15025 protective clothing burning test standard. It is used to test the flame spread behavior of protective clothing under small flame exposure.
This instrument is mainly used as a professional device for simulating and evaluating flame spread hazards of protective clothing, and for determining the ignition hazard of textile materials or other combustible materials with similar functional applications.
Technical Features

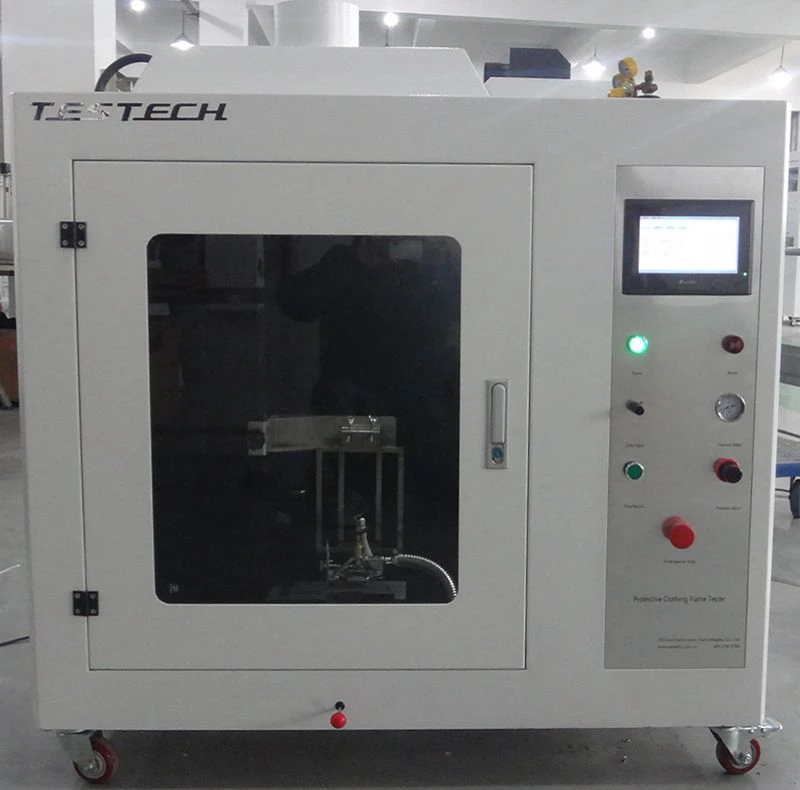

- Combustion chamber made of stainless steel with attractive appearance and corrosion resistance; dimensions 1200 mm x 600 mm x 1200 mm.
- All specimen holders are made of stainless steel and offer good corrosion resistance.
- Specimen holder sizes: 160 mm x 200 mm and 80 mm x 200 mm.
- Imported standard burner with nozzle orifice 0.19 mm; flame height horizontal 25 mm +/- 2 mm and vertical 40 mm +/- 2 mm.
- Test time is automatically recorded and stored; timer accuracy 0.1 s.
- PLC control system with touch screen provides intelligent testing; test data is automatically recorded and stored.
- Imported brand pressure gauge and regulating valve provide more stable gas pressure.
- Imported needle valve precisely controls flame height for greater flame stability.
- High level of automation with simple and user-friendly operation.
- Equipped with two specimen holder sets for surface burning test and bottom burning test, both made of stainless steel.
- System provides automatic ignition and automatic extinguishing.
- Flame height gauge is supplied.
- Burner angle is adjustable to horizontal, vertical, and 30 degrees.

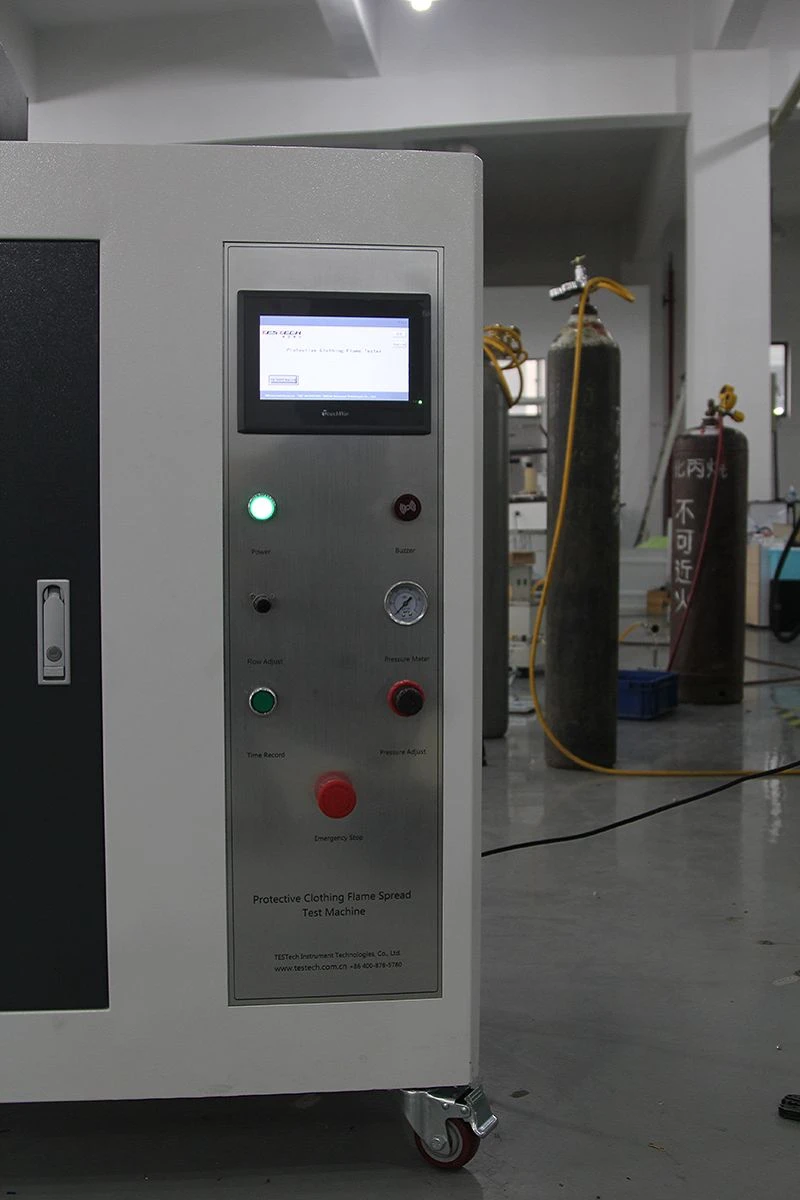

- Programmable controller with 7-inch touch screen for control, testing, calculation, and data display.
- Automatic ignition with pulsed high-voltage electronic system.

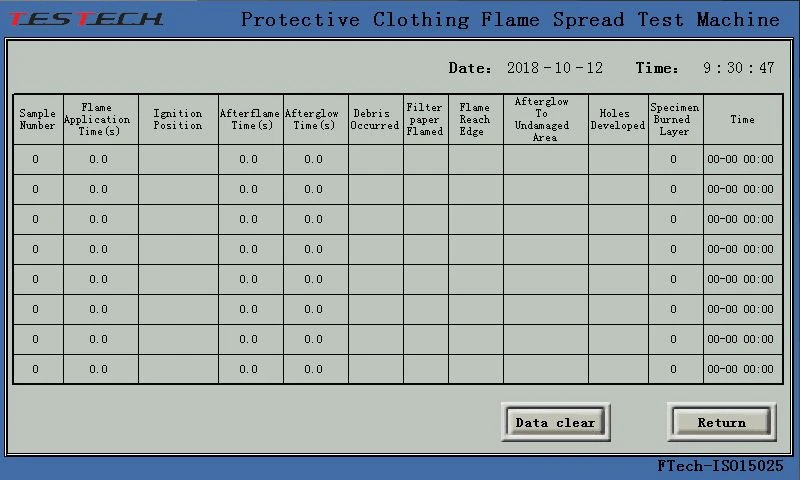

- No need for hand-held stopwatch or manual timing; test time is automatically recorded and test reports can be generated.
- Test time and ignition time can be freely set on the touch screen to meet different testing requirements.
- Surface burning and bottom edge burning test procedures can be switched directly on the touch screen.
Electrical and Gas Requirements
|
Parameter |
Value |
|
Model |
TTech-ISO15025 |
|
Combustion Chamber Size |
1200 mm x 600 mm x 1200 mm |
|
Specimen Holder Size 1 |
160 mm x 200 mm |
|
Specimen Holder Size 2 |
80 mm x 200 mm |
|
Burner Nozzle Orifice |
0.19 mm |
|
Horizontal Flame Height |
25 mm +/- 2 mm |
|
Vertical Flame Height |
40 mm +/- 2 mm |
|
Timer Accuracy |
0.1 s |
|
Power Supply |
220V, 50/60Hz |
|
Gas |
Propane and butane mixture or butane, supplied by user |
|
Accessories |
304 stainless steel flame height gauge, 2 hose clamps, instruction manual, factory certificate |
