Textiles and Films Flame Propagation Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of textiles and films flame propagation tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The TESTech textiles and films flame propagation tester is designed and developed according to NFPA 701 Method 1.

It is used to determine the surface burning time of textile fabrics, and it is suitable for measuring burning time and mass loss of fabrics or films.

The equipment is fitted with a touch-screen intelligent control system. Relevant standard test programs can be selected freely from the start interface, making operation more convenient and simple.

• Painted enclosure with attractive appearance.
• Internal chamber dimensions: 675 mm length x 500 mm width x 700 mm height.
• Electronic automatic ignition.
• Ignition time can be set freely from 0 to 99.99 s. Afterflame time and flame-retardant time are automatically recorded and digitally displayed.
• Flame height is adjustable and the unit can be equipped with a flame temperature measuring device.

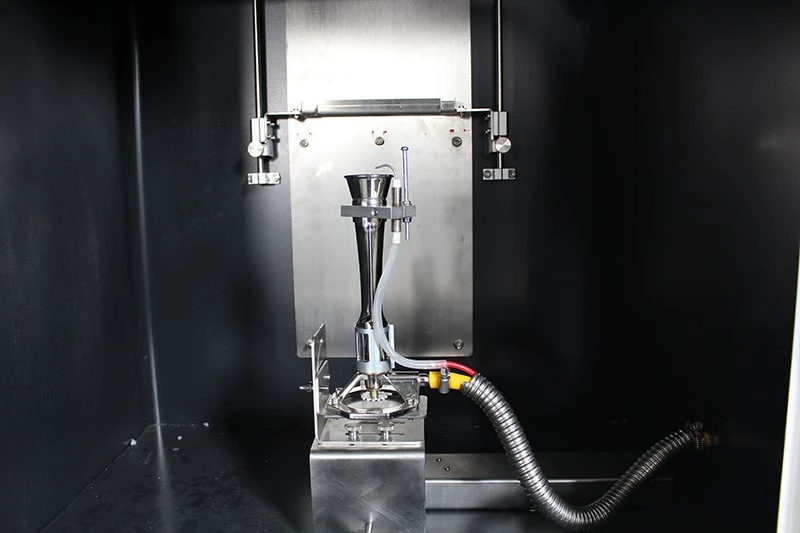

• The burner is fixed on a sliding rail for convenient operation. When pushed to the burning position, timing starts automatically.
• Imported needle valve precisely controls gas flow and adjusts flame height.
• Imported flowmeter precisely displays gas flow.

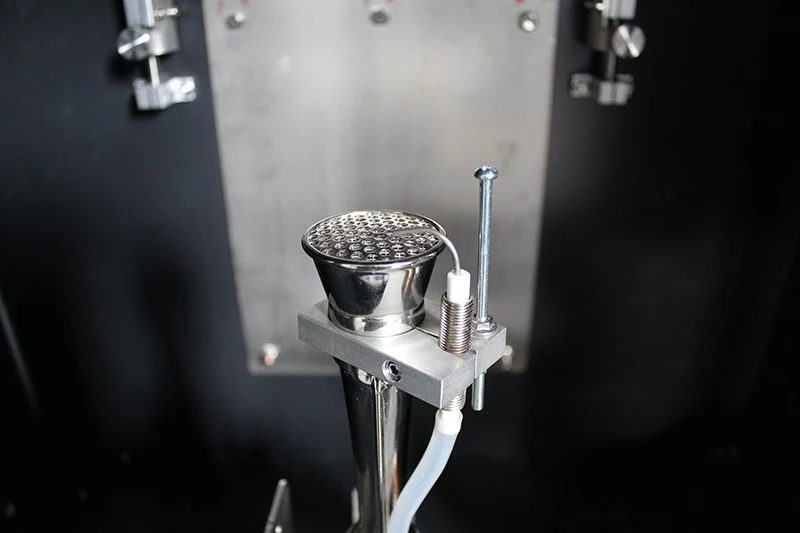

• Equipped with an imported Meker burner from the United States, fully complying with NFPA 701 burner requirements.
• Imported brand pressure gauge and pressure regulating valve for gas pressure adjustment.
• PLC plus touch-screen intelligent control system for more convenient and simpler testing.
• The system automatically ignites, automatically times, and automatically stores test data.
