Product Overview

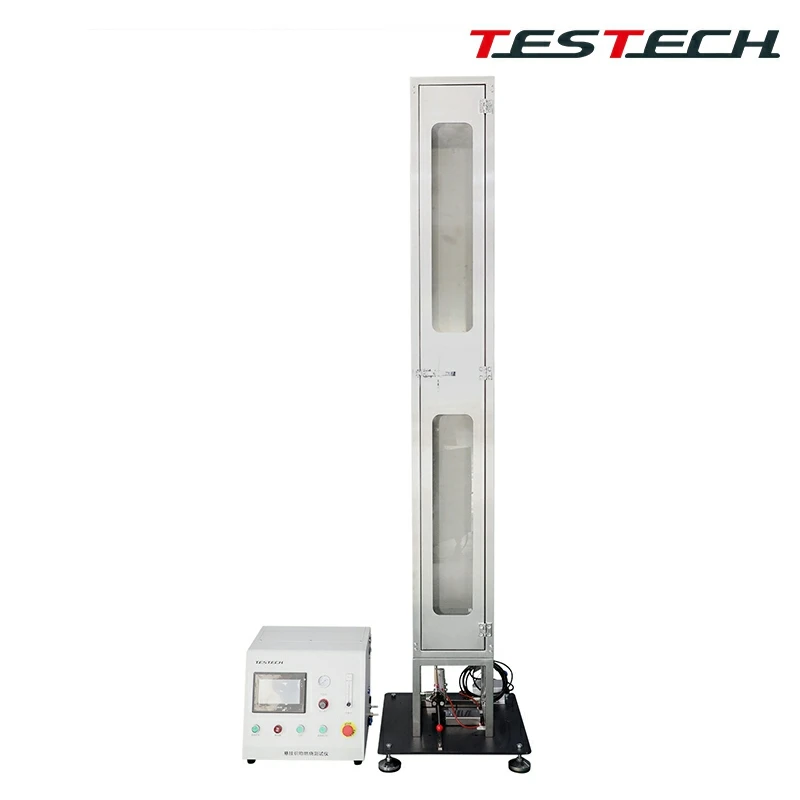

This tester is widely used for flame-retardant performance testing of hanging curtains, outdoor fabric products, and other public-place textiles.
It is developed according to NFPA 701 Method 2 of the National Fire Protection Association in the United States. It is suitable for single-layer or multi-layer fabrics, fabrics with mass greater than 700 g/m2 (21 oz/yd2), and fabrics with polyethylene coatings.
Main Features
- Overall dimensions: 305 mm x 305 mm x 2420 mm.
- Burner dimensions: diameter 9.5 mm +1.5/-0 mm, length 100 +/- 10 mm.
- Approximate weight: 110 kg.
- Flowmeter range: 0 to 66 cc/min.

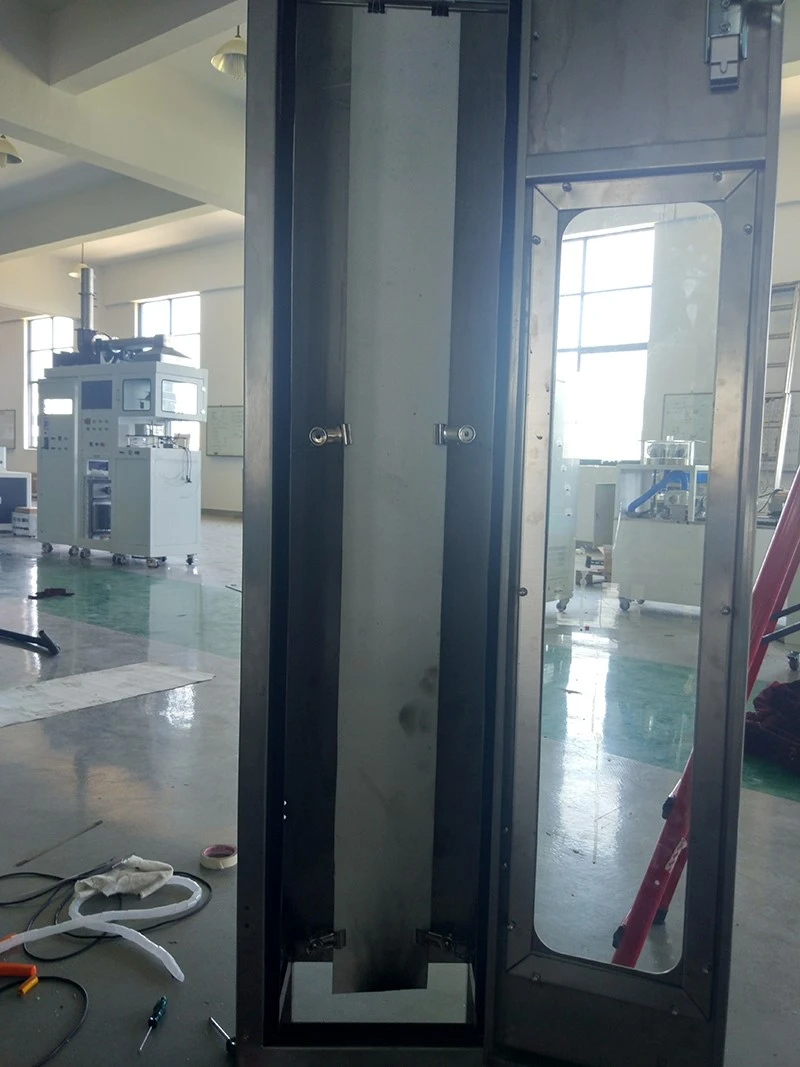

- Full stainless steel chamber structure.
- Equipped with stainless steel wire.

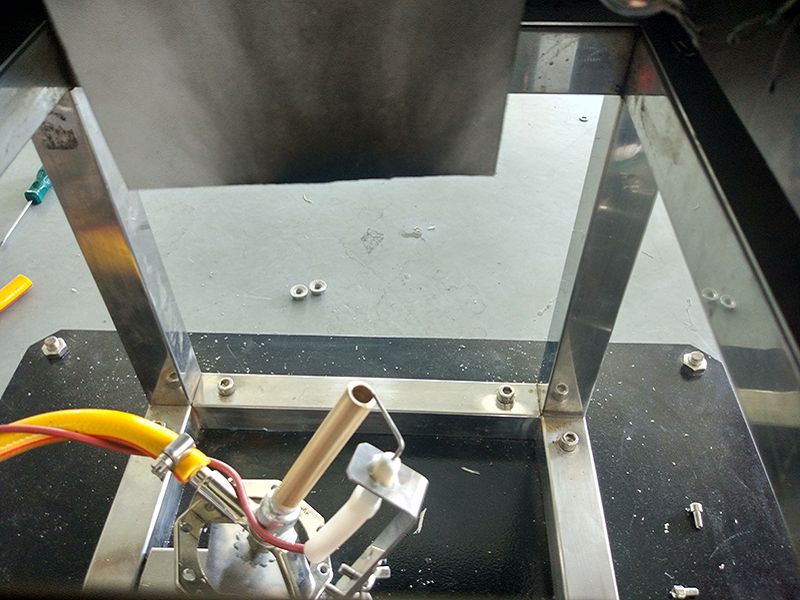

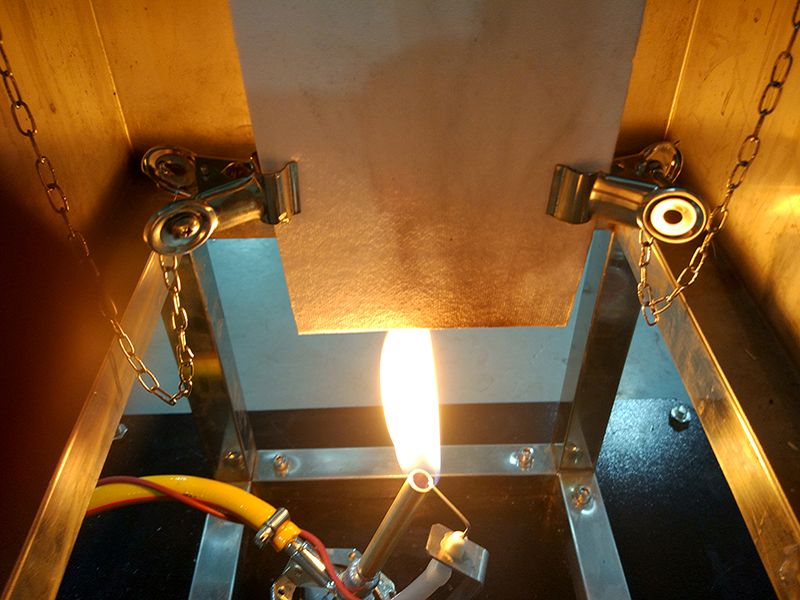

- Imported Bunsen burner from the United States meeting ASTM D 5025.
- Imported Bunsen burner positioned at a 25-degree angle.
- Test time can be set.
- Automatic ignition and automatic extinguishing modes.
- Needle valve controls flame height.
- Timer range: 0 to 99 s.
- Burner working pressure: 17.5 kPa +/- 2.0 kPa.
- Gas flow during operation: 113 L/hr +/- 3 L/hr.
- Flame height: 280 +/- 12 mm.
- Power supply: 220 V, 50 Hz, 110 W.
Specifications
|
Parameter |
Value |
|
Model |
TTech-NFPA701-2 |
|
Overall Dimensions |
305 x 305 x 2420 mm |
|
Burner Diameter |
9.5 mm +1.5/-0 mm |
|
Burner Length |
100 +/- 10 mm |
|
Weight |
Approx. 110 kg |
|
Flowmeter Range |
0 to 66 cc/min |
|
Timer Range |
0 to 99 s |
|
Burner Working Pressure |
17.5 kPa +/- 2.0 kPa |
|
Gas Flow During Operation |
113 L/hr +/- 3 L/hr |
|
Flame Height |
280 +/- 12 mm |
|
Power Supply |
220 V, 50 Hz, 110 W |
