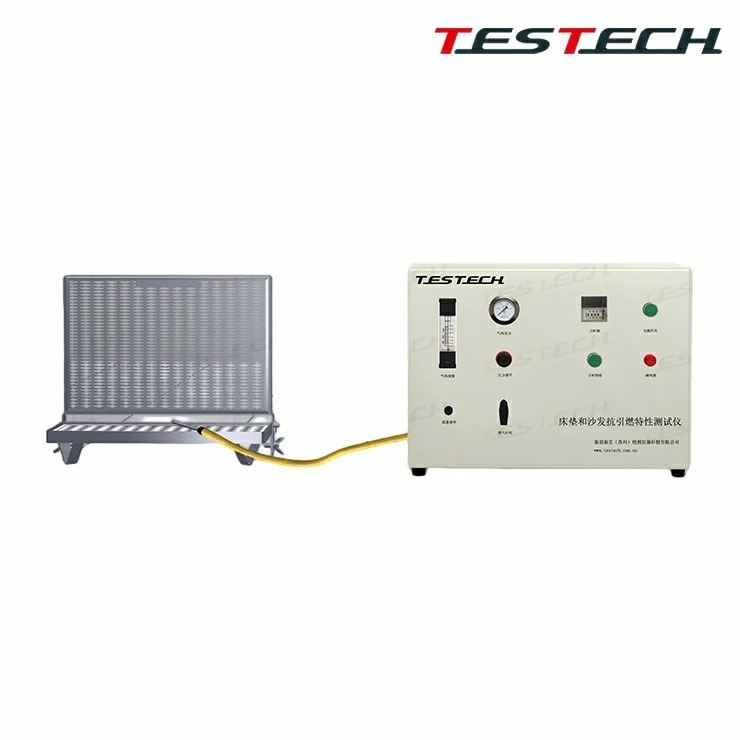

Anti-igniting Test Machine

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of anti-igniting test machine in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The TESTech anti-igniting test machine is designed and manufactured according to GB/T 17927-2011, Evaluation of the anti-ignition characteristics of mattresses and sofas. The equipment simulates cigarettes and match-like flame sources as ignition sources for anti-ignition testing of upholstered furniture.

This equipment is suitable for testing and evaluating the anti-ignition characteristics of mattresses, sofas, and other upholstered furniture used in public places, as well as upholstered furniture components.

• Combustion chamber dimensions: 3000 mm x 3000 mm x 2700 mm.
• The chamber is made of fire-resistant color steel rock wool panels.
• One side of the chamber includes a ventilation opening and an air exchange fan, with external smoke exhaust duct connection.
• One side of the chamber includes a sealed glass observation window for convenient external observation.
• Enlarged chamber door for easy loading and unloading of mattresses and sofas.
• Explosion-proof lighting tube is installed inside the chamber for illumination.
• Specimen support tray is made of stainless steel, corrosion-resistant, size 2200 mm x 2000 mm x 100 mm.
• The support tray can collect fire extinguishing water and combustion residues and includes a drainage outlet to prevent contamination of the chamber floor.
• Stainless steel support frame for the tray, height 30 mm.
• Specimen support dimensions: backrest frame 450 mm x 300 mm; seat frame 450 mm x 150 mm; frames can be hinged into a right angle.
• Optional specimen support No. 1: backrest frame 450 mm x 450 mm; seat frame 450 mm x 300 mm.

• Independent gas control cabinet.
• Optional stainless steel cooling water tank with built-in stainless steel gas tube to maintain gas temperature at 20 C for more accurate gas flow.
• Imported gas flow meter provides accurate display of gas flow rate at 42 +/- 2 mL/min.
• Imported needle valve precisely controls gas flow.
• Burner made of stainless steel with outer diameter 8 mm +/- 0.1 mm, inner diameter 6.5 mm +/- 0.1 mm, length 200 +/- 5 mm.
• Burner angle can be adjusted horizontally and vertically.
• Gas outlet pressure: 2.8 kPa.
• Timer accuracy: 1 s.
• The test should be carried out in an ambient temperature of 10.0 C to 30.0 C and relative humidity of 15.0% to 80%.
