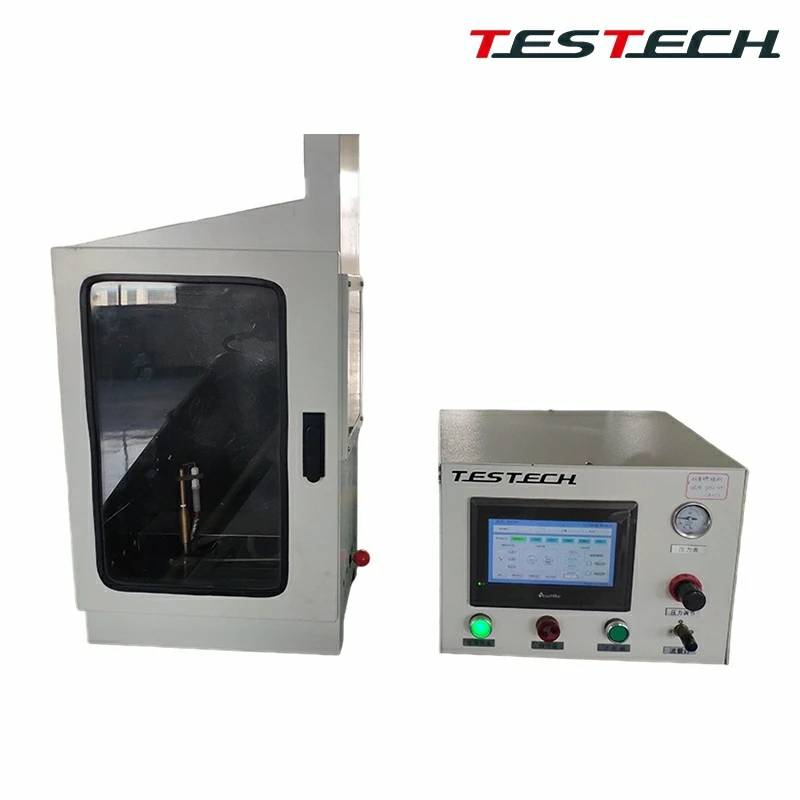

45° Flammability Tester Damage Area and Ignition Count

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of 45° flammability tester damage area and ignition count in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

This tester is designed and manufactured according to the latest GB/T 14645 standard. It is suitable for textile fabrics burning at a 45 degree angle to determine damage area and damage length, or to determine the number of flame contacts when the specimen melts thermally to a specified length.

It can also be used to evaluate whether refractory materials comply with the relevant fire-resistance execution standards according to the burning method, and to measure the afterglow and complete burning characteristics of specimens mounted at a 45 degree angle.

• Paint-coated metal cabinet with attractive appearance and corrosion resistance.
• Heat-resistant glass door for easy observation of internal test status.
• Internal fixtures made of stainless steel.
• Power switch for connecting or disconnecting power supply.
• Start switch for initiating the test.
• Six ventilation holes on the cabinet top and cabinet side.
• Different specimen clamps are required for different tests.
• Imported flow control valve for precise flame height adjustment.
• Imported brand pressure gauge and pressure regulating valve.

• Needle-valve rotameter used to adjust flame height; flame height: 45 +/- 2 mm.
• Complete burning time: counter displays afterglow time, resolution 0.1 s.
• Afterglow time: counter displays complete burning time, resolution 0.1 s.
• Flame spread time is used to set the specimen ignition period.
• Reset switch for setting the counter to zero.
• Temperature display range and accuracy: 0 to 90 +/- 1 C.
• Imported pressure gauge and pressure regulating valve display gas pressure.
• Complete-burning stop switch used to stop afterglow timing.
• Afterglow stop switch used to stop complete burning timing.
• PLC plus touch-screen control system for more automated testing.
• Planimeter is optional.

• Specimen holder inside the chamber positioned at 45 degrees.
• Timer accuracy 0.1 s with automatic timing.
• Counter automatically records ignition count.
• Specimen holder formed by 0.5 mm rigid stainless steel wire into a spiral coil with inner diameter of 10 mm.
• Gas burner has no air inlet and can use butane or propane gas; gas outlet 0.2 mm and burner tip 6.4 mm.
• Gas flow range: 0 to 1000 mL/min.
• Electronic ignition with automatic timing, 0.1 s resolution, and timing reminder function.
• PLC plus touch-screen control system for more automated testing.
