TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of medical face mask flammability tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Product Overview

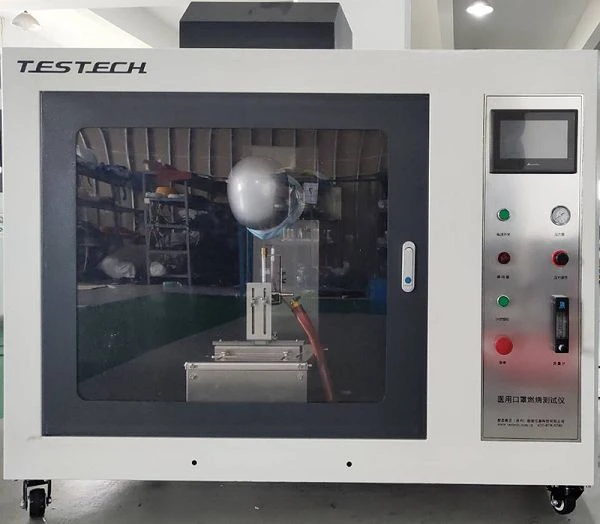

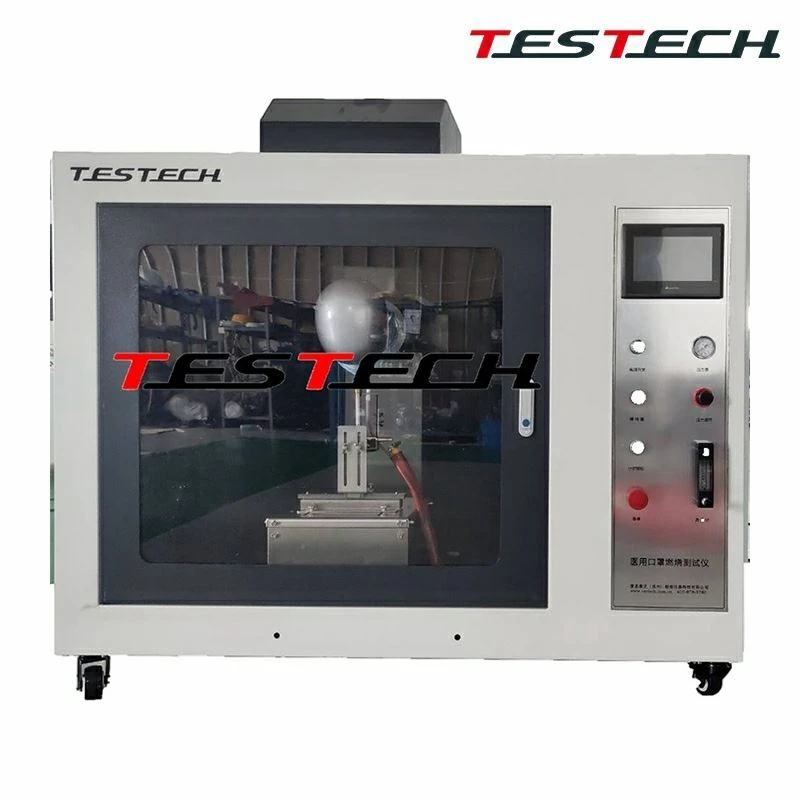

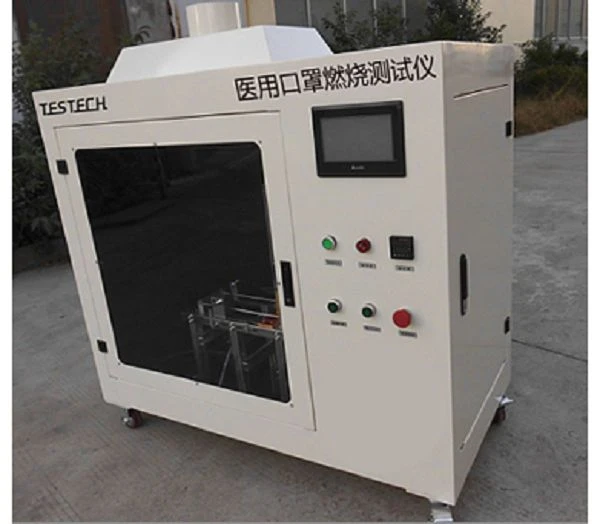

The TESTech medical face mask flammability tester is designed and manufactured according to the national standard GB 19083-2010. The instrument tests mask flammability performance by moving a headform wearing a mask at a specified linear speed into contact with a flame. It is a dedicated testing instrument for the flame-retardant performance of medical masks.
Main Features
- PLC plus touch-screen control system makes the test more convenient, easy to operate, and visualized.
- The mask fixture uses a metal human headform to realistically simulate actual mask wearing conditions.
- Burner height is adjustable.
- Burner is automatically positioned with timed control.
- Flame application time and afterflame time are automatically recorded and digitally displayed.
- Equipped with flame temperature measurement probe and flame temperature display.
- Automatic control system with automatic ignition.
- Burner is equipped with an interface for propane, LPG, or other combustible gases.
- Automatic timing and automatic storage of test data, making report retrieval easy.
Technical Specifications
|
Parameter |
Value |
|
Model |
TTech-GB19083 |
|
Headform Linear Speed |
60 +/- 5 mm/s |
|
Flame Height |
Adjustable to 40 +/- 4 mm |
|
Flame Temperature Measurement |
Equipped with thermocouple probe |
|
Flame Temperature at 20 +/- 2 mm Above Burner |
800 +/- 50 C |
|
Distance from Burner Top to Lowest Mask Point |
20 +/- 2 mm |
|
Burner Height Adjustment Range |
30 mm |
|
Headform Material |
Metal headform, wall thickness 2 to 3 mm, flame resistant |
|
Afterflame and Smoldering Timer |
0 to 9999.9 s, accuracy +/-0.1 s |
|
Power Supply |
AC 220V, 50Hz, 50W |
|
Weight |
Approx. 30 kg |
