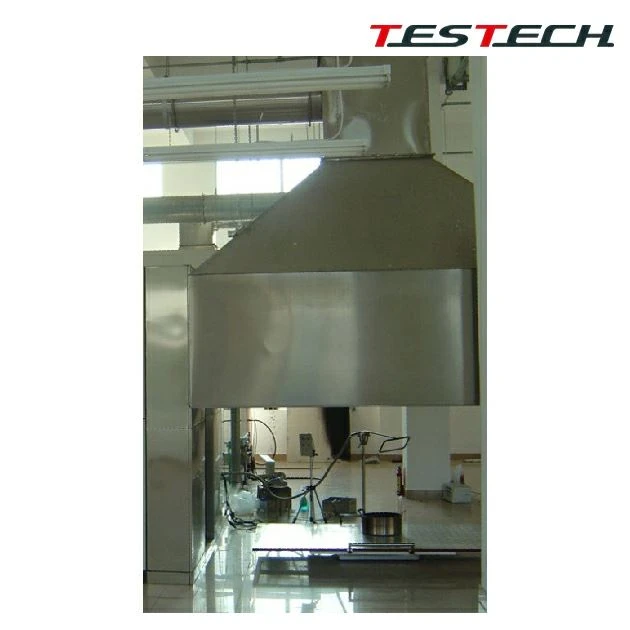

Furniture Large-Scale Calorimeter

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of furniture large-scale calorimeter in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The TESTech furniture large-scale calorimeter is developed according to Appendix B and C of GB/T 20286-2006. The equipment can measure the combustion performance of upholstered furniture, furniture components, and furniture exposed to open flame ignition sources.

It also meets the relevant test requirements of GA 111-1995, ISO 9705-2, GB/T 27904-2011, and the test section of GB/T 25207-2010, Fire test method for full-scale room for surface products. The full-scale room section is optional.

The equipment consists of an ignition source, conical collector, smoke exhaust duct, fan, weighing platform, and measuring devices. The test system includes gas collection and analysis, gas control, weighing measurement, and smoke density measurement systems.

Temperature sensors, gas flow meters, gas sampling probes, and multi-stage filtered sampling lines are built into the duct to help ensure long service life of the analytical instruments. The Windows-based software control system can automatically acquire, analyze, and record data, and calculate heat release rate, mass loss rate, smoke density, and other related parameters, while providing detailed test reports and data printing interfaces.

• Paramagnetic oxygen analyzer 0 to 25%, accuracy not less than +/-0.05%, response time not more than 3 s.
• CO2 analysis resolution +/-0.1%, range 0 to 10%.
• CO analysis resolution +/-0.02%, range 0 to 1%.
• Imported heat flux sensor accuracy +/-2%, range 120 kW/m2, repeatability error 0.5%.
• Three-stage smoke dust filtration system with filtration precision 0.2 um to ensure long analyzer service life.
• Gas collection system uses a compressor-type condenser with gas sampling temperature controlled at 4 C +/-1 C for more accurate analysis.
• Smoke exhaust velocity control uses imported capacitive differential pressure transmitter 0 to 2000 Pa, with precise control through computer calculation.
• Weighing system uses imported C3 grade load cell; weighing data is linearly acquired and automatically recorded and stored.
• Gas sampling system uses a diaphragm sampling pump with displacement 10 L/min to 50 L/min.
• Smoke density system uses white light of 2900 +/-100 K color temperature and photometer measurement; detector chromaticity standard function accuracy not less than +/-5%.

• Touch LCD display and PLC intelligent control system with data printing interface.
• Paramagnetic oxygen analyzer with O2 range 0 to 25%, linear deviation less than 0.5% full scale, repeatability less than 50 ppm O2, and analyzer response time T90 less than 3.5 s.
• Infrared CO2 analyzer with range 0 to 10%, linear deviation less than or equal to 1% full scale, repeatability less than or equal to 0.5% full scale, and response time T90 less than 2.5 s.
• Infrared CO analyzer with range 0 to 1%, linear deviation less than or equal to 1% full scale, repeatability less than or equal to 0.5% full scale, and response time T90 less than 2.5 s.
• Incandescent light source with color temperature 2900 +/-100 and photometer for smoke concentration-time curve measurement.
• Compressor-type condenser removes moisture, controls temperature accurately, and includes temperature alarm.
• Sampling probe made of inert material with dense small holes for detecting oxygen, CO, and CO2 concentration.
• Bi-directional probe and imported differential pressure transmitter accurately measure gas flow velocity.
• White light smoke concentration measurement system with detector chromaticity standard function accuracy not less than +/-5%.
• 0.2 um multi-stage smoke dust filtration system plus gas desiccant and CO2 absorbent.
• Condenser controls sampling temperature at 4 C +/-1 C.
• Stainless steel smoke hood, 3 m x 3 m, ensuring no smoke leakage.
• Smoke exhaust capacity not less than 3.5 m3/s, with adjustable fan speed and gas flow meter accuracy not less than +/-5%, response time not more than 1 s.
• Windows-based computer control system with automatic data storage, automatic calculation, report retrieval, and printing.

• Square igniter dimensions: (250 mm +/-10 mm) x (250 mm +/-10 mm); stainless steel tube thickness 0.89 mm +/-0.05 mm.
• Igniter position adjustable; distance to vertical cushion 51 mm +/-3 mm and to horizontal cushion 25 mm +/-3 mm.
• Independent movable timing display console.
• Automatic ignition system and automatic timing.
• Integrated design of combustion system, weighing table, and sample rack for more stable testing and measurement.
• Firefighting drainage system arranged under the weighing table.
• Automatic gas flow setting and gas emergency shutoff device.
• Each data acquisition and data processing cycle not more than 5 s.
• Test report data include oxygen concentration, carbon monoxide concentration, carbon dioxide concentration, temperature, smoke density, heat release rate, mass loss rate, etc.

• Square sandbox igniter dimensions: 170 mm x 170 mm x 145 mm; stainless steel thickness 1 mm.
• Weighing table uses imported load cell, anti-eccentric weighing design, and thermal insulation design to prevent drift.
• Gas valve and igniter are automatically controlled to ensure ignition starts when the gas valve opens.
• Gas supply system includes liquid propane cylinder, pressure reducer, stabilizer, measuring device, and gas pipeline.
• Gas emergency shutoff device.
• Imported C3 grade load cell accurately measures mass loss rate.
• Waterproof design of weighing system prevents damage during firefighting extinguishing.
• Propane sandbox burner equipped with gas emergency shutoff device.
• Integrated design of combustion system, weighing table, and sample rack for more stable testing and measurement.
• Test report data include oxygen concentration, carbon monoxide concentration, carbon dioxide concentration, temperature, smoke density, heat release rate, mass loss rate, etc.
• Real-time calculation, analysis, and display of process parameters including HRR, SPR, O2 consumption, CO2 generation, CO generation, mass loss, radiant heat, wind speed, and total heat release.
• Optical system calibration uses one-key 5-level calibration (0%, 25%, 50%, 79%, 100%) and automatically generates calibration reports.
• Calibration history records can be queried.
• Powerful report module supports preview, editing, and report generation.
