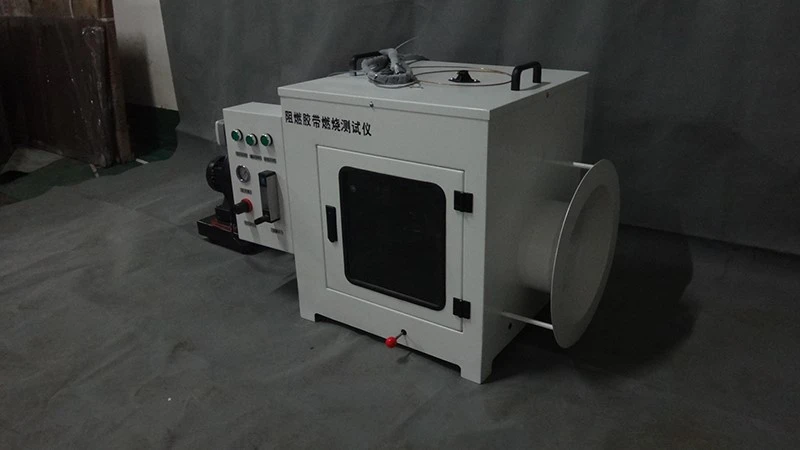

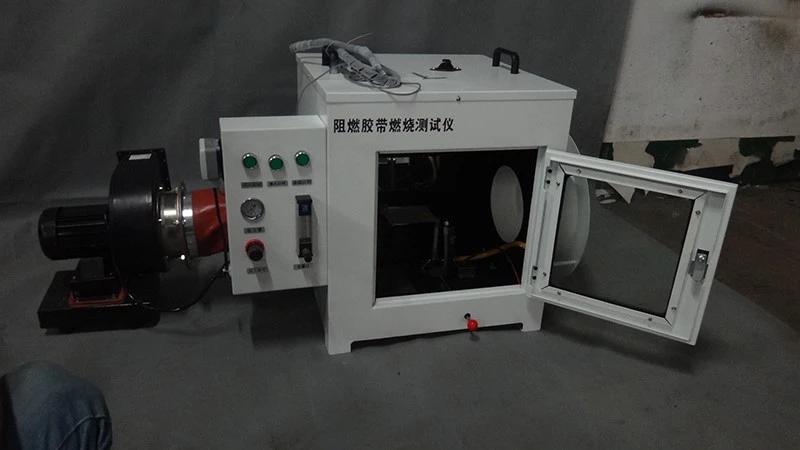

Adhesive Tape Flammability Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of adhesive tape flammability tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

This equipment is designed and developed according to ASTP 5007-2006. It shares the same control system with the alcohol lamp combustion tester and is additionally equipped with a gas control system and gas piping to save cost for the customer to the greatest extent possible.

• Cabinet dimensions: 535 mm x 535 mm x 535 mm.
• Painted cabinet with black-painted interior as required by the standard, corrosion-resistant.
• Air inlet and exhaust holes of 216 mm diameter on the left and right sides of the cabinet.
• The air inlet is equipped with a blower controlling wind speed from 0 to 300 ft/min within 8.5 s ±1 s.
• Large glass observation window for convenient observation of specimen burning state.
• Ergonomic industrial design with easy access to the specimen and burner pull rod.
• All fixtures made of SUS 304 stainless steel with integrated horizontal and vertical burning design for easy operation and space saving.
• SUS 304 stainless steel flame height gauge.
• Stainless steel ruler with 0.5 mm accuracy.
• Anemometer mounted at the top of the test chamber for blower speed calibration.
• The test chamber shares one complete testing system with the alcohol lamp combustion tester to reduce cost.
• Additional anemometer included.

• Imported American Bunsen burner with tube length 100 mm ±10 mm and inner diameter 11 mm.
• The burner fully complies with IEC 60695-11-4 burner requirements.
• The burner itself can regulate gas flow and air inlet amount.
• Imported flow meter and precision needle valve for accurate control of combustion gas flow.
• Imported high-precision pressure regulating valve and pressure gauge, range 0-0.4 MPa.

• Programmable controller with 7-inch touch screen for control, testing, calculation, and data display.
• High-voltage pulse electronic automatic ignition.
• Timing button works with PLC to automatically record and store burning time.
• No handheld stopwatch or manual timing required; the system automatically records test time and generates test reports.
• Test time and flame application time can be freely set on the touch screen to satisfy various test standards.
• Automatic timer records test time, stores it in the system, and allows report retrieval.
• Top exhaust fan removes combustion exhaust after the test. The customer provides the exhaust duct and gas supply.

• 304 stainless steel flame height gauge
• Two gas hose clamps
• Product manual
• Certificate of conformity
• Wooden transport package for safe freight transportation

• Voltage: 220V, 50/60Hz
• Socket equipped with grounding terminal
• Methane or propane gas supplied by the customer
