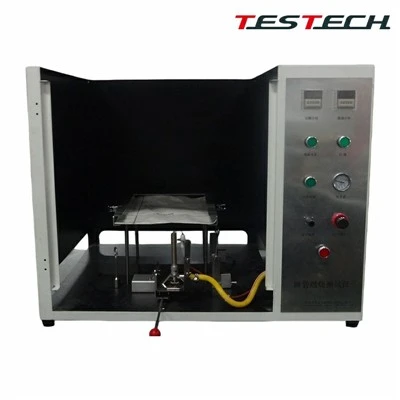

Carpet Flammability Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of carpet flammability tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

This tester is suitable for textile fabrics under a 45 degree test condition. The specimen is positioned at 45 degrees and ignited for 1 second. The time required for the specimen to burn upward with flame over a specified distance is used as the measure of the severity of the fabric burning behavior.

• Full stainless steel cabinet with attractive appearance, corrosion resistance, and easy cleaning.
• Lightweight structure for easy movement.
• Imported needle valve adjusts flame height to 16 mm.
• Imported brand pressure gauge and pressure regulating valve can display gas pressure.
• Heat-resistant glass door allows easy observation of the test status inside.
• Main power switch for power cutoff.
• Automatic timer with 0.1 s resolution and timing reminder function.
• Start switch initiates the test; afterflame time is automatically timed.
• Micro switch automatically records the end time of the test.
• Instrument control system provides more automated testing.
• Burning rate is automatically calculated and stored.
• Equipped with a standard custom brushing device made of stainless steel; the brush applies a pressure of 150 g to the specimen.
• Each brush cluster contains 20 bristles, diameter 0.41 mm, with 4 clusters per 25 mm, and bristle length of 19 mm.
• Custom stainless steel flame height gauge of 16 mm.
• 4-1/4 stainless steel injection needle.
