Sleeping Bags Flammability Test Machine

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of sleeping bags flammability test machine in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

This equipment is used to test the burning rate of products filled with natural fibers, chemical fibers, animal fibers, and feathers or down, or their mixtures, which are combined with various textile fabrics and linings and manufactured through quilting processes. It is suitable for products such as sleeping bags.

• CPAI-75 - Test method and evaluation standard for children's sleeping bags
• FZ/T 81005-2006 - Quilted products

• Paint-coated cabinet with transparent observation window.
• Combustion chamber dimensions: 850 mm x 650 mm x 750 mm.
• Electronic automatic ignition.
• Ignition time can be freely set from 0 to 99.99 seconds; the first mark time and second mark time are automatically recorded and digitally displayed.

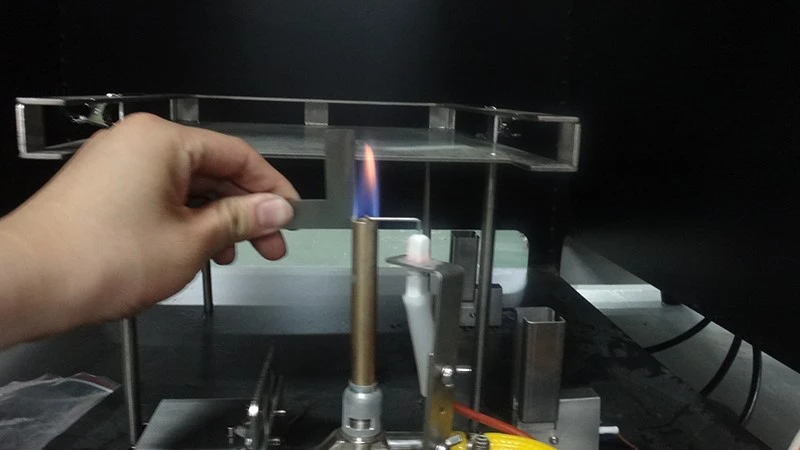

• Flame height is adjustable and can be equipped with a flame height measuring device.

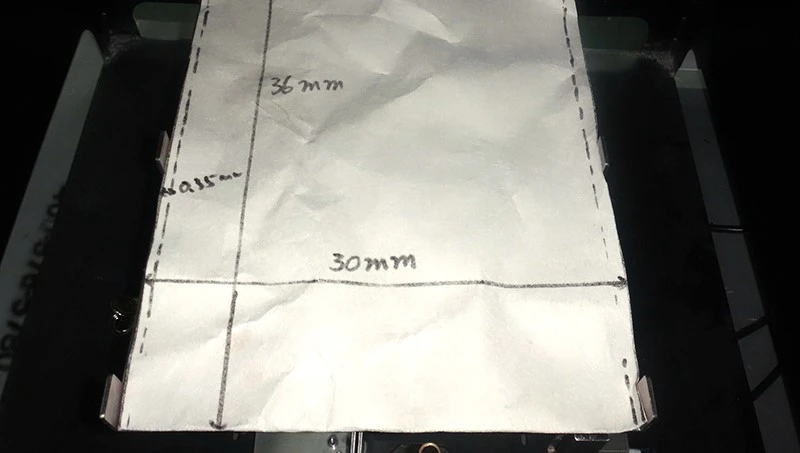

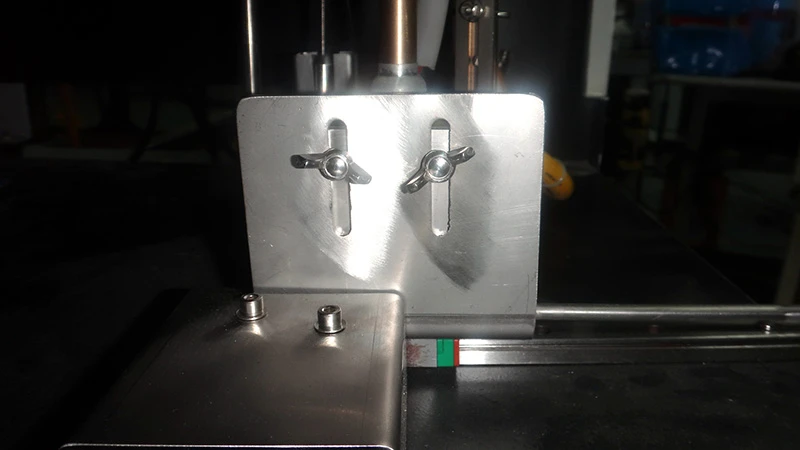

• Compression-plate specimen holding fixture.
• The burner is mounted on a sliding track for easy operation and automatic timing when moved to the test position.
• Imported needle valve precisely controls gas flow and adjusts flame height.
• Imported pressure gauge and pressure regulating valve are used to adjust gas pressure.
• Touch-screen intelligent control system with automatic ignition, automatic timing, and automatic storage of test reports.
• Printing function and printer are optional.
