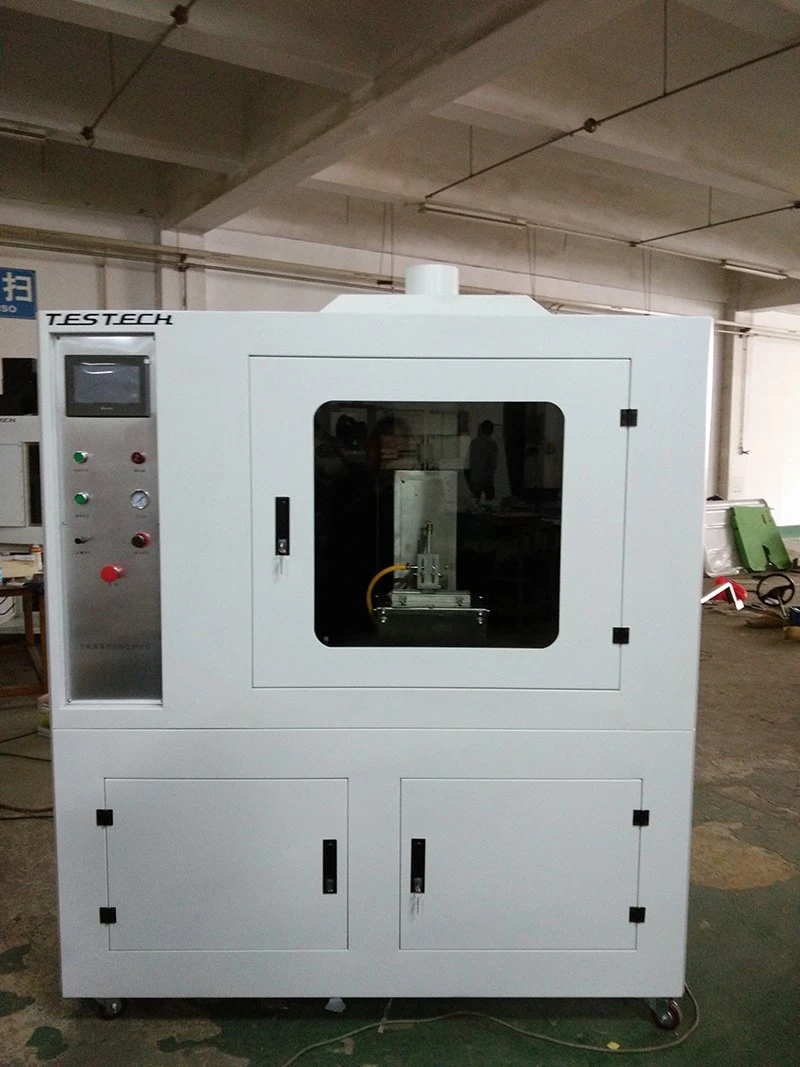

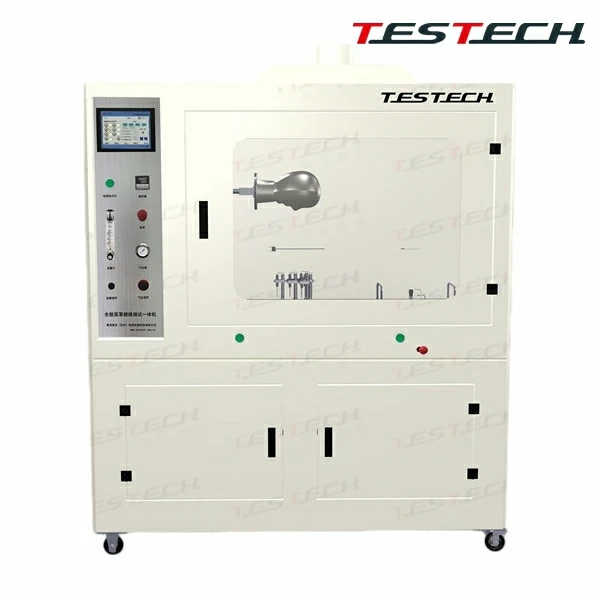

Full Face Masks Flame Resistance Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of full face masks flame resistance tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The TESTech integrated protective equipment tester is developed and manufactured fully in accordance with GBT16556-2007 and the latest GA 124-2013 standard requirements. It can satisfy flame resistance testing requirements for harnesses, harness straps, buckles, cylinder protective covers, and full face masks.

The instrument is an intelligent model with touch screen control. Different test procedures can be selected freely for different specimen types, and test results are automatically saved.

• Painted cabinet with attractive appearance.
• Integrated platform design combining full face mask and harness strap burning devices.
• All tooling made of stainless steel for corrosion resistance and appearance.
• Imported flow control valve for precise gas flow adjustment and flame height control at 40 mm +/-2 mm.
• Imported brand pressure gauge and pressure regulating valve.
• Imported needle valve to control gas flow supplied to the burner.
• PLC with touch screen intelligent control system for simple operation.
• Automatic timing and automatic recording and storage of heat-related data.
• Independent storage of various test reports with free retrieval.

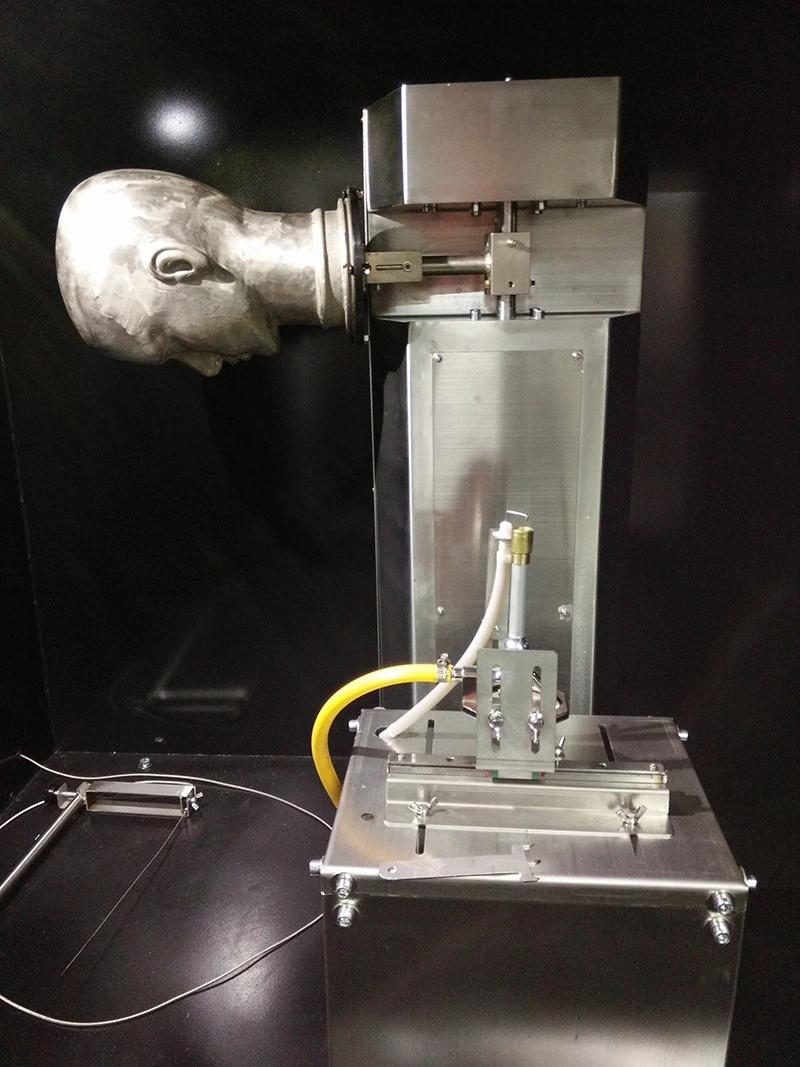

• Dedicated metal head form for combustion testing.
• Six imported burner nozzles for control of propane and air flow.
• Adjustable burner nozzle height, 250 mm from the outer specimen surface.
• K-type thermocouple positioned 250 mm from burner top to verify flame temperature of 950 +/-50 C.
• Flame center temperature 950 +/-50 C measured by precision thermocouple.
• Imported brand pressure gauge and regulating valve for burner gas pressure range 0-10 kPa.
• Equipped with head form rotating device.
• Automatic gas shutoff 5 seconds after test start.
• Automatic ignition and automatic extinguishing after 5 seconds of ignition time.

• Stainless steel protective shield.

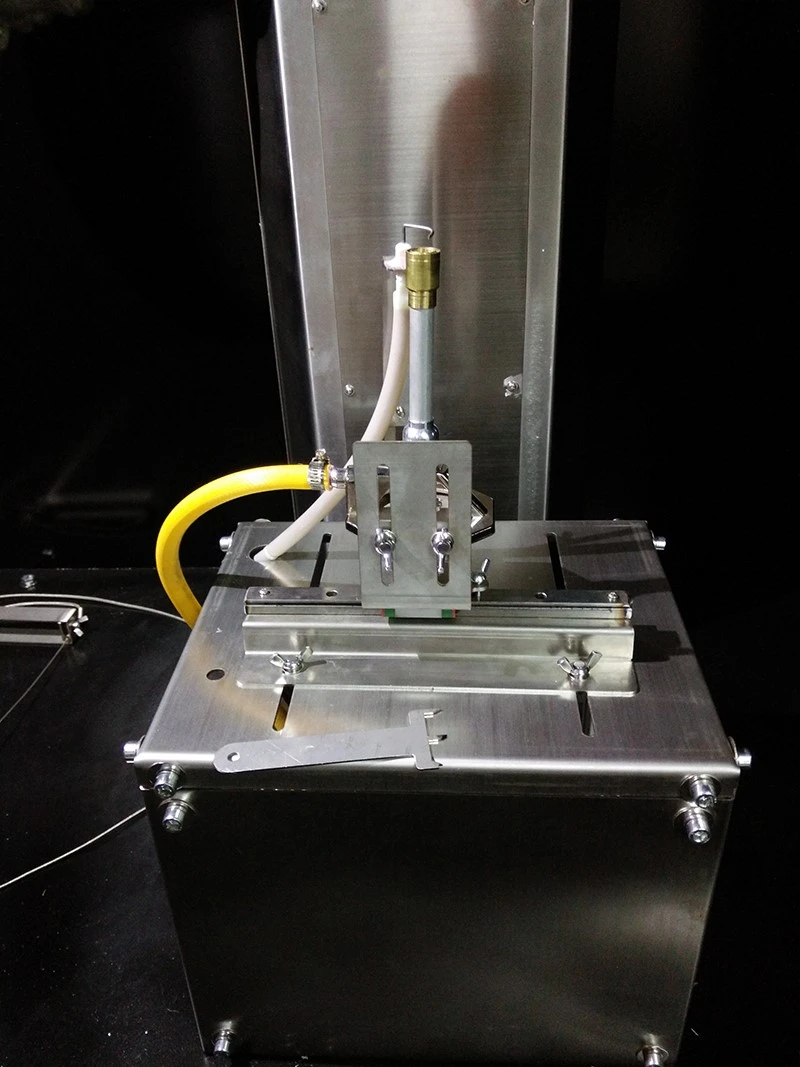

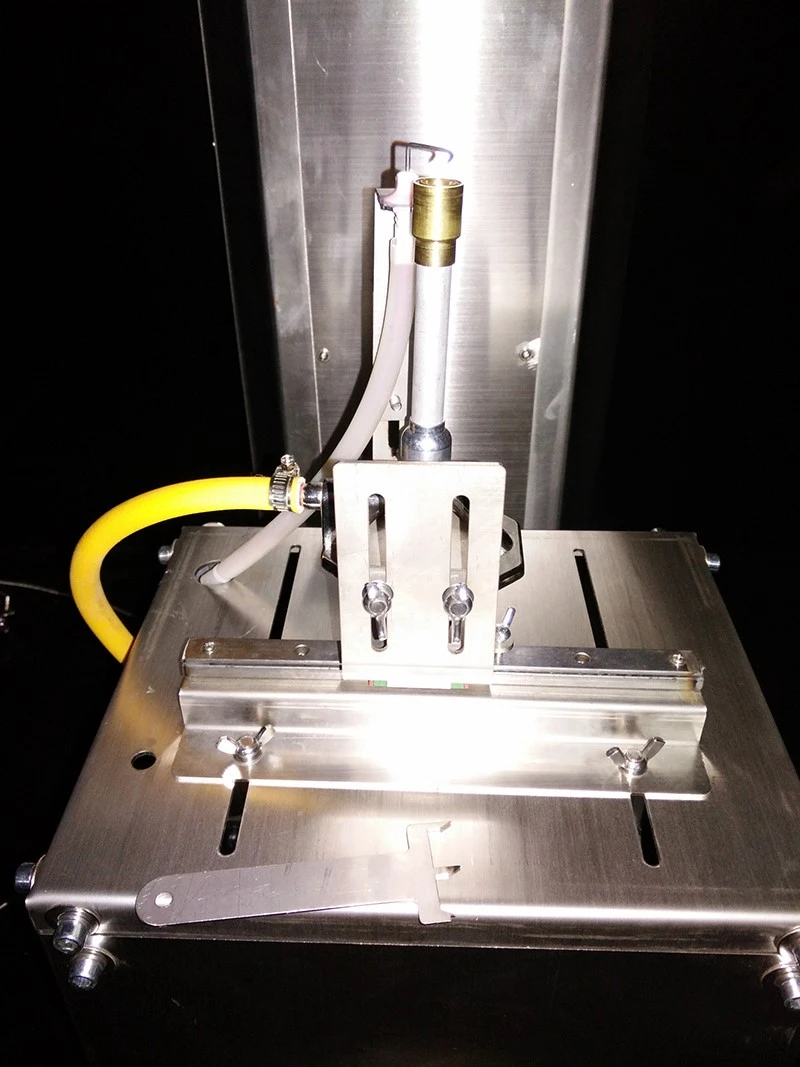

• Imported Bunsen burner with adjustable gas and air flow.
• Burner lifting device.
• Stainless steel specimen clamp.
• Automatic timing device.
• Flame height 40 mm, temperature at 20 mm above flame equal to 800 +/-50 C.
• Automatic ignition and automatic gas shutoff after 20 seconds.
