Carpet Flammability Tester Radiant Panel Method

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of carpet flammability tester radiant panel method in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The TESTech carpet flammability tester by methenamine tablet method is designed and manufactured according to GB/T 11049-2008. It also complies with the requirements of 16 CFR 1630-2009 and 16 CFR 1631-2009.

Under specified test conditions, the tester exposes a horizontally positioned specimen to a small ignition source, namely a methenamine tablet, and measures the damaged length and flame spread time after testing. It is suitable for carpets with various structural constructions and fiber compositions.

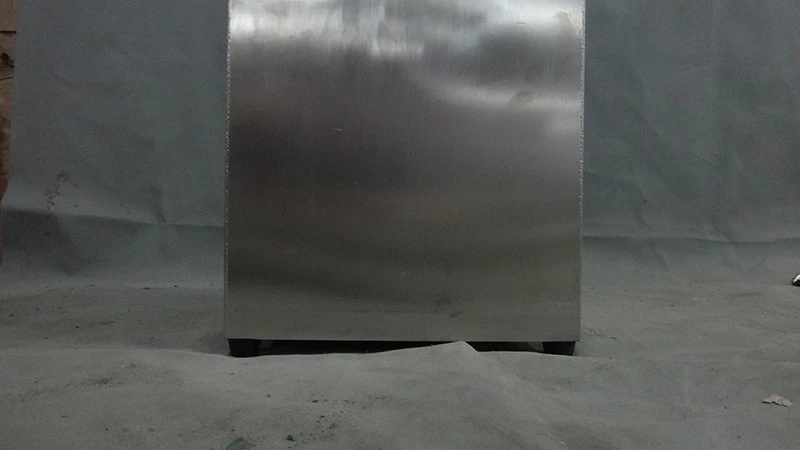

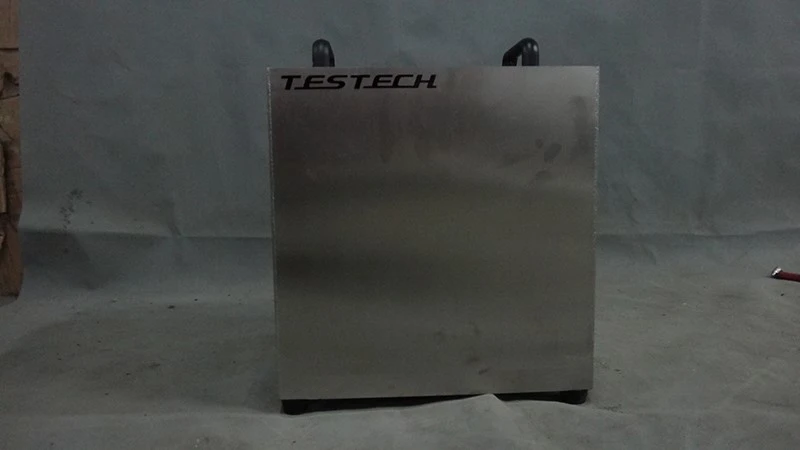

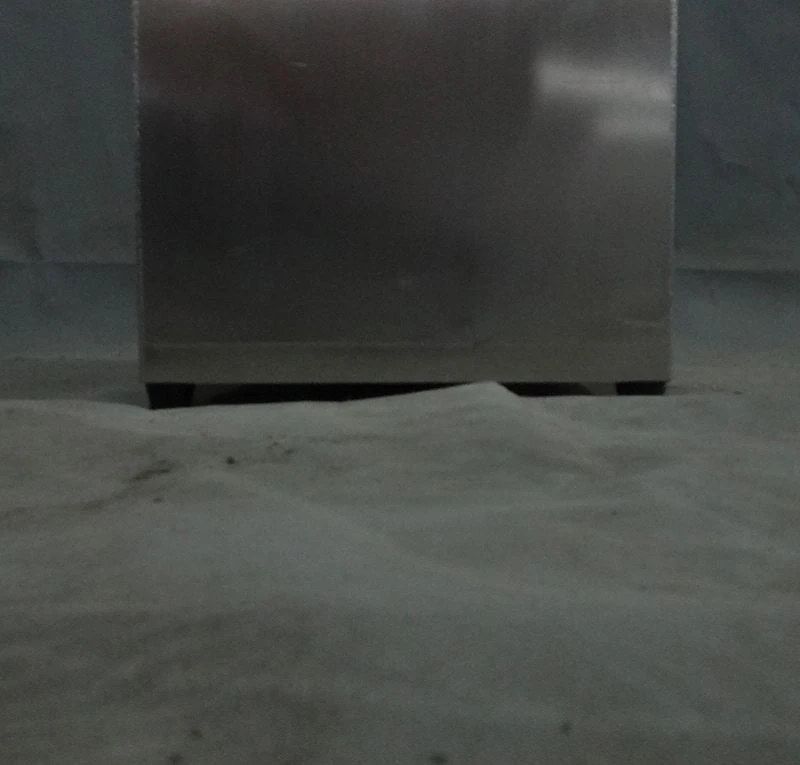

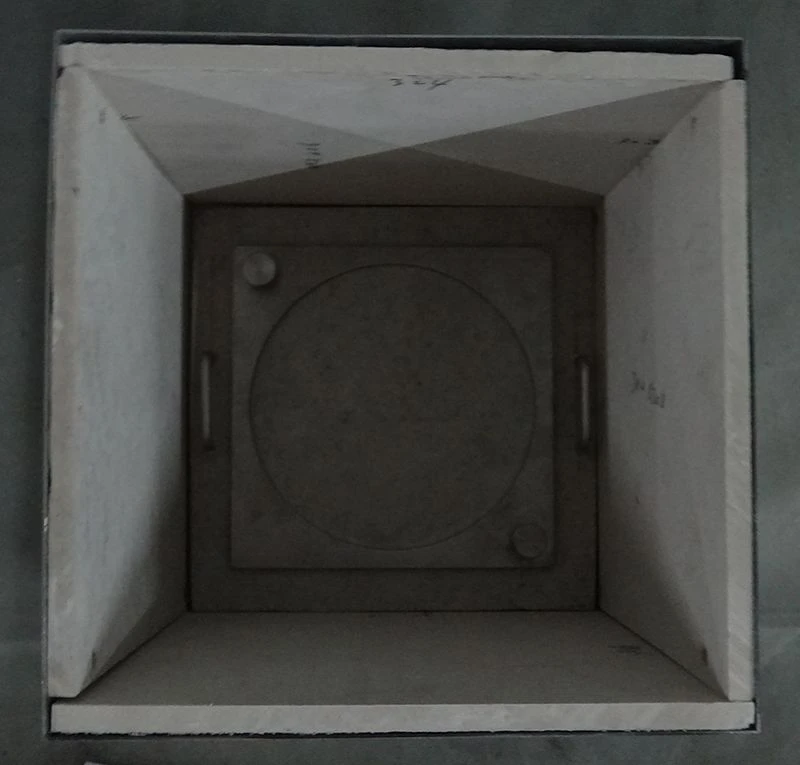

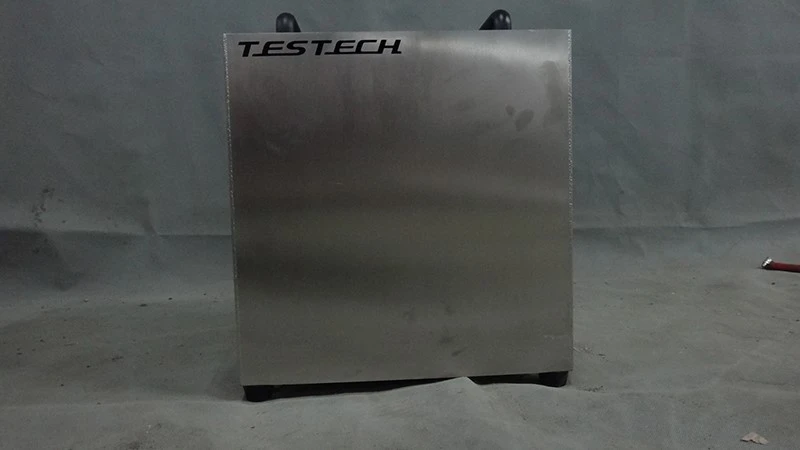

• Test chamber made of stainless steel; internal dimensions 304.8 mm x 304.8 mm x 304.8 mm (12 in x 12 in x 12 in).
• Chamber wall thickness: 6.35 mm (1/4 in).

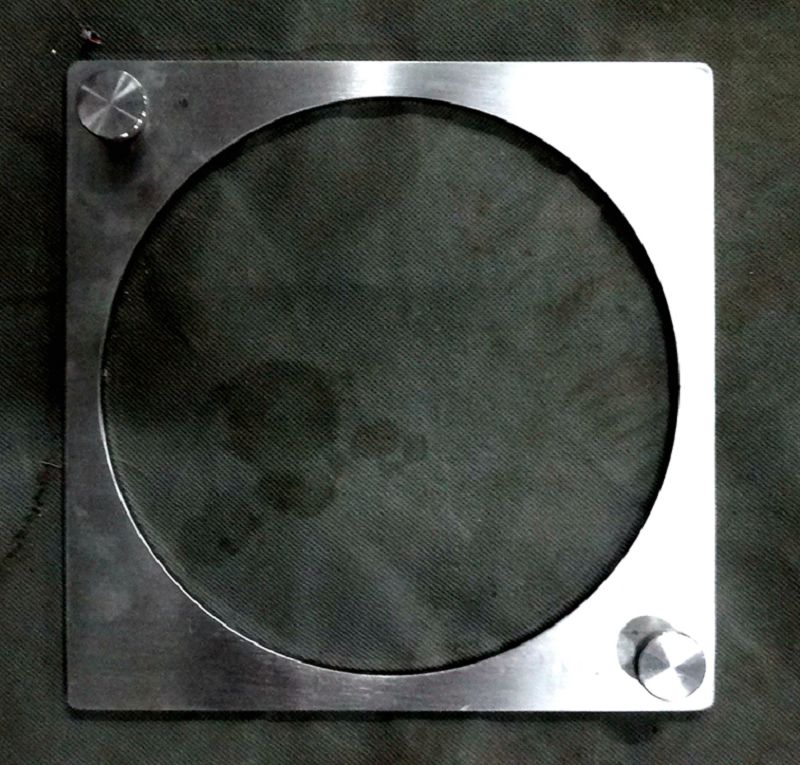

• Square metal plate made of stainless steel, 228.6 mm x 228.6 mm x 6.35 mm (9 in x 9 in x 1/4 in), with a central circular opening of 203.2 mm (8 in) diameter.
• Steel ruler with 1 mm graduation.
• Stopwatch with 1 s accuracy.
• Polyethylene gloves provided.
• Color-changing silica gel desiccant provided as specified by the standard.
• Igniter provided.
• Ventilation hood is optional.
• Specimen size: 228.6 mm x 228.6 mm (9 in x 9 in).

• Square metal plate: 230 mm x 230 mm x 6.5 mm, with a central circular opening of 205 mm diameter.
• Test chamber made of stainless steel with internal dimensions 300 mm x 300 mm x 300 mm.
• Ventilation hood with a volume of 2 m3, front observation glass window, and top exhaust fan.
