Melting Materials Dripping Test Machine

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of melting materials dripping test machine in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

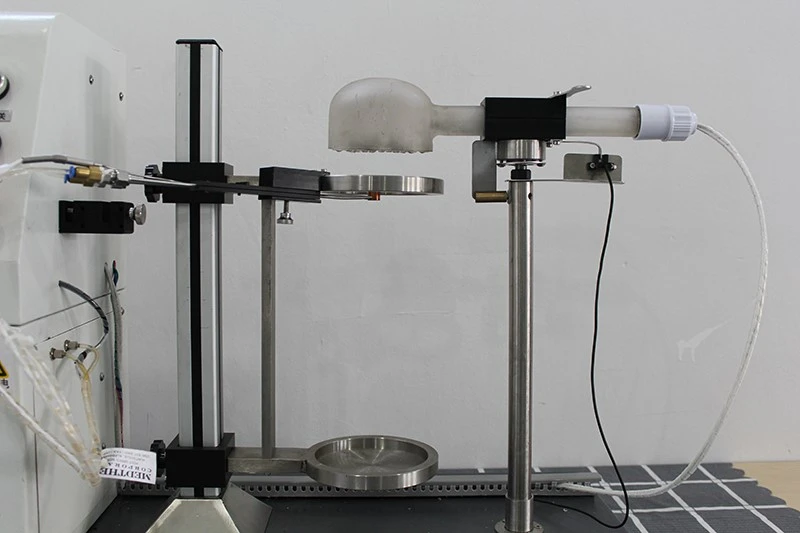

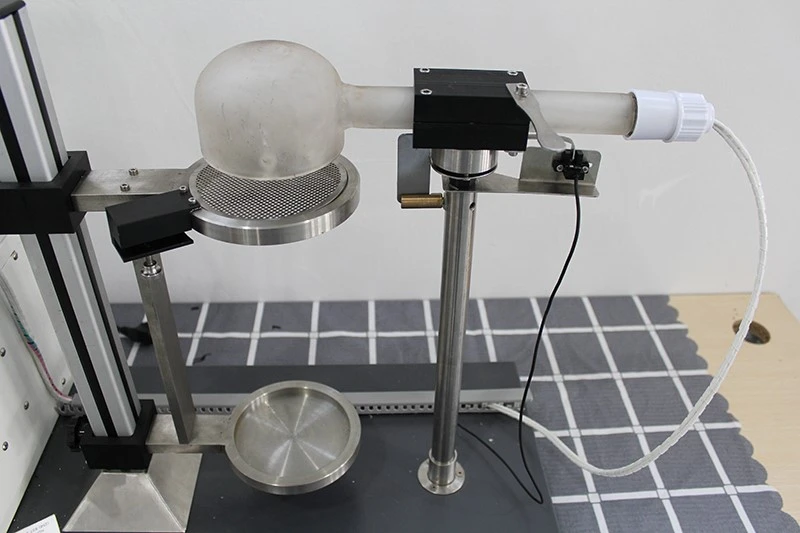

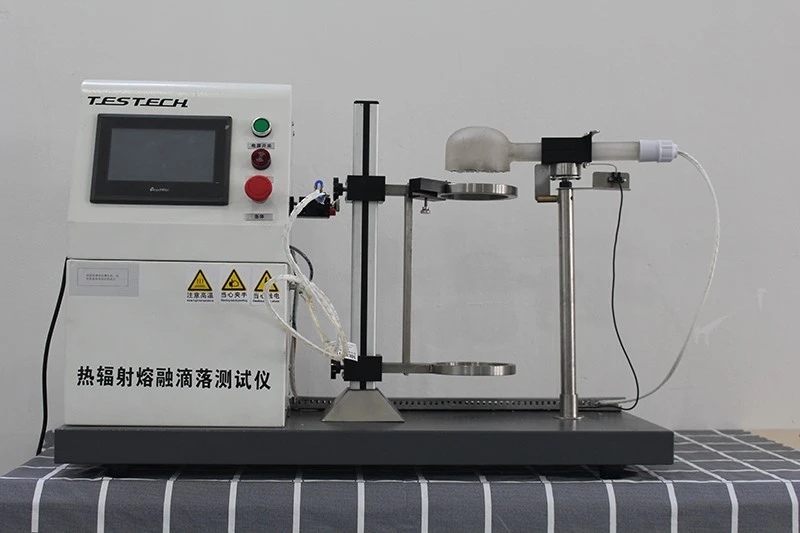

This TESTECH thermal radiation melting drip tester meets the technical indicators and requirements specified in NF P92-505, EU 95/28/EC, and ECE R118 Annex 7.

According to NF P92-505, this test is an additional test for M-class building materials. It is suitable for evaluating melting drip behavior and combustion performance of thermoplastic materials under the influence of a principal heat source, including flexible and thin materials and cellulose insulation padding.

• All tooling made of stainless steel for good appearance and corrosion resistance.
• Radiation support can rotate through an angle greater than 90 degrees for convenient specimen installation.
• Specimen installation height is adjustable.
• Radiator heat flux 30 kW/m2, maximum up to 50 kW/m2.
• Electric radiator output power: 500 W.
• Radiant heat output is linearly adjustable, with automatic adjustment through power control.
• Radiation hood is a quartz glass hood with opening diameter 100 mm ±5 mm.
• Thermal radiation at 30 mm below the lower plane of the radiation hood is 3 W/cm3.

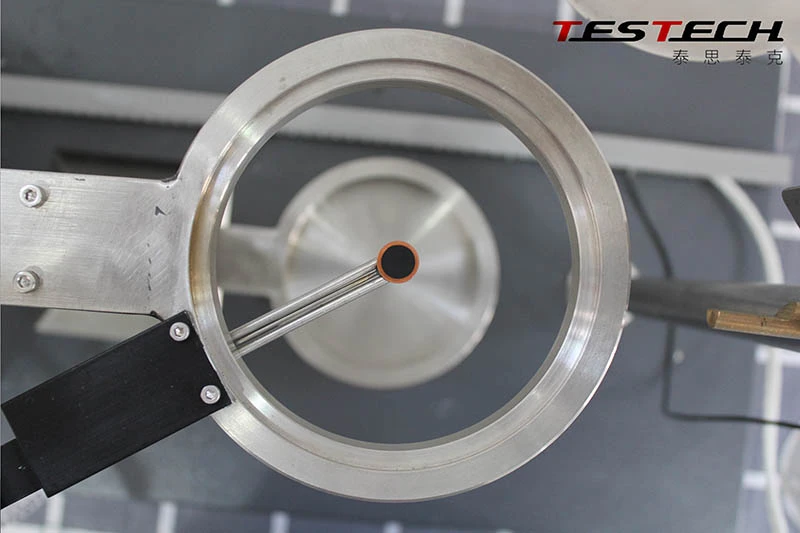

• Specimen support ring made of stainless steel with inner diameter 118 mm.
• Collection tray inner diameter 118 mm, depth 12 mm, filled with cotton inside.
• Radiation cone can move up and down.
• Automatic timing reminder when the specimen ignites.
• Imported thermopile heat flux meter with range 0 to 50 kW/m2.
