Control Cabinet
- Standard cabinet structure with display, analyzers, control panel, and other operating interfaces arranged in a rational and convenient layout.
- Modular integrated design inside the cabinet including flue-gas pretreatment and analysis system, as well as gas control system.
Gas Pretreatment
- Includes annular sampler, suction pump, particulate filter, cold trap, exhaust valve, moisture filter, and CO2 filter.
- Three-stage filtration system with filtration precision of 0.3 um.
- Refrigerated cold trap using compressor-based cooling system with controlled temperature of 0 to 5 C.
- Drying cylinder for removal of moisture and impurities.
- Flow controller for control of suction flow rate.
- German imported suction pump.
Gas Analysis System
- CO range: 0 to 2000 mg/m3, error 1 percent FS, repeatability less than 0.5 percent, response time less than 2.5 s.
- CO2 range: 0 to 100000 mg/m3, error 1 percent FS, repeatability less than 0.5 percent, response time less than 2.5 s.
- NOX range: 0 to 50 mg/m3, error 1 percent FS, repeatability less than 0.5 percent, response time less than 2.5 s.
User Operating System
- Dedicated control system for laboratory instruments with user-friendly interface, easy operation, and precise control.
- Functions include instrument status display, calibration and storage of calibration results, test data collection, required parameter calculation, standards-based result display, and averaging of multiple tests.
- Upper computer communicates with programmable controller through RS485 communication module for data transmission and action control.
- PID temperature control module linked to power adjustment module for constant-temperature control through the programmable controller.
- Operating software provides strong data interaction capabilities and is suitable for scientific research analysis.
- Modular software functions allow independent analysis of process curves for each test dataset.
- Raw test data can be revised by parameter settings to compare differences in results for the same specimen and assist in analysis of influencing factors.
- Test report supports switching analysis between full-size graphs and thumbnail graphs.
- Selectable output curves include CO, CO2, and NOX.
- Test results are accurate and reliable, with good repeatability and total error not exceeding ±2 percent.

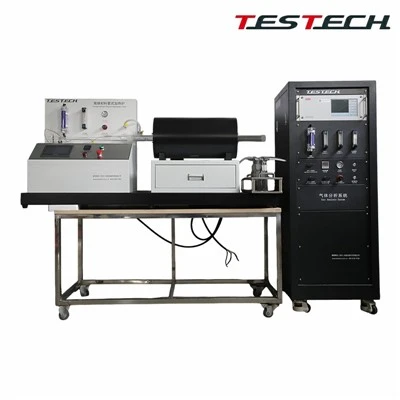

Computer Software Smoke Toxicity Analysis System
- System includes tube-furnace heating control with two temperature control modes, both using PID control for user selection.
- Over-temperature protection automatically cuts off heating when tube furnace temperature exceeds 1100 C to protect the furnace body.
- Control cabinet integrates sample-gas collection system and pretreatment system so that data analysis and toxicity testing software can work together for data processing.
- Computer is equipped with smoke-toxicity analysis calculation software.
- Supplied with a computer of a well-known brand.
Technical Specifications
|
Parameter |
Value |
|
Product Name |
Gas Analysis System |
|
Product Model |
Not provided |
|
CO Range |
0 to 2000 mg/m3 |
|
CO Error |
1 percent FS |
|
CO Repeatability |
<0.5 percent |
|
CO Response Time |
<2.5 s |
|
CO2 Range |
0 to 100000 mg/m3 |
|
CO2 Error |
1 percent FS |
|
CO2 Repeatability |
<0.5 percent |
|
CO2 Response Time |
<2.5 s |
|
NOX Range |
0 to 50 mg/m3 |
|
NOX Error |
1 percent FS |
|
NOX Repeatability |
<0.5 percent |
|
NOX Response Time |
<2.5 s |
|
Filtration Precision |
0.3 um |
|
Cold Trap Temperature |
0 to 5 C |
