TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of tag closed cup auto flash point analyzer in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

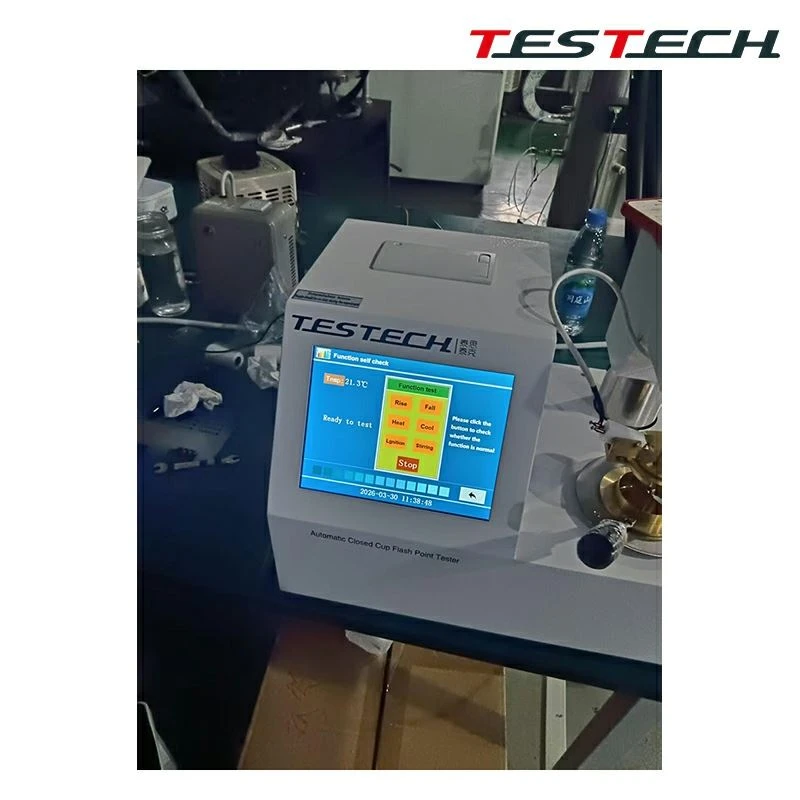

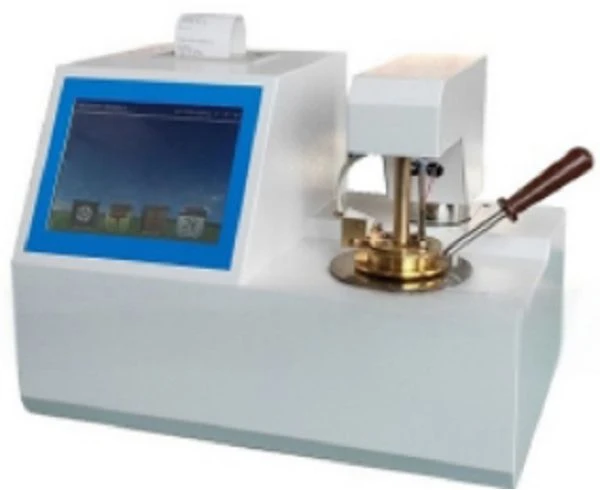

Product Introduction
This instrument complies with the requirements of GB/T 261-83, SH/T 0315, and the international standard ISO 2719-88. It uses microcomputer control technology, automatic electronic ignition without gas supply, and start-up self-check functions.
It features high measurement accuracy, good repeatability, stable and reliable performance, and simple operation. It is an ideal instrument for closed cup flash point testing in petroleum, chemical, electric power, environmental protection, railway, and scientific research departments.
Main Features
- Seven-inch color touch LCD screen with Chinese dialogue interface and menu-guided input.
- Adaptive PID control algorithm automatically adjusts the heating curve according to standard requirements.
- Built-in automatic atmospheric pressure detection chip and sensor for automatic pressure measurement, correction, and flash point value compensation.
- Stirring, ignition, detection, alarm, cooling, and printing are completed automatically.
- Safe gas-free platinum alloy electric heating wire ignition method with stable and reliable performance and high testing accuracy.
- Differential detection with automatic system deviation correction and automatic stop and alarm when temperature exceeds the limit.
- Powerful data storage capable of storing 300 results.
- USB interface for communication with notebook computer, compatible with Windows XP and Windows 7 for networked management.
- Multilingual display operation with upgradeable instrument program when national standards are revised.
- Complete experimental process automation including heating, lid opening, ignition, alarm, cooling, and printing.
- High-speed signal processor and high-precision analog-to-digital conversion circuit for stable performance and accurate testing.
- Built-in high-speed thermal micro printer with attractive and fast printing and offline printing capability.
Technical Parameters
|
Parameter |
Value |
|
Model |
TTech-GB261 |
|
Display Mode |
7-inch color touch screen |
|
Measurement Method |
Thermocouple differential detection |
|
Measurement Range |
Room temperature to 399 C |
|
Resolution |
0.1 C |
|
Repeatability |
National standard: ±1 C when flash point <104 C, ±2 C when flash point ≥104 C; International standard: ±1 C when flash point ≤110 C, ±2 C when flash point >110 C |
|
Printer |
High-speed thermal printer, 56 mm paper width |
|
Temperature Detection |
Imported platinum resistance (Pt100Ω) |
|
Ignition Method |
Gas-free electronic ignition |
|
Self-check Function |
Automatic instrument fault diagnosis |
|
Cooling Method |
Forced air cooling |
|
Power Consumption |
<550 W |
|
Operating Environment |
Temperature 10 C to 45 C, humidity 30 to 80 percent |
|
Power Supply |
AC 220V ±10 percent |
|
Dimensions |
450 x 380 x 290 mm |
|
Weight |
Approx. 15 kg |
Hot Tags: tag closed cup auto flash point analyzer, China tag closed cup auto flash point analyzer manufacturers, suppliers, factory
