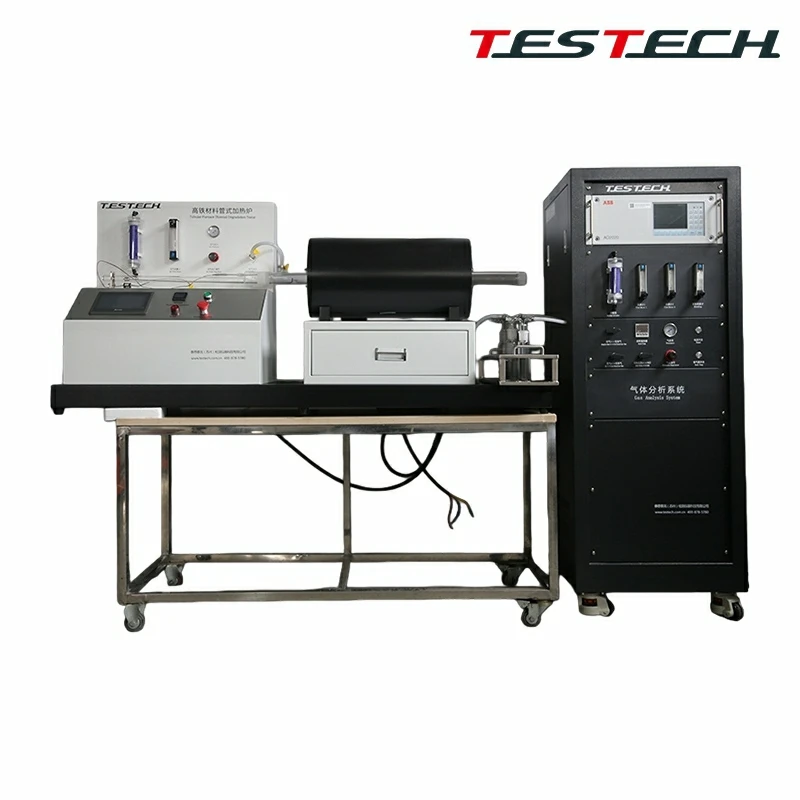

Tube Furnace Decomposition Systems

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of tube furnace decomposition systems in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

• Optimized structural design with rational layout, convenient operation, and attractive appearance.
• Control cabinet equipped with a large drawer for storing test-related accessories.
• All tooling made of stainless steel material.
• Tube furnace effective length 500 to 600 mm, inner diameter 40 to 60 mm, equipped with adjustable electric heating system.
• Equipped with imported brand thermocouple.
• Equipped with imported flowmeter for precise gas flow control.
• Combustion boat dimensions: length 45 to 100 mm, width 12 to 30 mm, depth 5 to 10 mm.
• Electronic temperature control in the control chamber for intelligent control of tube furnace temperature.
• Equipped with two gas collection bottles.
• Sample chamber size 1 liter.
• Air flow meter and all required silica fireproof pipelines to prevent corrosion by gases.
• Activated carbon for air filtration through the gas source filter.
• Silica gel for drying the air source.
• Tube arrangement allows users to insert samples into the furnace tube easily while protecting the pipeline from damage.
• Temperature alarm controller to control furnace temperature and prevent overheating.
• Drawer provided for storing accessories.
• Temperature display indicates the core temperature of the thermocouple inside the furnace.
