Locomotive Material Combustion Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of locomotive material combustion tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

With the rapid development of high-speed railways in China, the requirements for testing the combustion performance of materials and components used in railway rolling stock have become increasingly strict. At present, combustion testing for locomotive and vehicle materials mainly refers to the German standard DIN 54837.

This TESTECH locomotive material combustion tester is designed and manufactured according to DIN 54837 and uses a combustion chamber designed with reference to DIN 50050-2. It is used to determine the combustion characteristics of railway locomotive materials and fittings under the action of a wide-slot sleeve gas burner.

The equipment can determine specimen burn-out time, maximum flame height and occurrence time, afterflame and afterglow time, dripping combustion time, smoke diffusion curve and maximum value, and specimen damage length.

With reference to DIN 5510-2, it can also be used for flammability classification (S2 to S5), smoke characteristic classification (SR1 not achieved, SR1, SR2), and dripping characteristic classification (ST1, ST2).

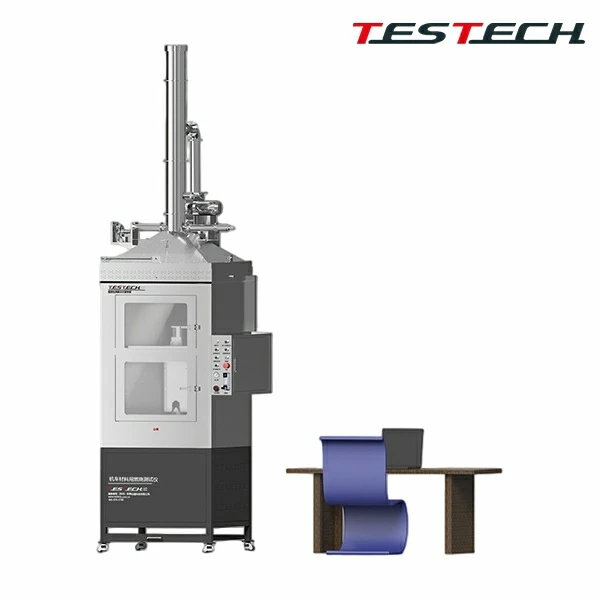

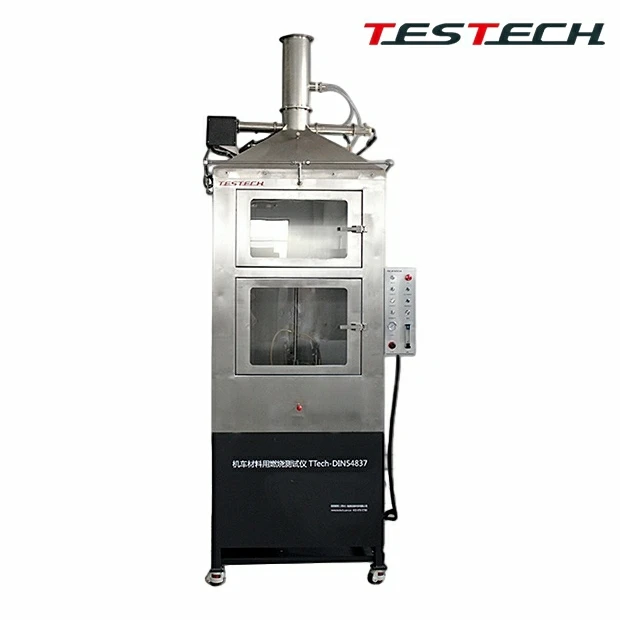

• Overall equipment size 800 x 800 x 3000 mm, consisting of base, combustion chamber, hood, and smoke duct.
• Base size 800 x 800 x 800 mm with electrostatic powder-coated sheet metal structure for corrosion resistance and good appearance.

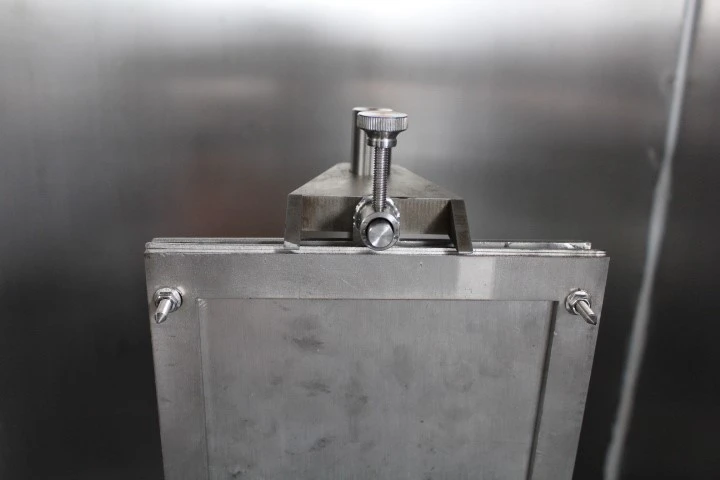

• Combustion chamber size 800 x 800 x 1350 mm with black interior finish and stainless steel tooling.
• Front double-door structure with sealed toughened-glass observation windows for convenient observation.
• Stainless steel square grille at the chamber bottom for uniform natural ventilation.

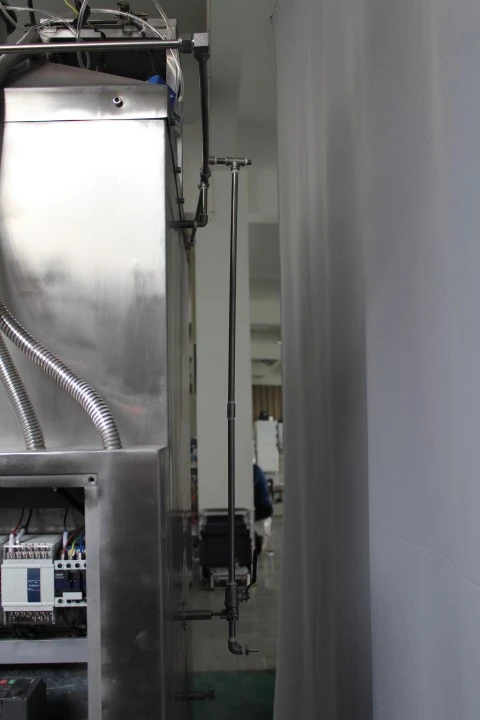

• Built-in extinguishing nozzle inside the chamber and external water supply connection.

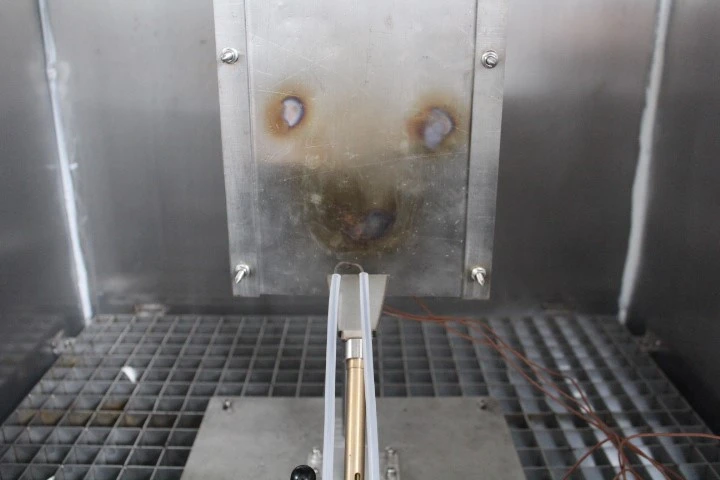

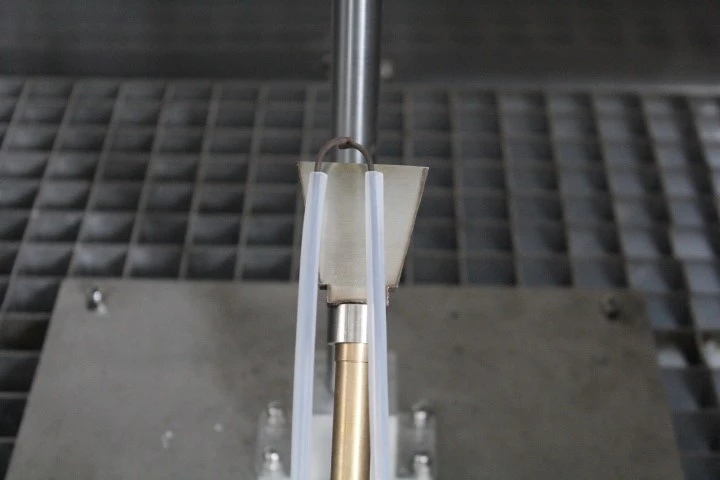

• Wide-slot cover gas burner compliant with DIN 50050-2.

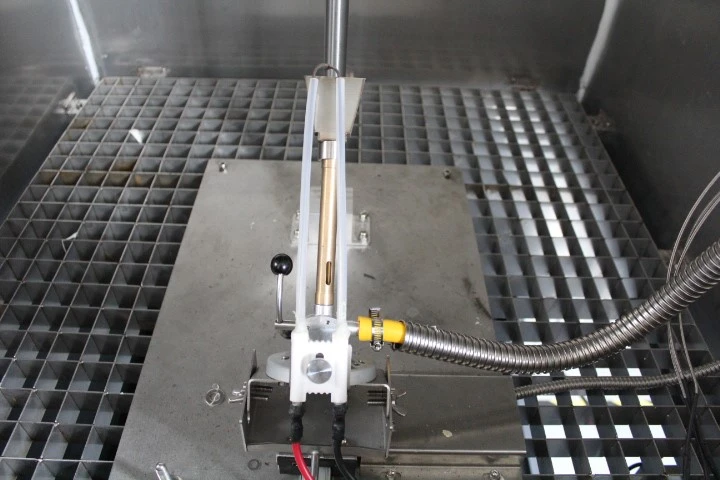

• Burner mounted on a linear slide base and controlled by an external straight handle.

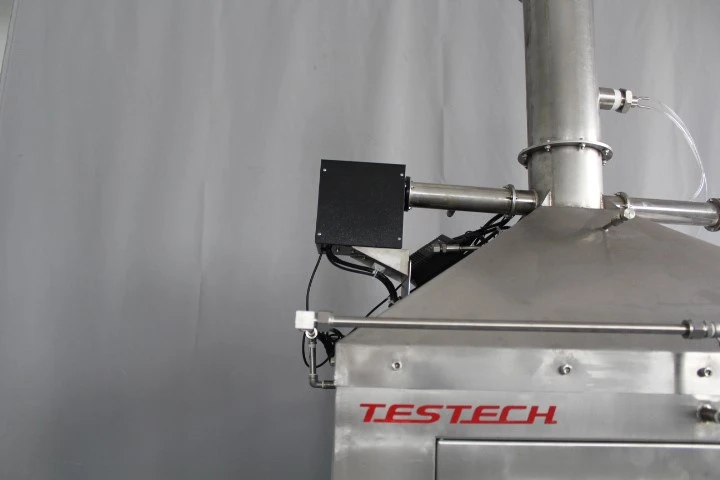

• Smoke duct diameter 150 mm in stainless steel construction.
• Smoke duct equipped with light transmission and detection system, air velocity measurement unit, and thermocouple for flue-gas temperature measurement.
• Imported gas flow meter for precise gas flow control.
• Imported pressure gauge and regulating valve to stabilize gas operating pressure at 69 to 138 kPa.
• Graduated ruler with 1 mm precision.

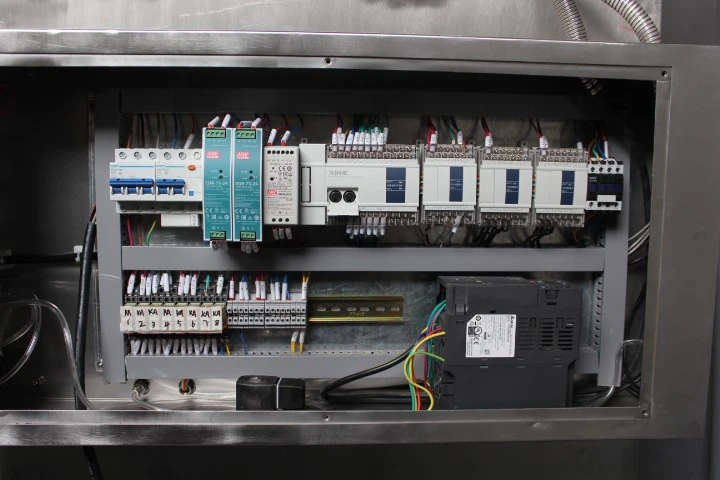

• PC plus PLC control architecture.
• Imported K-type thermocouple for accurate flue-gas temperature measurement.
• Orifice flowmeter and imported differential pressure transmitter for flue-gas flow measurement.

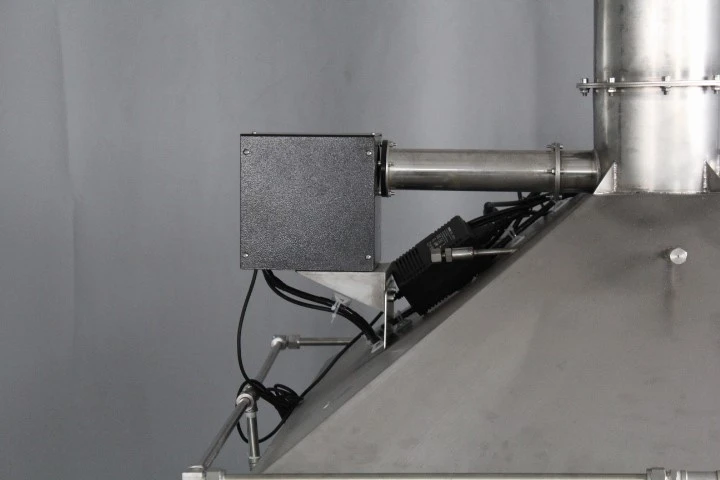

• Optical path system compliant with DIN 50055 using a 2900 K incandescent light source.
• Imported silicon photodetector for smoke density measurement and one-button five-level transmittance auto-calibration.
• Variable-frequency fan for adjustable flue-gas flow control.
• Labview-based software with clear interface for test control and monitoring.
• Real-time display of flue temperature, pressure, air speed, air volume, and transmittance with trend curves.

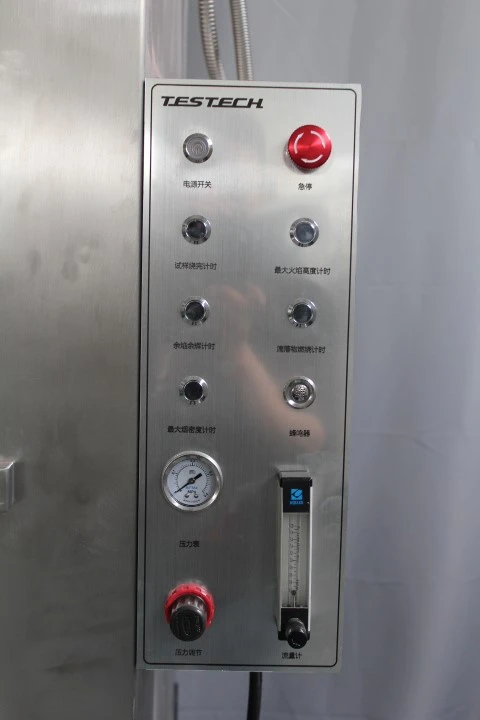

• Timing buttons on the control panel for recording burn-out time, maximum flame occurrence time, afterflame and afterglow time, and dripping combustion time.
• Automatic recording and storage of test data in CSV format after the test.
• Automatic classification of flammability, smoke behavior, and dripping behavior based on test results, with Excel or PDF report generation.

• Wind speed range: 0 to 10 m/s, accuracy 0.1 m/s.
• Temperature range: 0 to 1200 C.
• Exhaust flow rate: 10 m3/min.
• Timing range: 0 to 99999.9 s.
• Flowmeter range: 0 to 100 cc/min.
• Power supply: 220V, 50Hz, 3A.
• Manual and certificate supplied with the equipment.
• Gas source: combustible gas supplied by the customer.
