Product Introduction

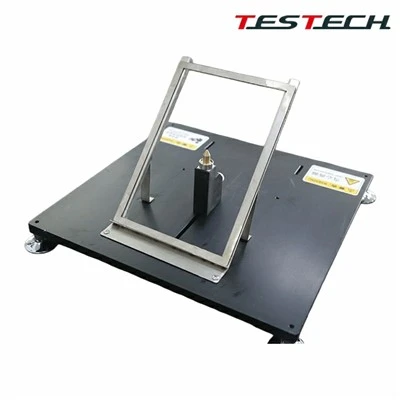

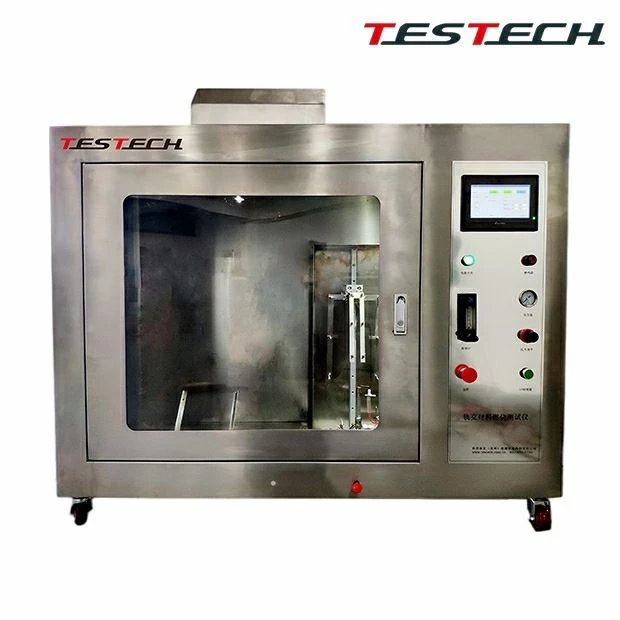

This product is designed and manufactured according to the requirements of UIC 564-2 Appendices 5, 6, 10, 11, and 12. It is suitable for fire-resistance testing of rigid non-thermoplastic plastics used in railway locomotives and rolling stock.
It can be used to test the fire-resistance characteristics of plywood, fiberboard, particleboard, molded laminates, glass/polyester laminates, and partition walls made of several materials such as plywood and molded laminates. It is not suitable for thermoplastic materials.
Common Combustion Chamber Features
- Painted sheet-metal test chamber with volume of 2 m3.
- Bunsen burner with barrel inner diameter of 10 mm ±2 mm.
- Imported gas flow control valve from Japan for accurate flame temperature control.
- Taiwan-brand pressure gauge and pressure regulating valve for precise gas pressure control.
- Adjustable flame height with automatic ignition.
- Flame application time and afterflame time adjustable from 0 to 99 min 99 s.
- Burning angle options: 0 degrees vertical and 45 degrees.
- Burner can be moved horizontally by an external adjustment handle.
- Toughened-glass door for easy observation during testing.
- All internal fixtures made of stainless steel for corrosion resistance and good appearance.
- Two stainless steel specimen clamps supplied, together with flame height gauge.
- High degree of automation, accurate data, and convenient operation.
Control System
- PLC control system.
- Automatic timing, automatic ignition, and ignition fault protection.
- LCD touch-screen display.
- Real-time monitoring of test data, access to data for up to six specimens, and alarm query function.
- Audible alarm reminder for test timing.
Appendix-Specific Test Conditions
- Appendix 5: specimen size 190 mm x 320 mm; specimen suspended vertically; burner at the bottom of specimen with 45-degree angle; blue flame core height 40 mm ±5 mm; ignition time 30 s.
- Appendix 6: specimen size 320 mm; specimen suspended vertically; burner at the bottom of specimen with 45-degree angle; blue flame core height 40 mm ±5 mm; ignition time 30 s.
- Appendix 10 Method B: specimen size 160 mm x 300 mm; specimen suspended vertically; burner at the bottom of specimen with 45-degree angle; blue flame core height 40 mm ±5 mm; ignition time 30 s.
- Appendices 11 and 12: specimen size 160 mm x 300 mm; specimen suspended vertically; burner applied 50 mm above the bottom of specimen with 45-degree angle; blue flame core height 6 mm ±1 mm; total flame height about 35 mm; nozzle length 48 mm ±1 mm and width 3.0 mm ±0.2 mm, or length 48 mm ±0.5 mm and width 5.0 mm; ignition time 3 minutes.
Technical Specifications
|
Parameter |
Value |
|
Model |
TTech-UIC564-T |
|
Standards |
UIC 564-2-1991 Appendices 5, 6, 10, 11, 12 |
|
Chamber Volume |
2 m3 |
|
Burner Type |
Bunsen burner |
|
Burner Inner Diameter |
10 mm ±2 mm |
|
Burning Angles |
0 degrees and 45 degrees |
|
Flame Application Time Range |
0 to 99 min 99 s |
|
Appendix 5 Specimen Size |
190 mm x 320 mm |
|
Appendix 6 Specimen Size |
320 mm |
|
Appendix 10 Specimen Size |
160 mm x 300 mm |
|
Appendices 11/12 Specimen Size |
160 mm x 300 mm |
