Electrical Burner Test Machine

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of electrical burner test machine in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The TESTECH electrical burner test machine is intended for French M1 level combustion testing and complies with the NFP 92-503 test method.

Using a calibrated thermal radiation furnace, the specimen is exposed to thermal radiation while a timed flame impact is applied. The test observes afterflame, dripping behavior, and specimen damage length to determine whether the material meets French M1 classification requirements.

• The system consists of an electrical control cabinet, heating unit, calibration device, specimen holder, and sector burner.

• Electrical control cabinet with painted sheet metal construction and neat industrial appearance.
• Control system uses PLC and touch screen to monitor the test process and results.
• Standard thermal radiation furnace with ceramic protective cover and central spiral metal rod for rapid, uniform, and stable airflow heating.
• Target temperature can be entered directly on the touch screen and is controlled accurately by PID algorithm.
• Calibration device uses a copper plate calorimeter made from a 30 mm diameter and 5 mm thick copper plate with K-type thermocouple at the center.
• Sliding rail installed at the bottom of the apparatus for fast and accurate switching between test position and calibration position.
• Calibration method records the time for the calorimeter temperature to rise from 30 C to 80 C after the heating furnace stabilizes, approximately 1 minute.
• Specimen support designed in SUS304 stainless steel for durability and appearance.

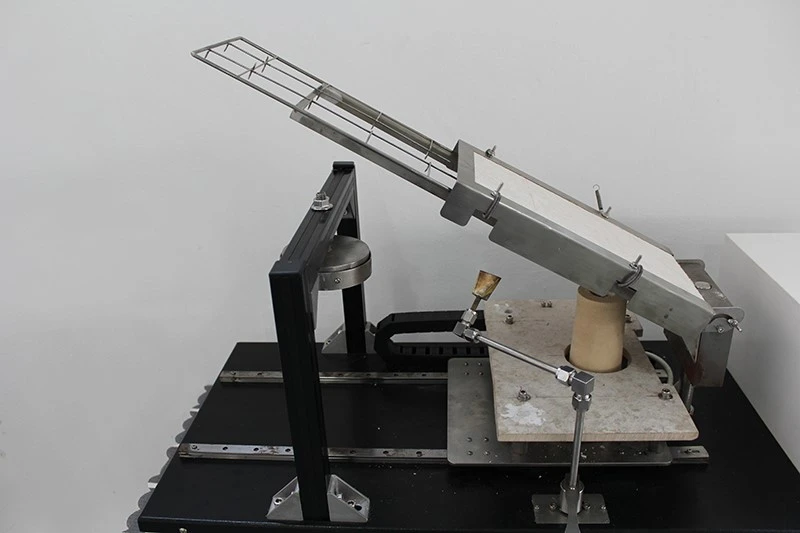

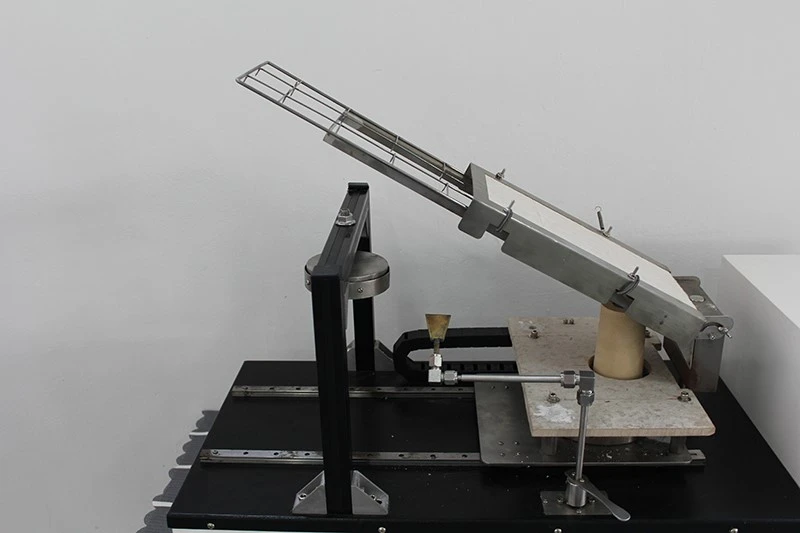

• Specimen holder includes a flip mechanism with needle-type frame for convenient specimen installation.
• After specimen installation, the holder is turned to the test position and the system starts timing automatically.
• During the test, the specimen is positioned 30 mm from the center of the radiation furnace opening and inclined upward at 30 degrees.
• Sector burner applies flame impact to the specimen.
• Imported rotameter provides fine flame height adjustment.
• Flame gauge supplied for convenient checking of the 30 mm flame height.
• Warning system provides audible and visual alarm prompts for flame impact operation.
