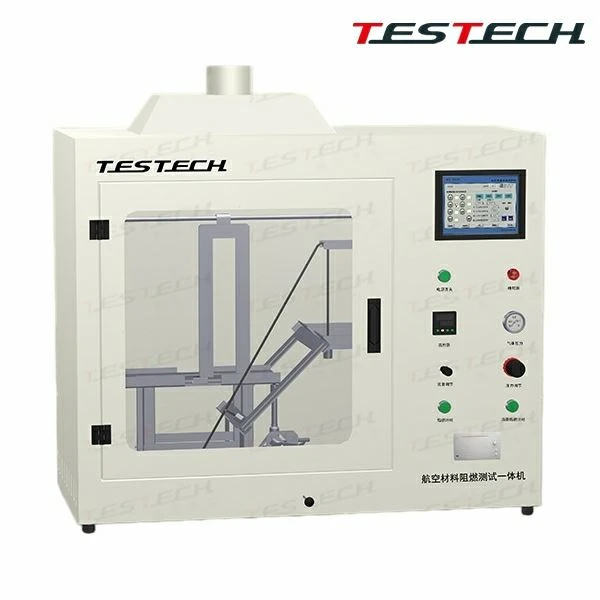

Aviation Vertical Flammability Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of aviation vertical flammability tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

This product is a customized combustion tester designed according to aviation standard CCAR-25 Appendix F Part I, with reference to GB/T 5455.

The equipment integrates the requirements of vertical combustion in item b4, horizontal combustion in item b6, and chamber requirements in item b7 of Appendix F Part I, and includes two customized sample holders according to item b2.

It is designed as an integrated machine. The PLC and touch-screen control system provide higher automation and easier data extraction, with four independent combustion test programs: horizontal, vertical, 45-degree, and 60-degree.

• Painted chamber with transparent observation window and exhaust device for automatic smoke extraction.
• Combustion chamber dimensions: 700 mm x 450 mm x 800 mm.
• Electronic automatic ignition. Flame exposure duration can be adjusted automatically according to different tests and can also be set freely.
• Ignition time can be freely set from 0 to 99.99 s. Afterflame time and flame-retardant time are automatically recorded and digitally displayed with time accuracy of 0.01 s. After flame exposure, the burner is automatically shut off.
• Flame height is adjustable and can be equipped with a flame temperature measurement device.
• Push-pull sample rack fixing device.
• Burner is fixed on a sliding rail. When pushed to the combustion position, timing starts automatically.
• Imported needle valve precisely controls gas flow and flame height of 38.1 mm.
• Multiple specimen holders are available according to different test samples, including customized BWF sample holders.
• Imported pressure gauge and pressure regulator for gas pressure adjustment.
• Vertical burning sample holder supports specimen size 76 mm x 308 mm with exposed specimen size 50.8 mm x 305 mm, using an imported Bunsen burner with 9.5 mm tube inner diameter.
• Equipped with horizontal, vertical, 45-degree, and 60-degree burning test holders and corresponding test programs.
• Horizontal flame sample size: 76 mm x 305 mm, thickness not more than 3 mm.
• Vertical flame sample size: 76 mm x 305 mm, thickness less than the minimum thickness of composite materials used on the aircraft.
• 45-degree flame sample: square specimen 203 mm x 203 mm, thickness less than the minimum thickness of composite materials used on the aircraft.
• 60-degree flame sample: standard specified span length 610 mm.
• Factory flame temperature verification at 843 C.
• Ignition time can be set freely, with automatic reminder when time is reached.
• PLC with touch-screen microcomputer control system for more automated testing and automatic data recording and storage.
• System provides storage for 6 to 8 specimen data sets.
• The front door is open during testing and closed after the experiment; an optional decorative front door is available.

• Independent combustion chamber specified by GJB17.18.
• Independent burner specified by GJB17.18.
• Independent sample support specified by GJB17.18.
• All gas control and test control cabinet functions are shared with the TTech-CCAR25 control cabinet.
• The control cabinet includes an independent gas control valve and related gas circuit for GJB17.18.
• Independent GJB17.18 test program selectable on the touch screen.
