Product Introduction
This test equipment is designed and manufactured according to the relevant clauses of ISO 3795. It is suitable for identifying the horizontal burning performance of automotive interior materials.

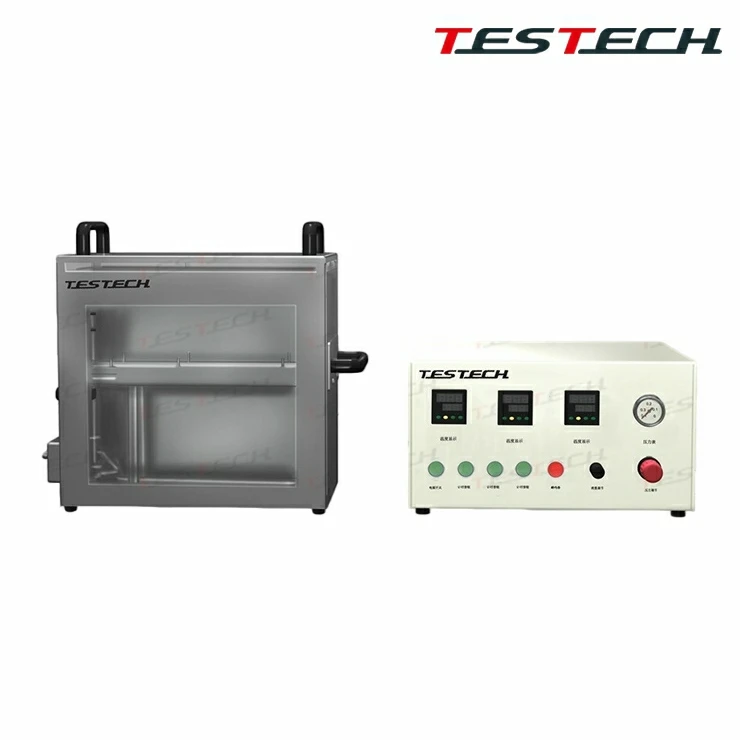

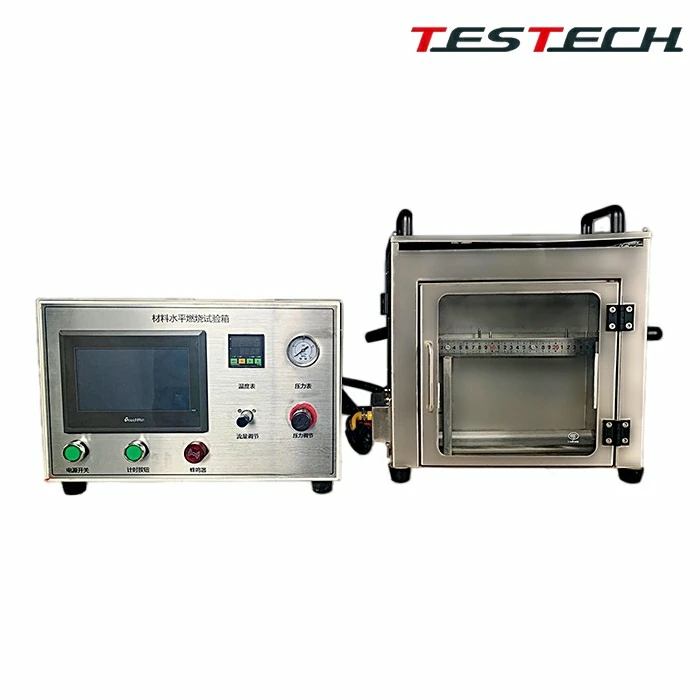

The automotive interior flammability tester integrates both the test section and control section into one design for convenient on-site installation and adjustment. The control system is highly automated, features automatic ignition, and provides digital temperature and time display for convenient observation and reliable operation.Title
Equipment Features
- Advanced industrial appearance and control design.
- Stainless steel chamber structure.
- Burner inner diameter: 10.0 mm ±0.5 mm.
- Flame application time and combustion timing can be adjusted.
- Adjustment range from 0 to 9999 seconds.
- Toughened glass door for convenient observation during testing.
- Stainless steel specimen clamp and specimen template.
- Uses imported Bunsen burner from Hanburg, USA, with flame adjustment range from 20 mm to 100 mm.
- Flame measurement device included.
- Thermocouple installed according to the standard to detect temperature inside the test chamber.
- High degree of automation with accurate experimental data and easy operation.
- PLC programmable controller control.
- Automatic timing, automatic ignition, and ignition fault protection.
- Optional automatic wind-speed detection and storage of data for six specimens.
- Text display screen.
- Real-time monitoring of experimental data and query of six specimen records and alarm information.
- Audible alarm for abnormal test conditions.
- Double-stage gas solenoid valve safety protection to prevent gas leakage and explosion risk.
Specifications
|
Parameter |
Value |
|
Model |
TTech-GBT8410 |
|
Dimensions |
203 x 381 x 356 mm |
|
Power Supply |
AC 220V, 50/60Hz, 10A |
|
Weight |
Approx. 70 kg |
|
Manual |
Provided |
|
Burner Inner Diameter |
10.0 mm ±0.5 mm |
|
Flame Adjustment Range |
20 mm to 100 mm |
|
Timing Range |
0 to 9999 s |
