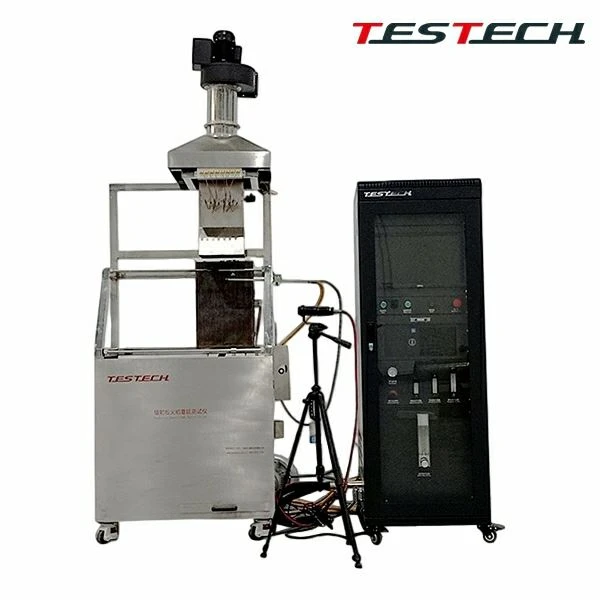

Radiant Panel Flame Spread Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of radiant panel flame spread tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The radiant panel flame spread tester uses a gas-heated radiant panel to test the flammability of building surface materials in accordance with ASTM E 162 and foam plastics in accordance with ASTM D 3675.

The flame spread index (Is) is determined by factors including flame spread and heat release, and is a required parameter in many industry codes, especially for public transportation such as trains and buses.

Data acquisition and analysis are completed automatically by software.

• All frame structures are made of stainless steel for attractive appearance and corrosion resistance.

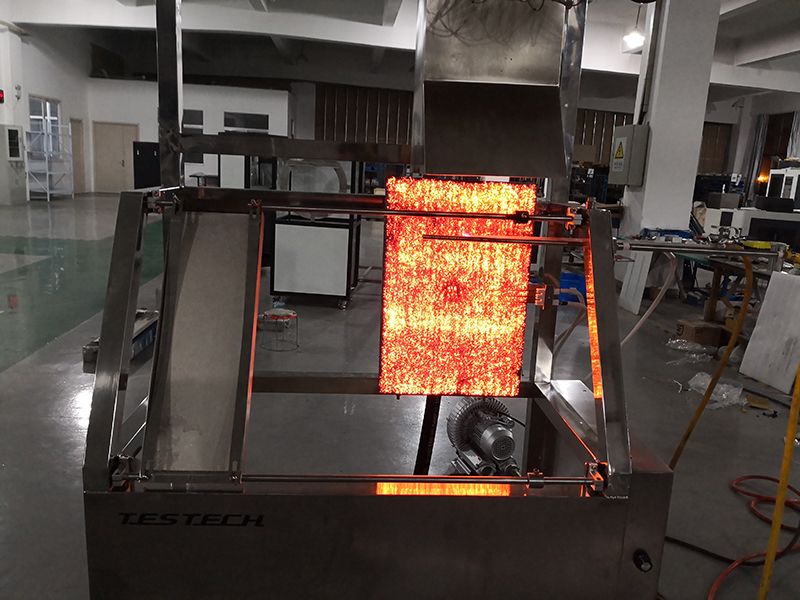

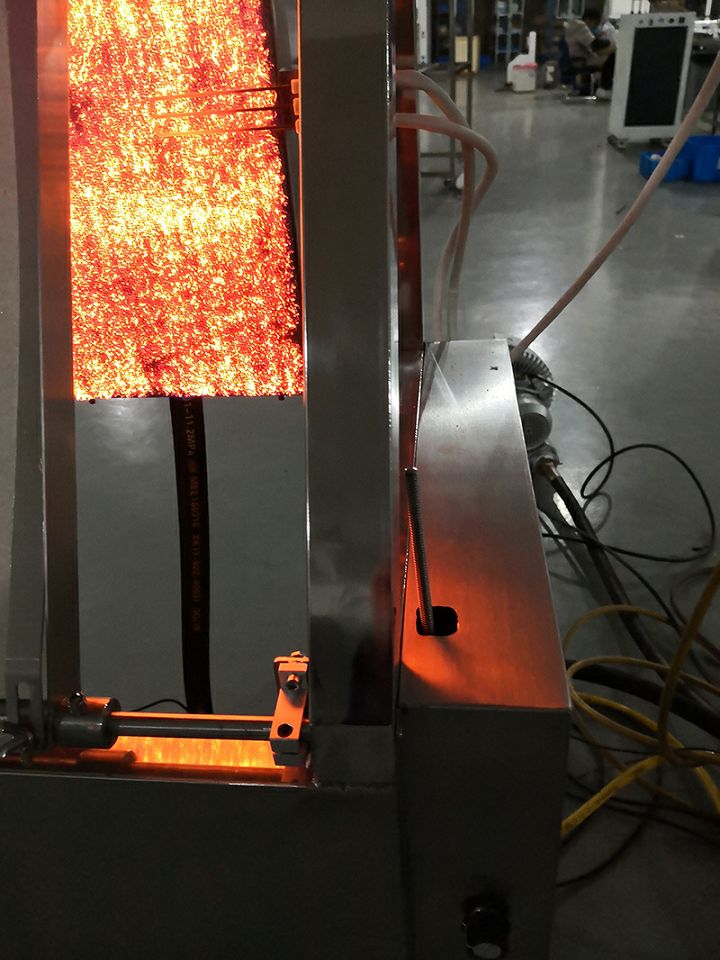

• The radiant panel is made of a cast-iron frame. The radiant panel surface size is 305 x 457 mm, made of porous fireproof material, with working temperature of 815 degrees C.

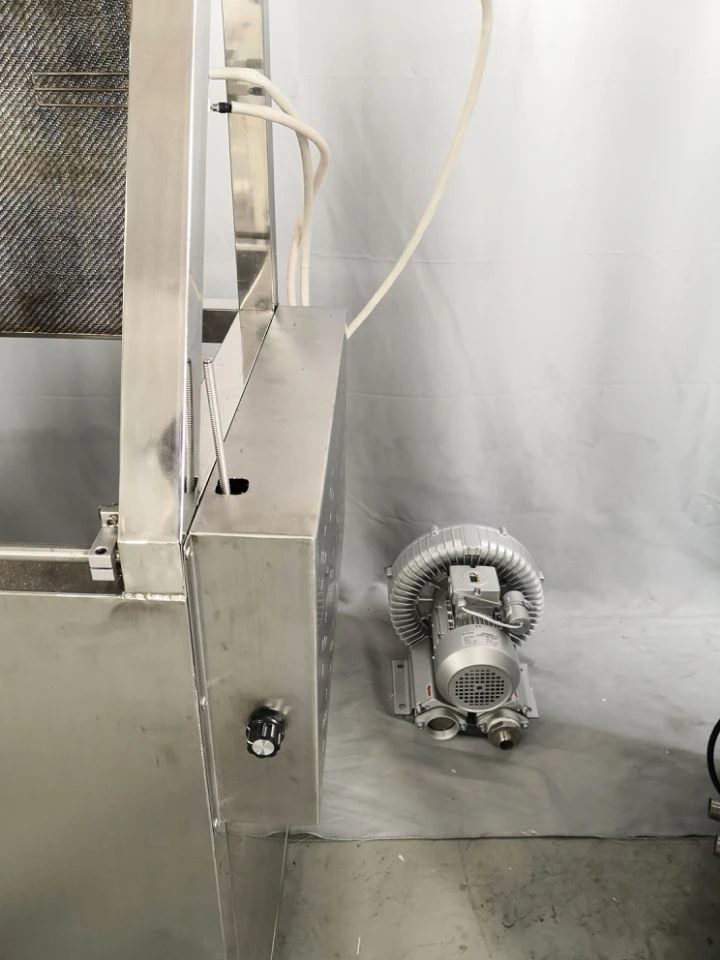

• The blower-equipped air filter supplies air to the radiant panel.

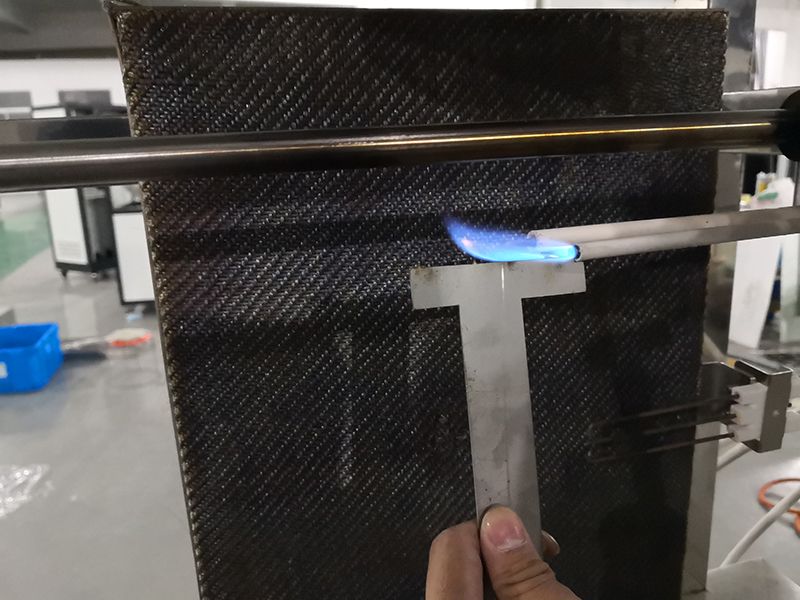

• The device includes an igniter, electronic ignition, and automatic flameout safety monitoring device.

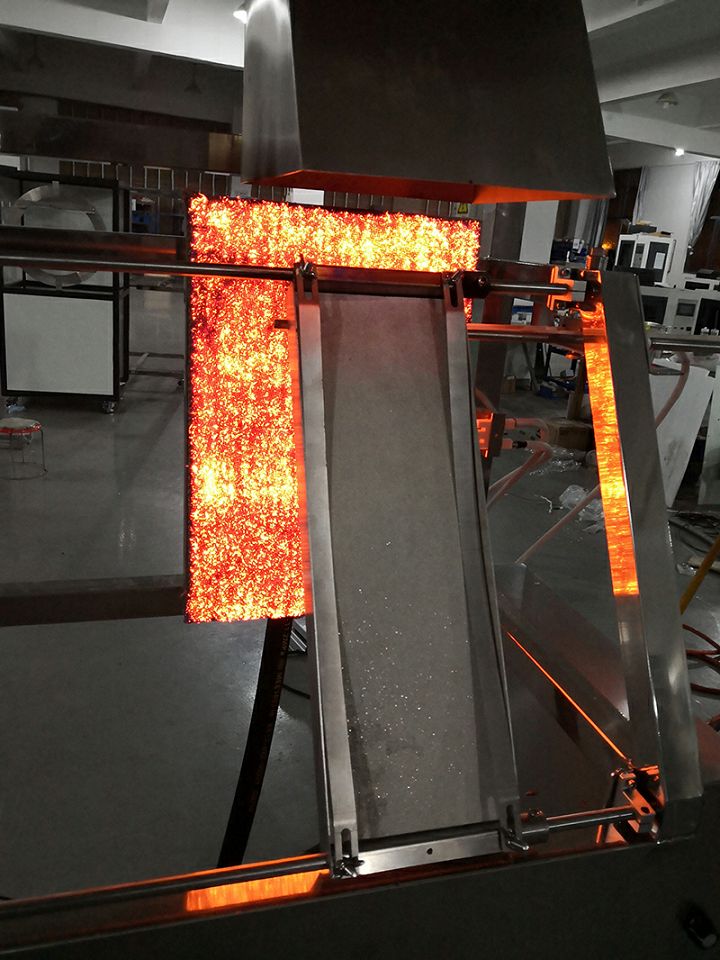

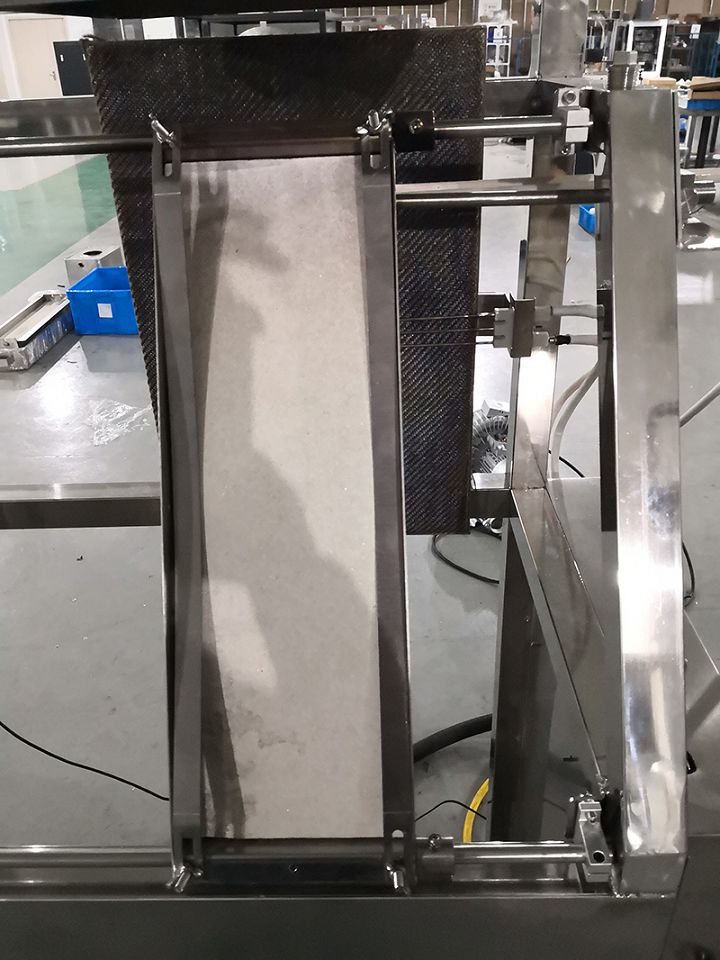

• Stainless steel specimen fixing frame with observation points every 3 inches for observing flame front progression.
• Pyrometer for measuring the radiant panel surface temperature, including bracket; temperature up to 815 degrees C.

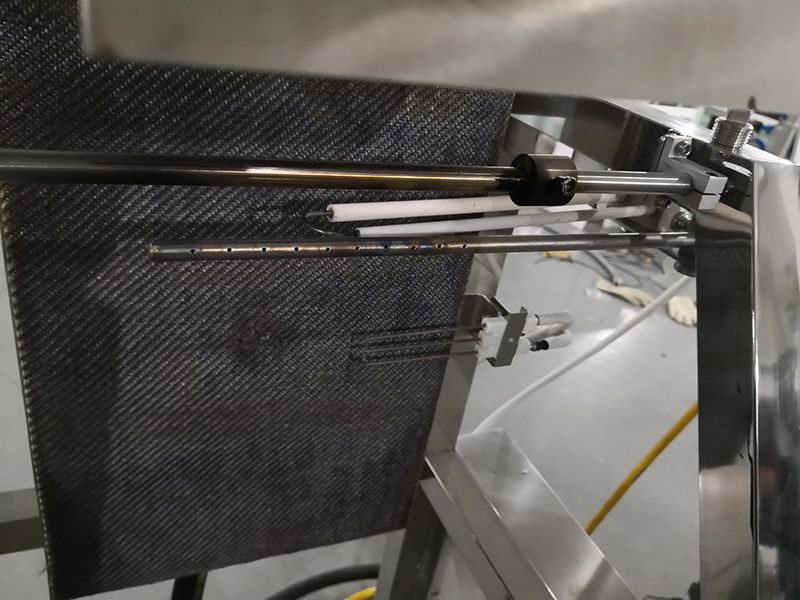

• Stainless steel specimen support and ignition burner device.

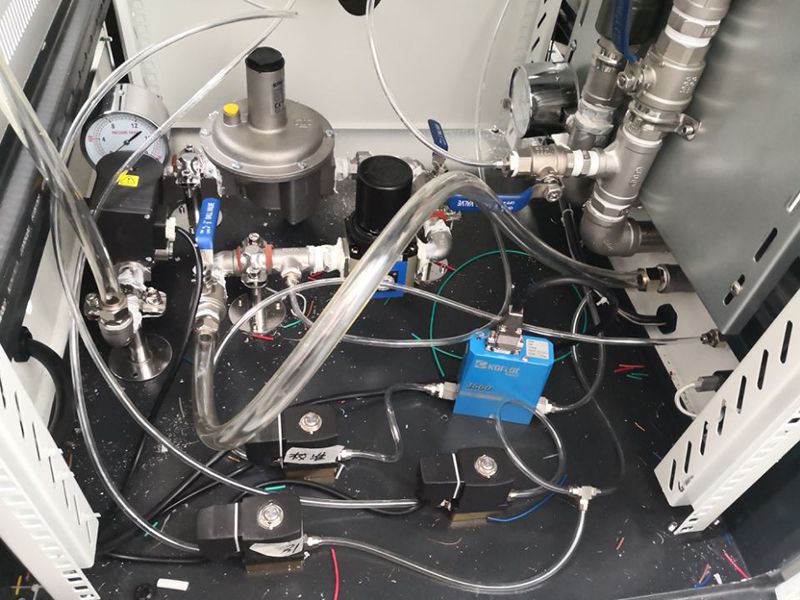

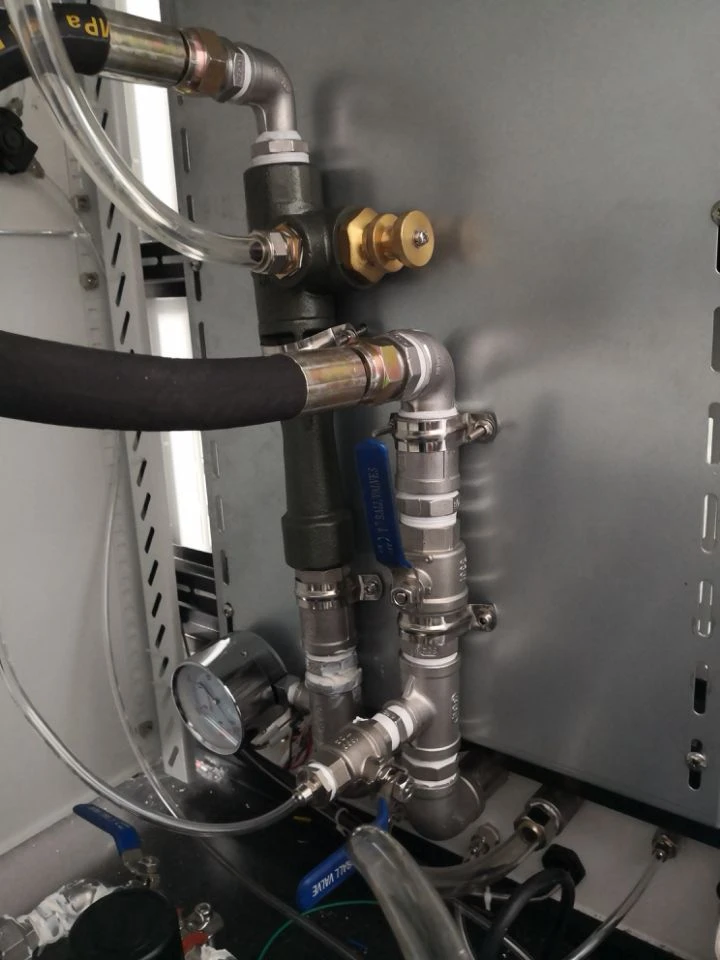

• Flow meter and gas control valve for controlling the gas mixture fed into the radiant panel.

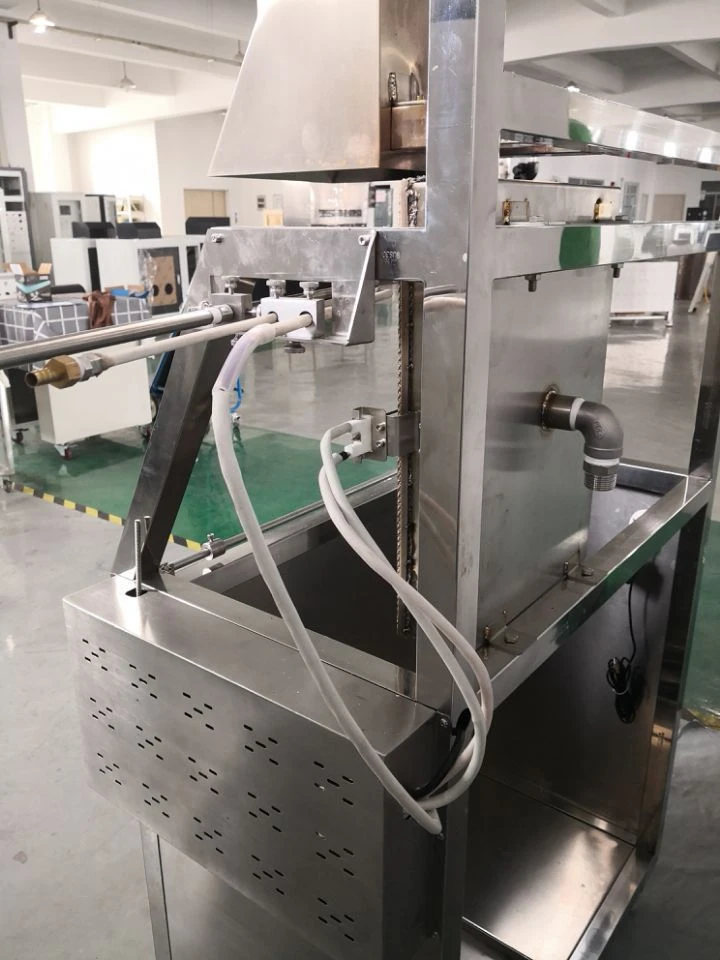

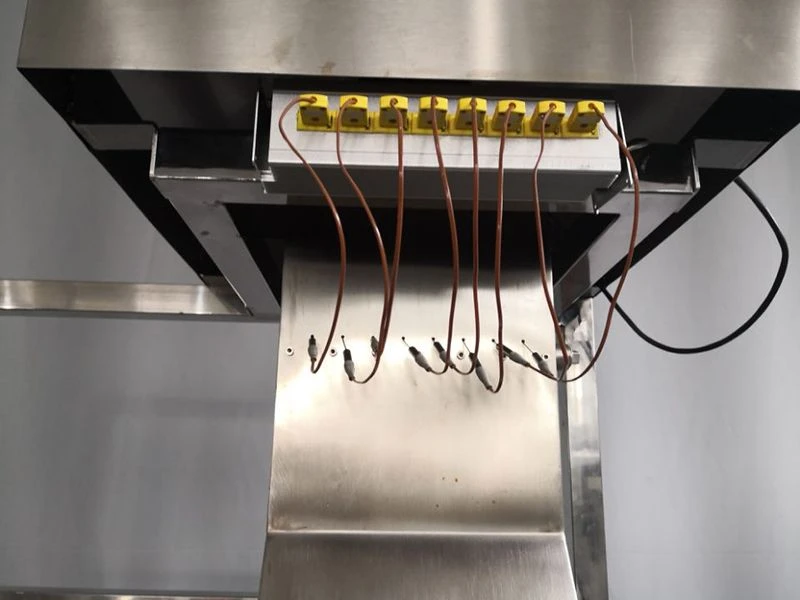

• Stainless steel exhaust pipe with removable section for convenient cleaning of thermocouples, equipped with eight thermocouples according to the standard.
• Calibration burner has 1.8 mm holes at 16 different angles along the centreline.

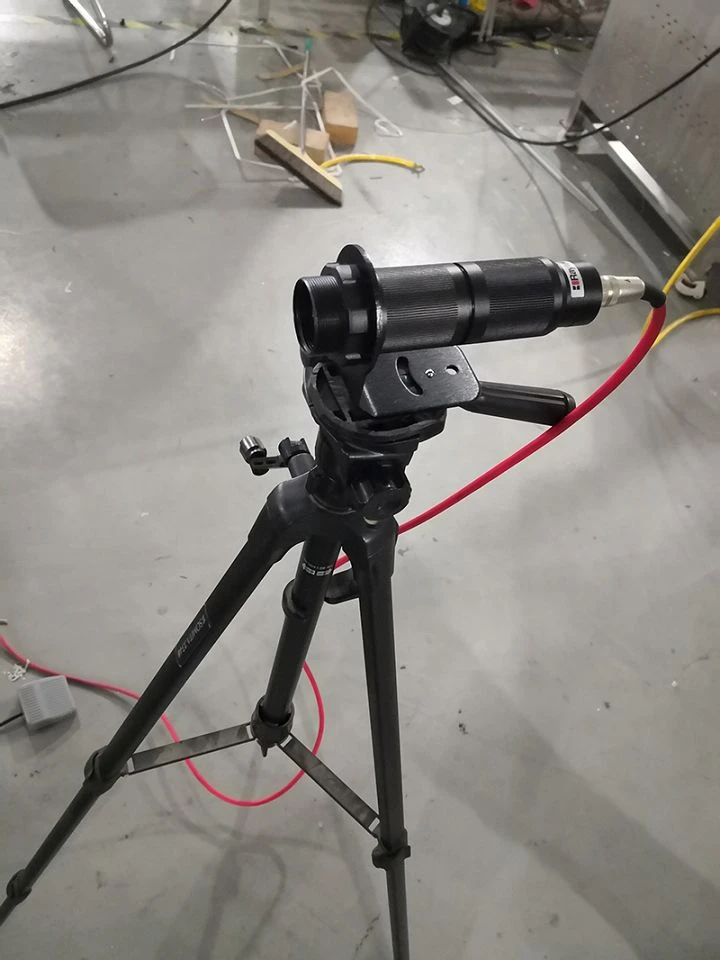

• To control the surface temperature of the radiant panel, a blackbody temperature of 180 to 230 degrees C must be set with accuracy of +/- 5 degrees C, suitable for observing the surface temperature of a 250 mm radius radiant panel from more than 2 m away.
• Insulated thermocouple for measuring stack temperature.
• Imported circular foil heat flux meter for testing the heat radiation condition of the radiant panel, range 0 to 100 kW/m2.
• DAQ system enables automatic control and measurement.
• Gas safety control and electrical circuit cut-off device.

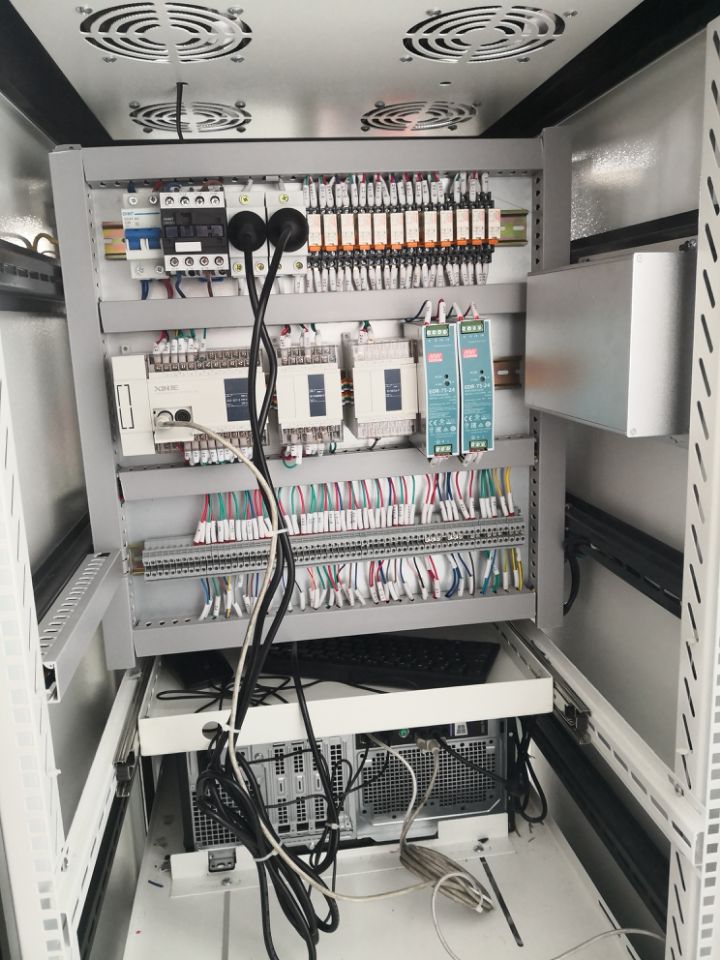

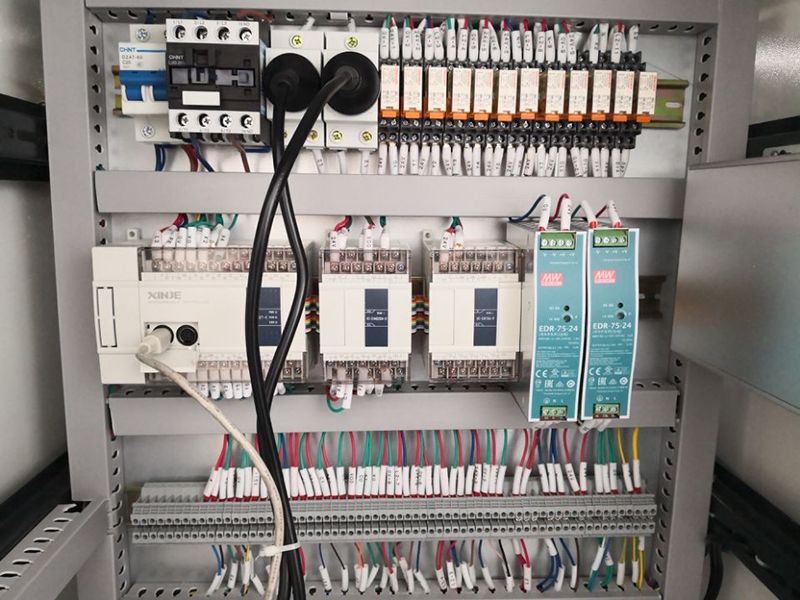

• Independent electrical control cabinet.

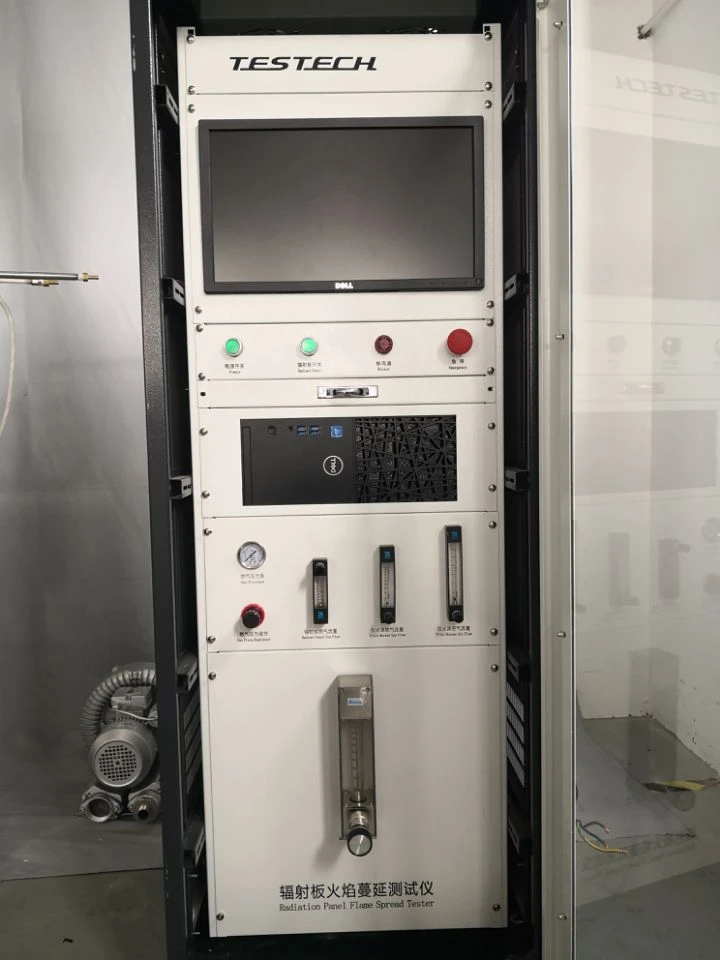

• Standard control cabinet with computer and Labview intelligent control system.
• The system is intelligent and easy to operate.
• Imported gas flow meter for precise gas flow control.
• Automatic calibration of radiation quantity and automatic control of test radiation.
• Exhaust fan flow rate: 0.5 m/s.
• Experimental data are automatically stored and can be freely printed.
• Equipped with branded laptop computer.

• Tools: propane gas and computer.
