Solar Cell Spread Of Flame Burning Brand Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of solar cell spread of flame burning brand tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

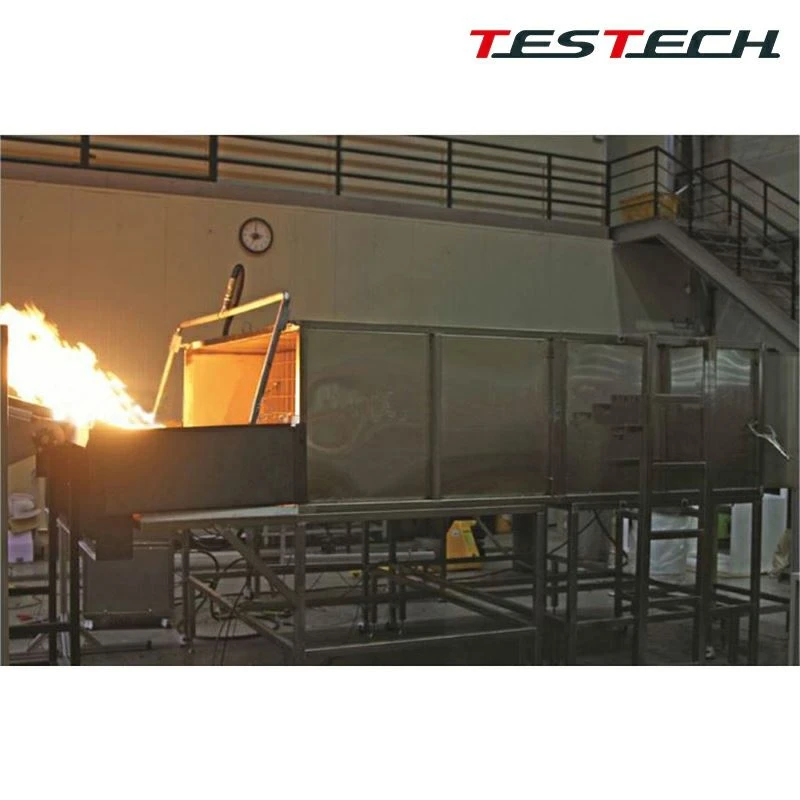

The TESTech roof combustion test system is designed and developed according to UL 1703 and IEC 61730-2:2016 Annex B requirements.

It is used to assess the fire resistance of roofs and module assemblies under simulated real-world conditions and to rate specimens from Class A to Class C under A 1.82 m, B 2.4 m, and C 3.9 m conditions.

It can also be applied to flame-retardant testing of photovoltaic cell modules.

• Plywood roof covering test deck, size 1,300(W) x 1,000(D) x 120(H) mm, for installation of test specimens.
• Non-combustible test board installed at the end of the test deck to block backfire from below the deck.
• Stainless steel fan-shaped adjustment plate with adjustable test angle, size 1,440(L) x 940(H) mm.
• Main frame supports the test stand, made of corrosion-resistant steel structure, size 1,020(L) x 1,000(D) x 1,473(H) mm.
• Non-combustible board assembly at the front end of the frame simulates eaves and fascia and extends the burner flame to the specimen, size 330(W) x 2,130(D) x 584(H) mm.
• Airflow rate above the test deck is 19 +/- 8 km/h (5.5 m/s), with an anemometer for monitoring.
• Independent air duct draws air from outside the laboratory.
• Honeycomb filter is installed in the air duct, with guide vanes at the gas inlet.
• Slope adjustment panel on the air duct adjusts airflow direction.
• Guide plates on the duct enhance airflow speed and ensure stable airflow supply to the test deck without outside interference.
• Air duct is made of stainless steel, corrosion-resistant and heat-resistant, size 2,130(W) x 762(H) x 3,000(L) mm.
• Fan is 220 V, 50 Hz, three-phase, with reversing system and automatic airflow adjustment; minimum flow rate 300 m3/min.
• Stepless inverter adjustable from 0 to 100%.
• Gas burner for intermittent flame application, flame spread, and burning brand tests; 1.12 m long, 60.3 mm diameter, with a slit 12.7 mm wide by 0.91 m long on the side facing the test deck.
• Gas burner output 22,000 Btu/min (387 kWh), with high-precision gas control valve for Class A, B, and C combustion levels.
• Thermocouple installed 58.7 mm above the burner top, test temperature 888 +/- 28 C.
• Automatic ignition system with minimum ignition electrode voltage of 1.8 kVp.
• Mass flow controller controls gas flow according to standards: Class A & B 21,000 to 22,000 Btu/min for 10 minutes; Class C 18,000 to 19,000 Btu/min for 4 minutes.
• Automatic temperature control system.
• Class A & B: 760 +/- 28 C (1400 +/- 50 F), 21,000 to 22,000 Btu/min.
• Class C: 704 +/- 28 C (1300 +/- 50 F), 18,000 to 19,000 Btu/min.
• High-precision pressure gauge and regulating valve control gas pressure.
• Different gases delivered to the burner follow different testing and control methods.
• LNG uses MFM for precise gas flow measurement and automatic control valve regulation.
• LPG uses inverter system to regulate airflow speed, with test deck speed 19 +/- 8 km/h (5.5 m/s).
• Metal mesh grid supports the material, and the tray can rotate for adequate burning.

• Computer control system with 19-inch LCD screen and dedicated Labview software.
• Modular data acquisition and control design including wind speed acquisition module, temperature acquisition module, wind speed control system, and exhaust control system.
• Data acquisition system includes 16-bit thermocouple input module, 16-bit analog-to-digital input module, data input/output module, and 12-bit analog-to-digital output module.
• Brand test system includes gas burner whose flame can engulf the burning brand material, with burner temperature adjustable to 880 +/- 10 C.

• Any part of the roof covering material, component, or panel is blown off the test deck in the form of flame or glowing particles.
• Exposure of the roof deck can occur by sliding, cracking, or bending of the roof covering material.
• Class A fire safety rating: flame spread range 1.82 m measured from the specimen edge.
• Class B fire safety rating: flame spread range 2.4 m measured from the specimen edge.
• Class C fire safety rating: flame spread range 3.9 m measured from the specimen edge.
• Any part of the panel or module falls or is blown off the test deck in the form of flame.
• Any part of the roof deck or any part of the roof structure panel or module disappears in the form of glowing particles.
• The component or panel continues to burn.
