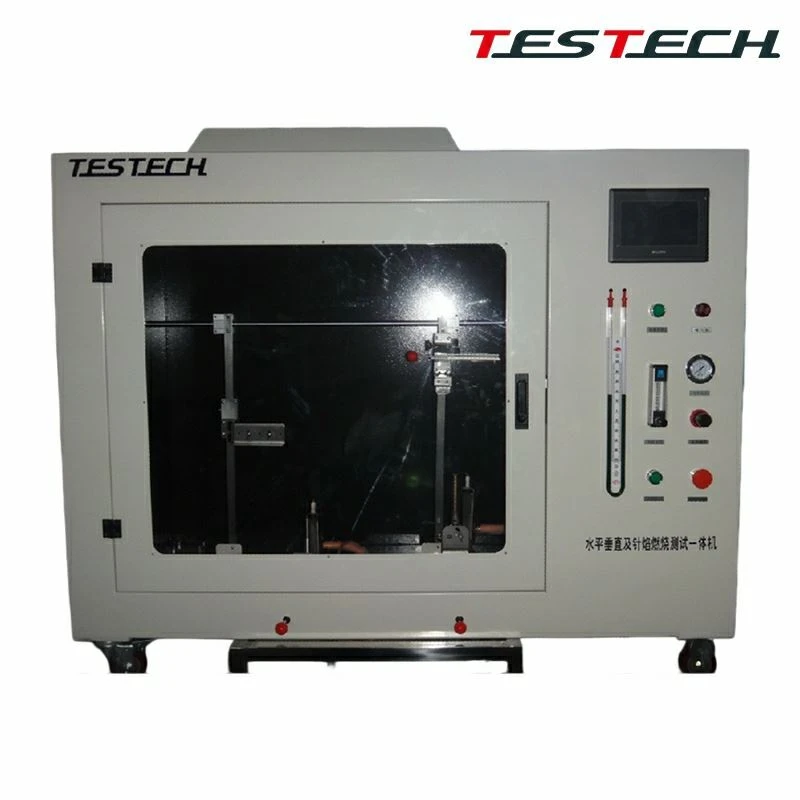

Needle Flame Test Apparatus

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of needle flame test apparatus in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

• Applicable to research, production, and quality inspection departments for electrical and electronic equipment such as lighting products, low-voltage apparatus, household appliances, machine tool electrics, motors, power tools, electronic instruments, electrical instruments, electrical connectors, and accessories.
• Also suitable for insulation materials, engineering plastics, and other solid combustible materials industries for small-flame ignition source program simulation tests.

• The tester uses a needle-shaped burner of specified dimensions and supplies it with a designated gas such as butane.
• The burner ignites the sample at a fixed 45° angle, and the ignition hazard is evaluated according to whether the sample ignites, the duration of flaming, and the combustion length.

• Needle-shaped burner made of stainless steel, inner hole diameter 0.5 ±0.1 mm, outer diameter not greater than 0.9 mm, and length not less than 35 mm.
• Burner angle can be vertical for flame height adjustment and measurement, or inclined at 45° during testing.
• Combustion gas: 95% butane gas or propane gas.
• Ignition pad layer: white pine board, 10 mm thick, surface covered with 12 to 30 g/m2 standard paper, positioned 200 ±5 mm below the flame application point.
• Flame height: 12 ±1 mm, with flame height measuring device.
• Ignition duration adjustable from 0 to 999.9 s, typically set at 30 s.
• Burn duration adjustable from 0 to 999.9 s, automatically recorded and manually paused.
• Test volume greater than 0.5 m3, with optional customization to 0.75 m3 cubic or 1 m3 according to customer requirements.
• System equipped with PLC and touch screen for more intelligent testing.
• Procedure is automatically controlled during the test and includes an independent ventilation system.
• Dimensions: 1000 mm x 650 mm x 1300 mm; exhaust port diameter: 150 mm.
• Test power supply: 220 V AC, 50 Hz.

• External dimensions of the test box: 1200 mm x 650 mm x 1300 mm.
• Internal dimensions of the combustion chamber: 900 mm x 650 mm x 1100 mm.

• Temperature calibration device is optional.
• Flame temperature requirement: heating from 100 ±2 °C to 700 ±3 °C shall be completed within 23.5 ±1.0 seconds.
