TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of melt mass-flow rate tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Product Introduction

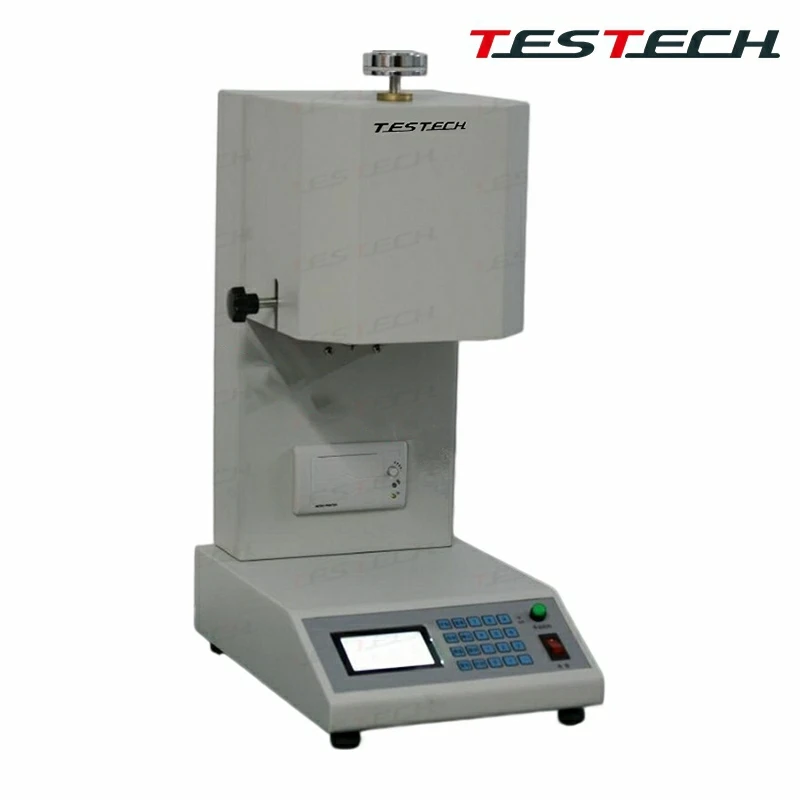

- The TESTech Melt Mass-Flow Rate Tester is designed and manufactured according to GB/T 3682-2000 and ASTM D1238-98.
- The instrument is easy to operate, provides accurate data, and offers safe and reliable performance.
- It is widely used in testing applications within departments related to the plastics industry.
Technical Parameters
- Test method: mass method (MFR).
- Eight standard test loads.
- Temperature measurement range: 20 to 400 °C; accuracy ±0.2 °C; resolution 0.1 °C.
- Measuring range: 0.02 to 400 g/10 min.
- Test device dimensions: die outlet diameter 2.095 ±0.005 mm; die outlet length 8.000 ±0.025 mm; charging barrel diameter 9.550 ±0.025 mm; charging barrel length 152 ±0.1 mm; piston head diameter 9.475 ±0.015 mm; piston head length 6.350 ±0.100 mm.
- Display mode: LCD screen display.
- Test reports can be printed at any time for convenient documentation.
- Material cutting method: automatic or manual.
- Power supply: 220 V ±10%, 50 Hz.
- Instrument dimensions: 510 × 370 × 600 mm.
- Weight: main unit 25 kg; weights 21.6 kg.
Specifications
|
Parameter |
Value |
|
Model |
TTech-GB3682 |
|
Test Method |
Mass method (MFR) |
|
Temperature Range |
20 to 400 °C |
|
Temperature Accuracy |
±0.2 °C |
|
Resolution |
0.1 °C |
|
Measuring Range |
0.02 to 400 g/10 min |
|
Power Supply |
220 V ±10%, 50 Hz |
|
Instrument Dimensions |
510 x 370 x 600 mm |
|
Weight |
Main unit 25 kg; weights 21.6 kg |
