Horizontal and Vertical Flame Test Apparatus

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of horizontal and vertical flame test apparatus in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

• The tester simulates early fire conditions around electrical and electronic products and evaluates ignition risk using simulation technology.
• It is suitable for components, parts, and materials used in household appliances and electrical/electronic products, such as insulating housings, switch panels, printed boards, and insulating materials.
• The system is designed to measure flammability, burning rate, flame spread, combustion intensity, and flame-retardant performance with a high degree of automation and accurate test data.

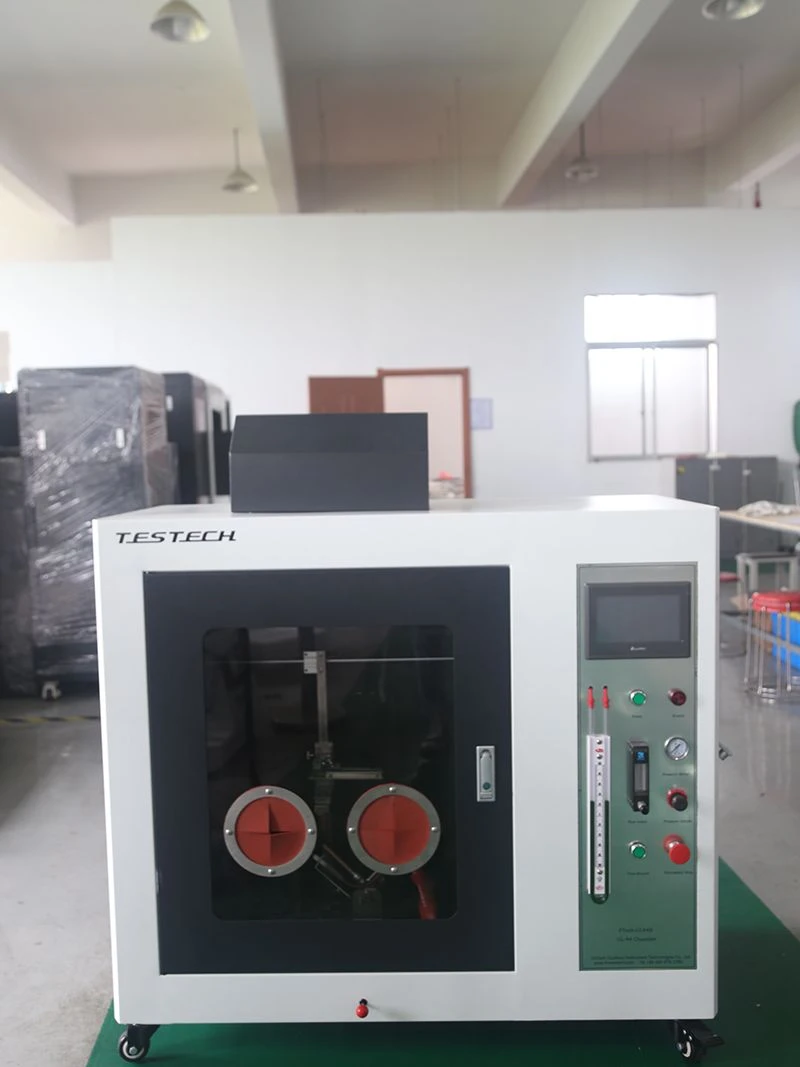

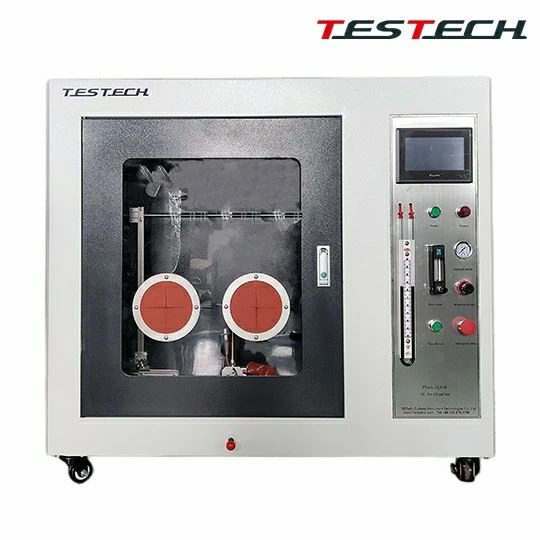

• Cabinet dimensions: 1200 mm x 600 mm x 1300 mm.
• Large chamber volume of 0.55 m3 ensures sufficient air supply during testing.
• Cabinet is finished with painted exterior and black-coated interior as required by the standard, offering good corrosion resistance.
• Large glass observation window provides clear viewing of specimen burning behavior.
• Industrial design with ergonomic operating layout makes specimen access and burner operation convenient.
• All fixtures are made of SUS304 stainless steel, combining horizontal and vertical fixtures in one integrated design to save space and simplify operation.
• Standard wedge support is telescopic and suitable for special materials; dimensions: 120 ±2 mm in length and 20 ±1 mm in width, with black oxidation finish.
• SUS304 stainless steel flame height gauge with 0.5 mm accuracy.
• Integrated design of test section and control section allows convenient on-site installation and commissioning.

• Burner angle can be conveniently adjusted between 0° and 45°.
• Imported Humboldt Bunsen burner from the USA, with tube length 100 ±10 mm and inner diameter 9.5 ±0.3 mm, fully complying with IEC 60695-11-4.
• The burner itself allows flow adjustment and air intake adjustment.
• Imported flowmeter and precision needle valve provide accurate control of combustion gas flow.
• Imported high-precision pressure regulating valve and pressure gauge, range 0 to 0.4 MPa.
• Equipped with a U-tube manometer.
• Flame height is precisely controlled at 20 ±2 mm.

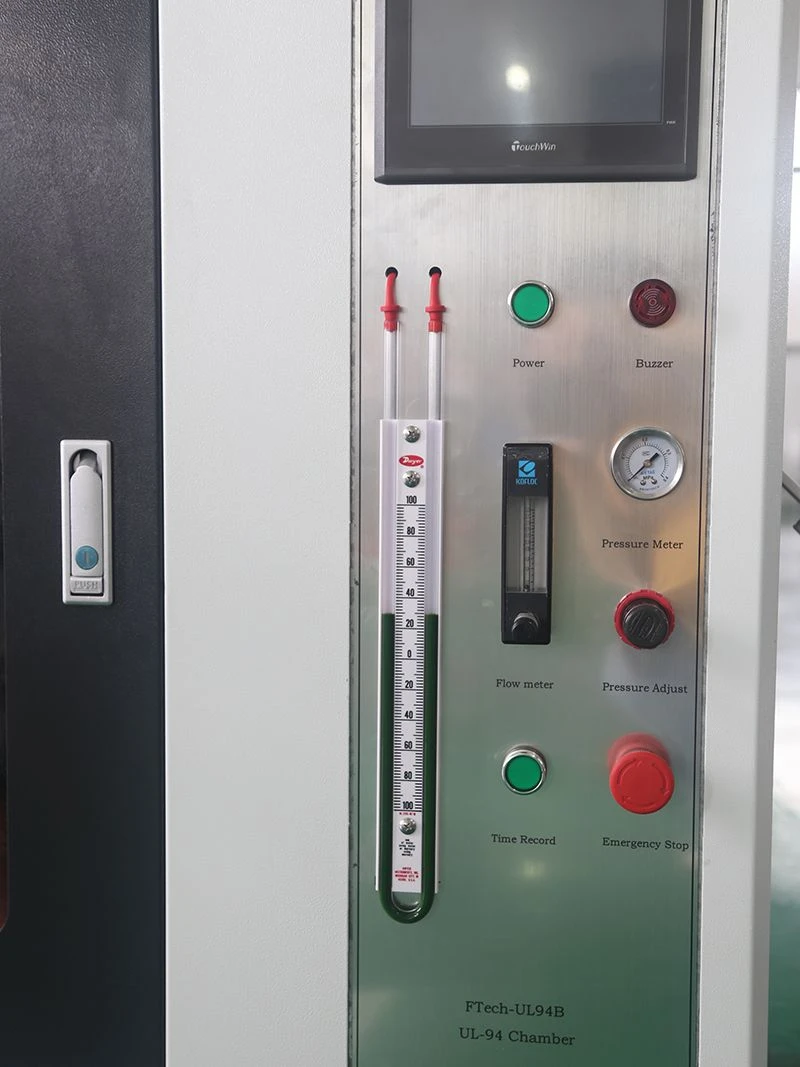

• 7-inch programmable controller with touch screen for control, detection, calculation, and data display.
• Pulse high-voltage electronic automatic ignition.
• Timer button works with PLC to automatically record and store burning time.
• Timer automatically detects flame arrival time at the 25 mm and 100 mm marks with 0.1 s accuracy.
• No handheld stopwatch or manual timing is required; the system automatically records test time and generates the test report.
• Test time and flame application time can be freely set on the touch screen to meet different standard requirements.
• Linear burning rate (V) is automatically calculated by PLC and displayed and stored on the touch screen.
• Test classification values such as HB0, HB40, HB75, V-0, V-1, and V-2 can be viewed directly on screen.
• Horizontal and vertical burning test programs can be switched on the touch screen.
• Automatic timing device records and stores test time for later report review.
• Top-mounted exhaust device removes combustion gases after testing; exhaust ducting and fuel gas are to be provided by the customer.

• SUS304 stainless steel flame height gauge with 0.5 mm accuracy.
• One horizontal and vertical burning specimen holder.
• Two hose clamps.
• Product manual.
• Certificate of conformity.
• Wooden export packing for safe transport.

• Power supply: 220 V, 50/60 Hz.
• Socket provided with grounding terminal.
• Methane or propane gas to be supplied by the customer.

• 50 W flame calibration device; heating time from 100 ±2 °C to 700 ±3 °C is 44 ±2 s.
• Temperature measuring device with 0.5 mm K-type armored thermocouple and intelligent PID temperature controller, up to 1000 °C.
• Raised base platform.
