Glow Wire Test Apparatus

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of glow wire test apparatus in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

• Under fault or overload conditions, electrical parts or components may reach excessive temperatures or ignite nearby parts.
• The glow-wire test simulates thermal stress caused in a short time by hot elements or ignition sources such as overloaded resistors, and evaluates fire hazard by simulation technology.
• It is suitable for electrical and electronic products, household appliance parts, plastic components, and non-metallic insulating material parts such as switch housings and relay sockets.

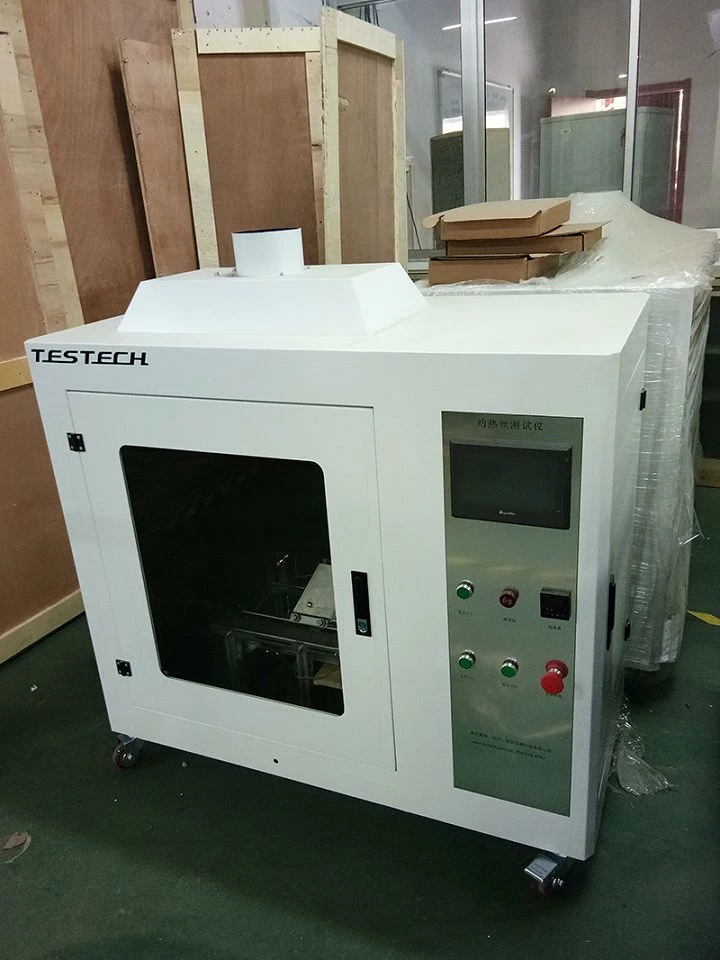

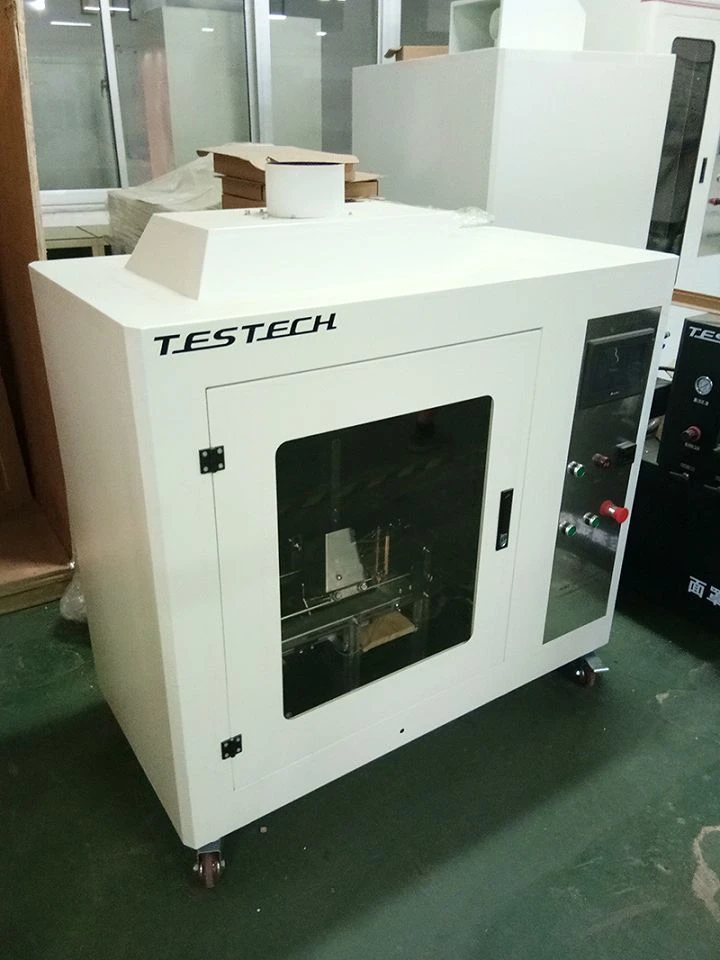

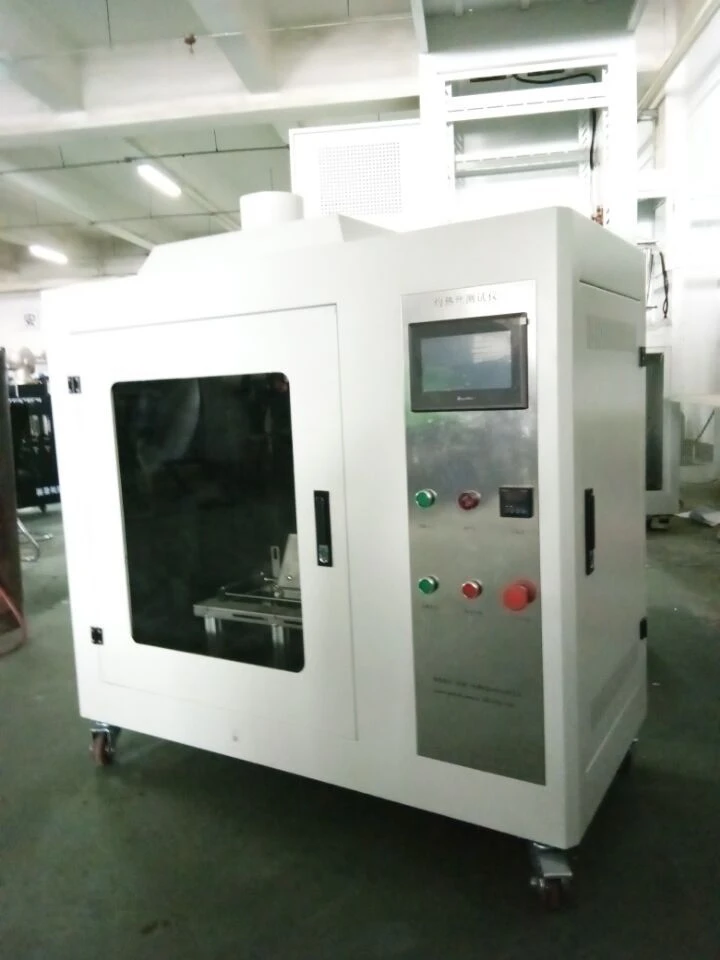

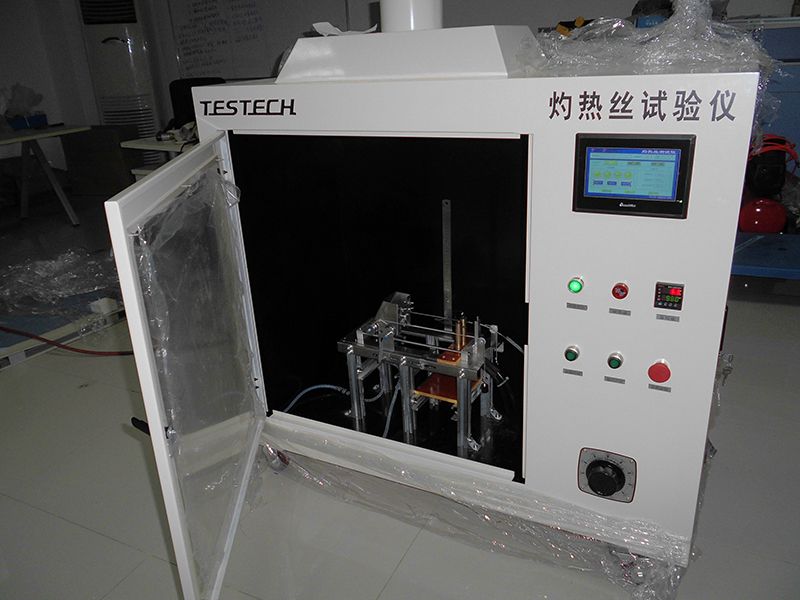

• The apparatus integrates the test chamber and control section in one unit for convenient installation, commissioning, digital display of time and temperature, easy observation, and reliable operation.

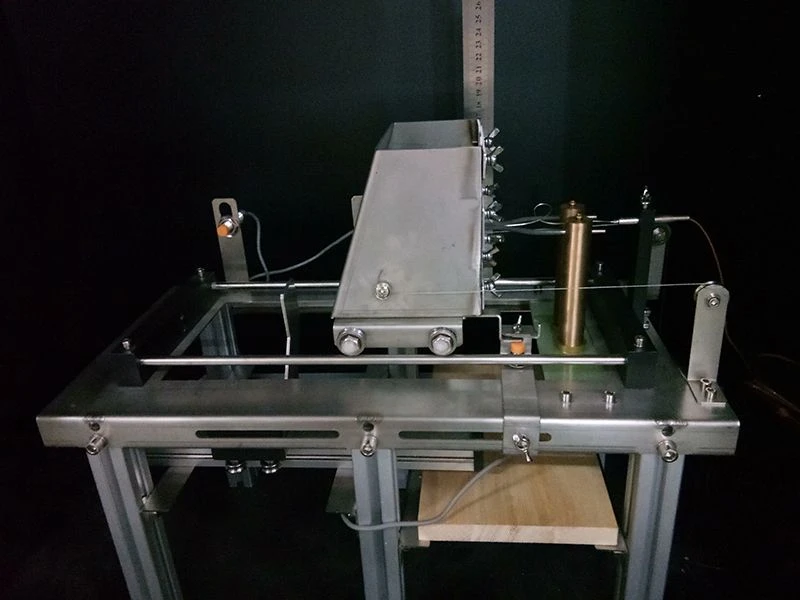

• Glow-wire loop made of nickel-chromium wire, 77% Ni and 20 ±1% Cr, outer diameter 4.00 ±0.07 mm, annealed.
• Temperature range: 500 to 1000 °C, digitally adjustable.
• Temperature tolerance: ±3 °C within 500 to 1000 °C; temperature measuring instrument accuracy ±0.5 class.
• Temperature sensor: 1 mm K-type armored imported thermocouple, brand OMEGA, USA.
• Force applied by glow wire to specimen: 0.95 ±0.1 N, adjustable within 0.8 to 1.2 N, accuracy ±0.1 N, with penetration depth limited to at least 7 mm.
• Timer range adjustable from 0 to 99 min 99 s.
• Includes timers for flame application time (Ta, generally 30 s according to the standard), afterflame time (Ti), and flame extinction time (Te).
• Time tolerance: ±1 s.
• Ignition pad layer: white pine board with minimum thickness 10 mm, covered with 12 to 30 g/m3 standard tissue paper, positioned 200 ±5 mm below the glow wire.
• Simple instrument operation, stable temperature measuring system, and automatic temperature compensation.
• Power supply: AC 220 V ±10%, 50 Hz; other power supply specifications can be customized.
• PLC touch-screen control system for simple and convenient operation.

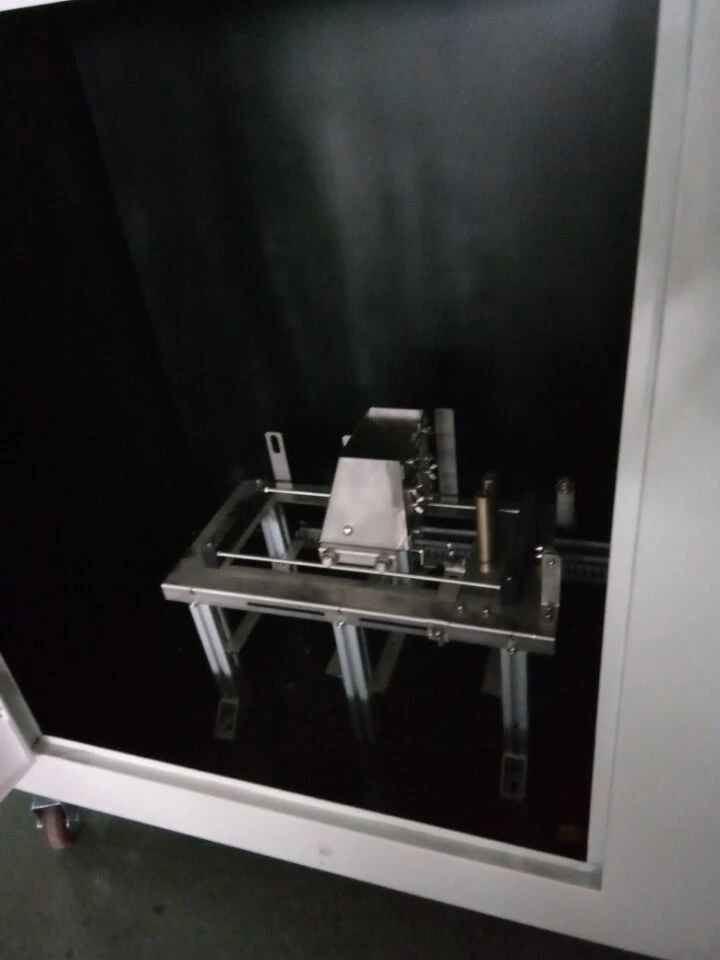

• Large transparent plastic-steel viewing window allows easy observation of specimen condition inside the chamber.
