TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of flame-retardant paper and cardboard flammability tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Product Overview

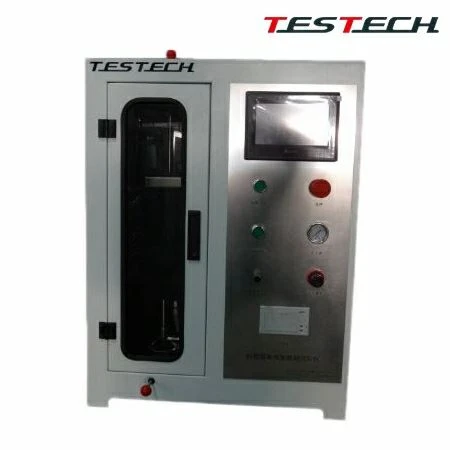

The TESTech Flame-Retardant Paper and Cardboard Flammability Tester adopts an integrated design of the control cabinet and test chamber.
It satisfies the technical indexes and requirements specified in GB/T14656-2009 and is suitable for testing flame-retardant treated paper, paperboard, and flame-retardant paper products with thickness below 1.6 mm.
Technical Parameters
|
Parameter |
Value |
|
Instrument Design |
Integrated design of test section and control section for convenient on-site installation and commissioning |
|
Observation Window |
Large observation window for monitoring specimen burning condition |
|
Design |
Advanced industrial appearance and control design for convenient access to specimen and burner |
|
Gas Pressure Control |
Imported pressure gauge and pressure regulating valve for precise pipeline gas pressure control |
|
Gas Flow Control |
Imported needle valve with gas mass flowmeter for precise gas flow control |
|
Timer |
Automatic timer device records test time |
|
Bunsen Burner |
Imported burner with inner diameter 10 mm +/- 0.2 mm; flame application time 12 s; flame extinguishes automatically when time is reached |
|
Ignition |
Pulse high-voltage electronic automatic ignition |
|
Overall Dimensions |
0.67 x 0.33 x 0.8 m |
|
Control System |
PLC plus touch screen intelligent control system with automatic ignition and automatic timing |
|
Report Storage |
Test reports are automatically stored and can be printed at any time; printer included |
|
Operation |
More intelligent test process and simple operation |
|
Flame Height |
Precisely controlled to 40 +/- 2 mm by imported needle valve |
|
Ambient Temperature |
10-35 C |
|
Relative Humidity |
<= 75% |
|
Power Supply |
AC 220V +/- 10V, 50Hz |
|
Gas Source Purity |
>= 95% natural gas or propane, supplied by customer |
