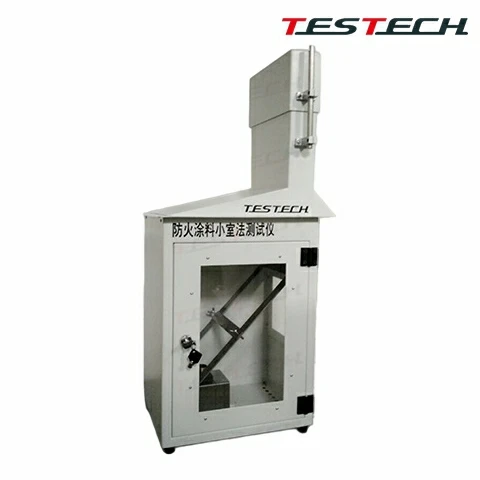

Product Overview
This tester meets the technical indexes and requirements specified in GB 12441-2005.
It is suitable for testing the fire-blocking performance of decorative fire-retardant coatings under laboratory conditions, expressed by burning mass loss and carbonized volume.
Technical Parameters
|
Parameter |
Value |
|
Specimen Chamber |
Painted sheet metal cabinet, attractive appearance and easy operation |
|
Test Chamber Composition |
Cabinet, fuel cup, door latch, specimen support, return-air hood, chimney, glass window, air inlet hole, and related parts |
|
Specimen Support Frame |
Two stainless steel supports, each 480 mm x 25 mm x 3 mm |
|
Return-Air Hood Adjustment |
The spacing between the return-air hood and the chimney can be adjusted up and down |
|
Specimen Clamp |
Tiltable at 45 degrees +/- 2 degrees |
|
Copper Fuel Cup |
Outer diameter Phi24, wall thickness 1 mm, height 17 mm, capacity 6 ml |
|
Fuel |
Absolute ethanol |
|
Pipette |
Supplied with one 15 ml pipette |
|
Structure |
Reasonable structure and simple operation |
|
Overall Dimensions |
0.4 x 0.3 x 0.7 m |
|
Equipment Weight |
50 kg |
