Product Overview

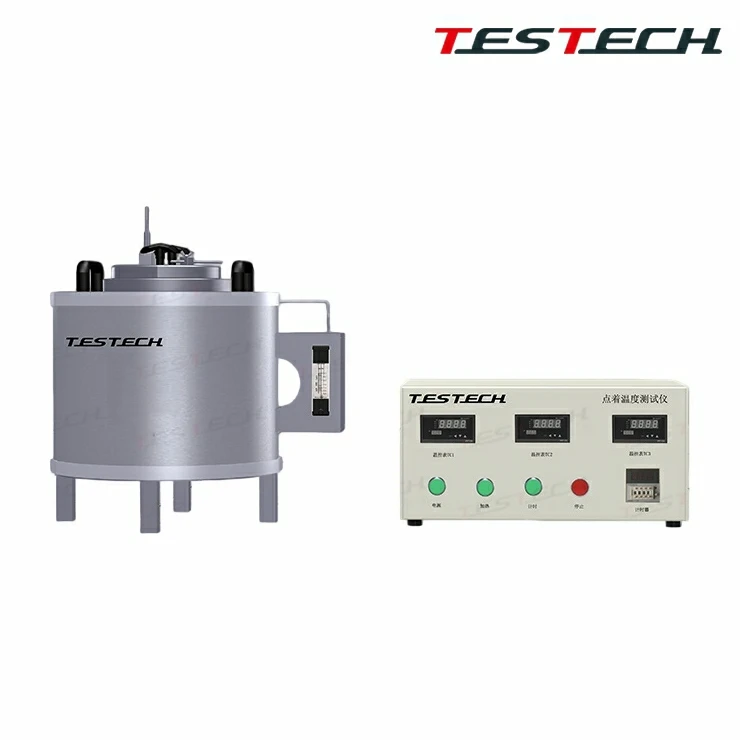

The TESTech Ignition Temperature Tester is designed and manufactured according to the technical indexes and requirements specified in GB/T 4610-2008.
Under specified test conditions, combustible gases decomposed from the material are ignited by an external flame and sustain burning for a certain period, so that the minimum ignition temperature of the material can be determined.
It is one of the methods specified by national standards for evaluating the combustion performance of materials, and the test result is applicable to relative comparison among materials.
Applicable Standard
- GB/T 4610-2008: Plastics - Determination of ignition temperature by hot-air furnace method
- GB/T 9343-2008: Test methods for burning behavior of plastics - Determination of flash-ignition temperature and spontaneous-ignition temperature
- ASTM D 1929-1996: Test method for determining ignition properties of plastics
Technical Specifications
|
Parameter |
Value |
|
Cabinet Finish |
Painted surface treatment for attractive appearance |
|
Outer Furnace Tube |
Inner diameter 100 mm +/- 5 mm, length 240 mm +/- 20 mm, ceramic tube with temperature resistance not lower than 750 C |
|
Inner Tube |
Inner diameter 75 mm +/- 2 mm, length 240 mm +/- 20 mm, temperature resistance not lower than 750 C |
|
Stainless Steel Container |
Inner diameter 9 mm, height 48 mm |
|
Butane Igniter |
Nozzle inner diameter 1.8 mm +/- 0.3 mm, flame height adjustable from 10 mm to 20 mm |
|
Copper Ingot Furnace |
Can be kept constant at any temperature between 150 C and 450 C |
|
Air Source |
Built-in fan with imported flowmeter for precise gas flow control |
|
Insulation Layer |
Composed of more than 60 mm thick insulating mineral wool wrapped with stainless steel |
|
Thermocouples |
Three imported thermocouples and temperature instrument for monitoring furnace and specimen temperatures |
|
Specimen Container |
Made of stainless steel |
|
Timer Accuracy |
0.1 s |
|
Heating Program |
Automatic temperature rise program |
|
Ambient Temperature |
Room temperature to 40 C |
|
Ambient Humidity |
<= 75% |
|
Working Voltage |
AC 220 V +/- 10V, 50Hz |
|
Power Consumption |
600 W |
|
Temperature Control Accuracy |
+/- 2 C, adjustable within 150 C to 450 C |
|
Display Accuracy |
+/- 0.5 C |
|
Overall Dimensions |
Test furnace: 0.4 x 0.4 x 0.5 m |
|
Equipment Weight |
20 kg |
