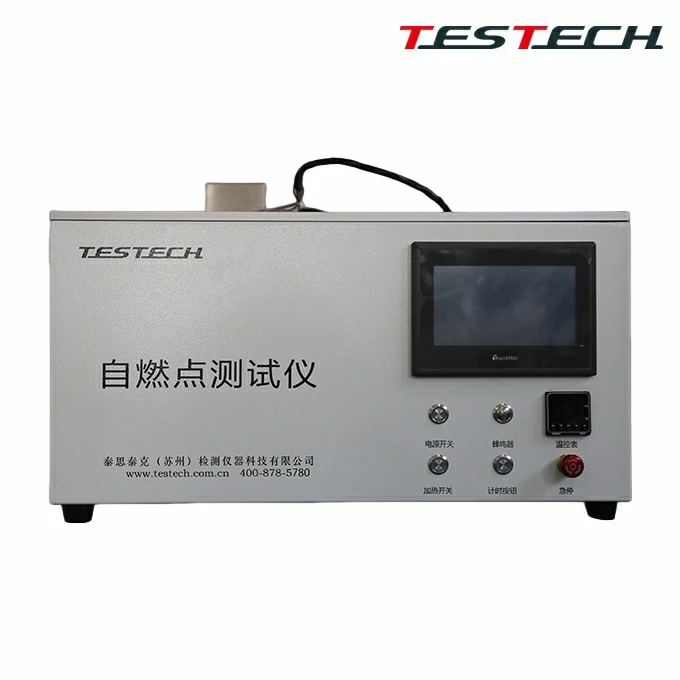

Auto Ignition Point Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of auto ignition point tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

The TESTech solid auto-ignition point tester is designed according to GB/T 21756-2008 Determination of Relative Auto-Ignition

Temperature of Solid Substances, with reference to GB/T 21860-2008 Test Method for Auto-Ignition Temperature of Liquid Chemicals.

It is a method for determining the auto-ignition behavior of solid chemicals by programmed heating and is suitable for most solid specimens.

A solid sample of specified volume is placed into the oven. The oven temperature is increased at a rate of 0.5 C until 400 C.

The specimen temperature and oven temperature are measured simultaneously. When the specimen self-heating temperature suddenly reaches 400 C, the equipment determines that auto-ignition has occurred and automatically records the oven temperature at that moment.

This recorded oven temperature is taken as the auto-ignition temperature of the specimen.

• Two thermocouples are provided.
• One thermocouple is inserted into the center of the specimen to measure specimen temperature.
• The other thermocouple is placed between the specimen and the heating furnace to monitor the furnace temperature.

• The specimen is normally placed in a stainless steel mesh basket with a cubic side length of 20 mm, and the basket is then placed in the heating furnace.
• Because a thermocouple must be inserted into the center of the specimen during testing, the solid specimen should normally allow insertion of a 1 mm thermocouple.
• If the specimen cannot accept a thermocouple or is too large to fit into the 20 mm cubic mesh basket, it should be crushed or ground before testing.

• Explosive products.
• Products that self-ignite in air at room temperature.
• Solid products that melt under the conditions of this method, such as surfactants.

• Determines the auto-ignition characteristics of solid substances by placing them in a steel wire mesh cube with side length 20 mm under rising temperature conditions in the heating chamber.
• Conforms to GB/T 21756-2008 Determination of Relative Auto-Ignition Temperature of Solid Substances for Industrial Chemical Products.

• Embedded processor with Windows CE operating system.
• 8-inch LCD touch screen for real-time display of test status.
• Supports both Standard Mode and Custom Mode to combine standardization and flexibility.
• Integrates high-temperature thermal insulation, temperature control, and precision measurement technology.
• Uses an electrically heated crucible furnace with natural convection air circulation to ensure uniform heating of the specimen.
• Furnace chamber is made of insulated vacuum ceramic fiber with strong thermal insulation performance.
• The cubic wire mesh basket is suspended at the bottom of the furnace lid for safe and convenient specimen loading.
• Provides automatic heating control, temperature control, and combustion detection.
• Equipped with a cleaning rod for clearing the small center hole of the inner liner.
• Equipped with a debris tray to collect specimen fragments falling from the basket and residues removed by the cleaning rod.
• Equipped with a cooling stand for placing the furnace lid assembly after the test for cooling.
• Uses thermocouple sensors for fast and accurate response to temperature changes.
• Displays real-time time-temperature curves and allows viewing of raw data.
• The entire test process is fully automated, with support for parameter setting, data storage, and report viewing.
