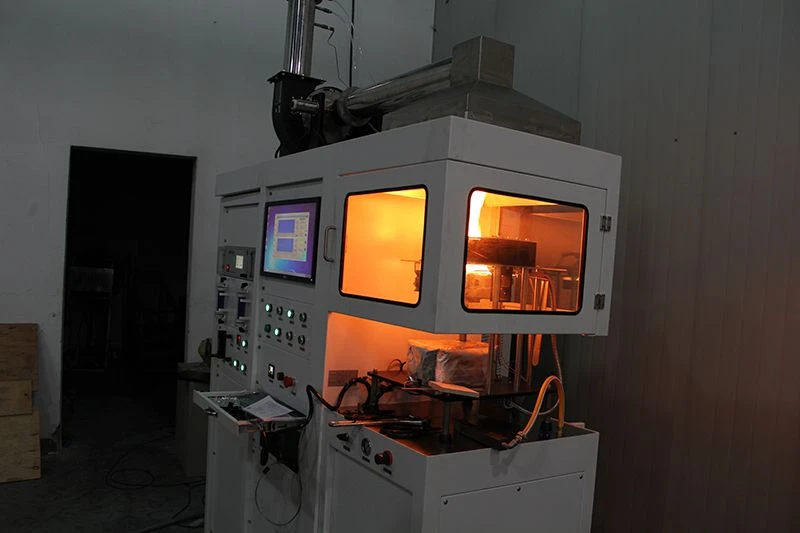

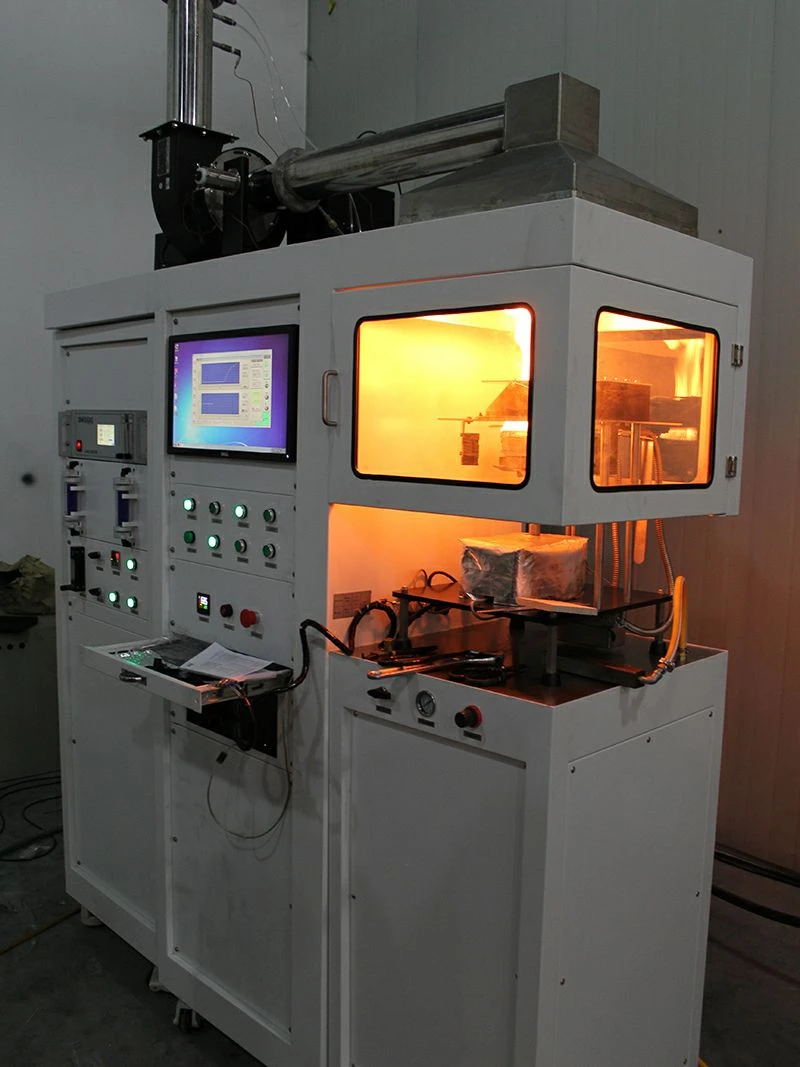

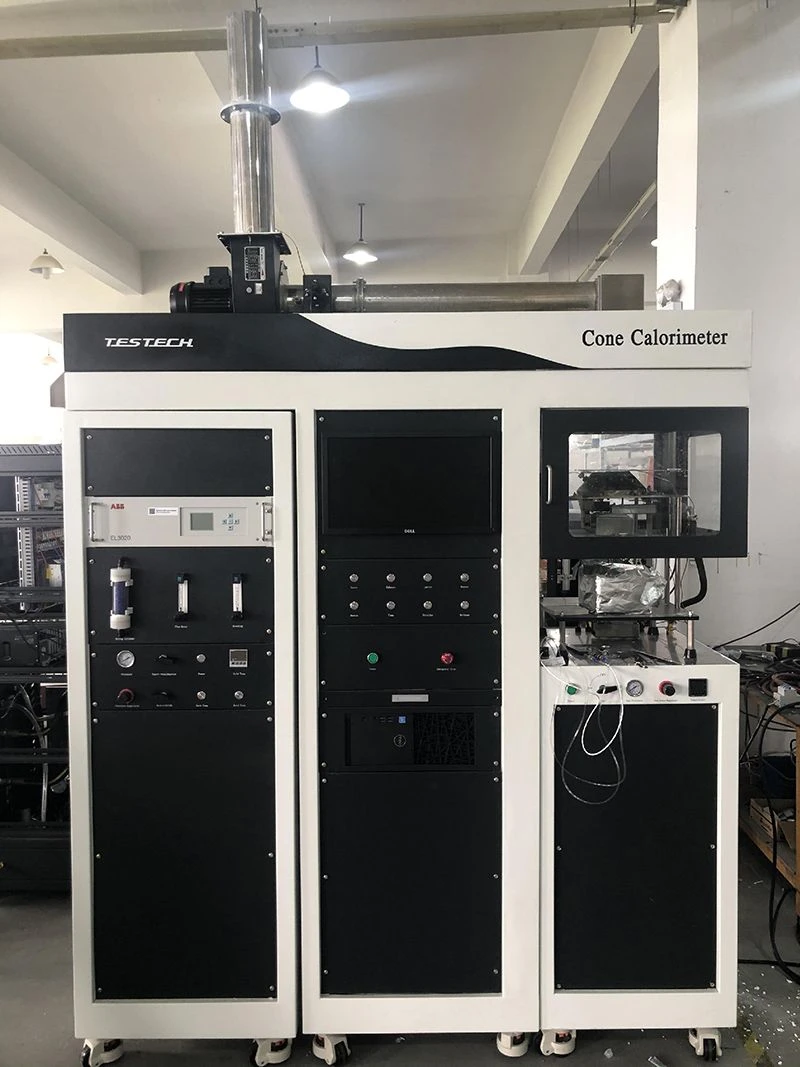

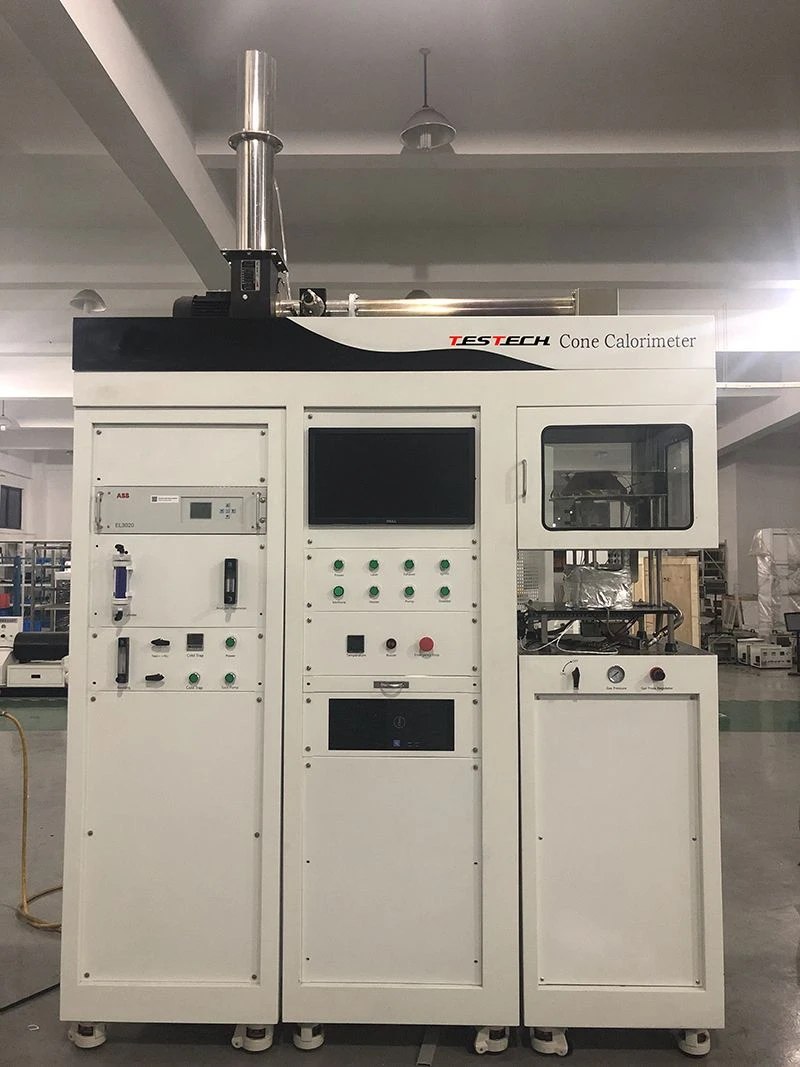

Cone Calorimeter

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of cone calorimeter in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

Heat release is the core measurement parameter for evaluating the fire characteristics of materials and products.
The cone calorimeter can meet all existing standards, including ISO 5660, ASTM E 1354, ASTM E 1474, ASTM E 1740, ASTM F 1550, ASTM D 6113, NFPA 264, CAN ULC 135, and BS 476 Part 15.

It may also be purchased in component form. Laboratories requiring specific tests such as heat release, mass loss, or smoke generation can first purchase the required modules and later add other instruments into the same test chamber to form a complete system.

The test theory of the cone calorimeter is based on the principle that pure combustion calorific value is proportional to the oxygen consumed in combustion. For every 1 kg of oxygen consumed, 13.1 MJ/kg of heat will be generated.

Heat release of the test gas, ignition time, oxygen consumption rate, CO and CO2 generation rate, and gas airflow are measured. The DAQ system helps the user control the whole test process, while the 19-inch touch screen supports automation and reduces installation space.

After setting the simulated temperature corresponding to real fire conditions, the user can conduct tests by changing specimen temperature and temperature rise time, obtaining results similar to real fire environments.

• Standard control cabinet with computer and Labview intelligent control system, attractive appearance, and easy operation.
• Cone heater inside a truncated cone, 230V, 5000W, heat output 0 to 120 kW/m2.
• Automatic ignition system and automatic burning time measurement.
• Three K-type thermocouples and three-phase PID temperature controller for temperature regulation.
• Automatic movable radiation shutter protects the specimen area before testing and ensures stability of initial mass measurement, giving the operator additional time for system inspection before test start.
• Specimen holder for specimen size 100 mm x 100 mm, thickness not exceeding 50 mm; exposed central area 50 mm x 50 mm with deviation from the cone heater centre within +/- 1%.
• Weighing system uses Siemens imported load cell; mass measurement by strain gauge pressure component; accuracy up to 0.1 g; stable weighing results with weighing range 0 to 3 kg.
• Radiation cone and weighing system are placed on an independent workbench, separated from the test mainframe to prevent vibration error from the fan duct system.
• Independent data analysis cabinet, movable for other heat release experiments.
• Flexible connection of the heating cone weighing system helps avoid weighing errors caused by vibration from fans, pumps, and other equipment.

• Spark generator greater than 10 kV with safety shut-off device; ignition timer supports segmented timing, display resolution 1 s, and timing error less than 1 s/h; calibration burner flow meter accuracy within +/- 2% of reading.
• System automatic ignition, automatic timing, and automatic gas cut-off flameout.
• Imported lens and optical filter.
• Separated design of laser and photoelectric receiver from the smoke duct to avoid optical errors caused by smoke duct vibration.

• Composed of axial flow fan, stainless steel exhaust duct, diffuser plate, smoke collection hood, exhaust pipe, orifice plate flow meter, and thermometer.
• Manufactured in stainless steel for longer service life, including hood, gas sample probe, and exhaust fan.
• Exhaust air speed control: 24 L/s; adjustable flow from 0 g/s to 50 g/s; accuracy at least 0.1 g/s; error 1%.
• Equipped with orifice plate flow meter and imported micro differential pressure sensor, range 0 to 500 Pa, accuracy +/- 1.0% FS, hysteresis +/- 0.1% FS, non-repeatability +/- 0.05% FS.

• Includes annular sampler, suction pump, particle filter, cold trap, exhaust valve, moisture filter, and CO2 filter.
• Three-stage filter with filtration precision of 0.3 um.
• Refrigerated cold trap using compressor air-conditioning refrigeration system; control temperature 0 to 5 degrees C.
• Imported suction pump; flow 33 L/min, vacuum 700 mmHg, pressure 2.5 bar.
• Drying cylinder for filtering moisture and impurities.
• Flow controller for sampling gas flow control.
• Sampler has 12 small holes opposite to the airflow direction, with internal soot filter, located 685 mm from the smoke collection hood.

• Imported-brand paramagnetic oxygen analyzer not lower than imported brand standard; O2 measurement range 0 to 25%, linear deviation less than 0.5% FS, repeatability less than 50 ppm O2, response time T90 less than 3.5 s; domestic analyzer optional.
• Imported-brand infrared CO2 analyzer not lower than imported brand standard; CO2 measurement range 0 to 10%, linear deviation less than or equal to 1% FS, repeatability less than or equal to 0.5% FS, response time T90 less than 2.5 s.
• Imported-brand infrared CO analyzer not lower than imported brand standard; CO measurement range 0 to 1%, linear deviation less than or equal to 1% FS, repeatability less than or equal to 0.5% FS, response time T90 less than 2.5 s.
• Imported laser system for smoke density measurement with accuracy error 2%, using photodiode, 0.5 mW He-Ne laser, and main and backup photodetectors.
• USA imported photoelectric receiver: wavelength range 350 to 1100 nm, peak response 0.65 A/W, gain adjustment 70 dB.
• Imported weighing sensor for measuring weight change of specimen during the test; test range 0 to 3000 g, resolution 0.01 g; actual specimen weight requirement less than 500 g.
• Temperature control system uses imported Omron PID control system; three thermocouples with diameter 1 mm measure cone temperature; another 1 mm sheathed thermocouple measures the temperature 100 mm above the orifice plate.
• USA imported Omega thermocouple with accuracy 0.1 degrees C, fast temperature acquisition, and long service life.
• Exhaust flow rate is calculated from the pressure difference on both sides of a sharp-edged orifice plate with internal diameter 57 mm +/- 1 mm in the exhaust duct, linked to the control system for automatic wind speed control, located 350 mm above the fan.
• USA imported micro differential pressure sensor, accuracy +/- 1% FS, hysteresis +/- 0.1% FS, maximum linear pressure 69 kPa.

• USA imported Medtherm thermopile heat flux meter for setting the radiation level on the specimen surface, equipped with water cooling system for heat flux meter protection; design range 0 to 120 kW/m2, accuracy +/- 3%, repeatability within +/- 0.5%.
• Burner calibration system uses 99.5% purity methane to calibrate the heat release rate measured by the instrument; methane mass flow meter accurately controls methane flow.
• Water cooling system provided for cooling the imported heat flux meter during operation, with both self-circulating water tank and tap water interface options.
• Square calibration burner provided.
• Japan imported mass flow controller with flow accuracy 2%.

• Labview control system dedicated to laboratory instruments, with friendly interface, easy operation, and accurate control.
• Functions include displaying instrument status, calibrating the instrument and storing calibration results, collecting test data, calculating required parameters, displaying results in accordance with standards, and averaging multiple test values.
• The host computer communicates with the PLC through an RS485 interface communication module for data transmission and action control.
• PID temperature control module is linked with the power adjustment module, and constant-temperature adjustment is performed under PLC control.
• Signal acquisition processing module is linked with the air volume circuit control module; PLC logic output intelligently adjusts preset wind speed; mechanical rotation module is linked to PLC I/O ports to control closing state of the rotation mechanism.
• Labview software has strong data interaction functions and is suitable for scientific research analysis.
• Software modules can independently analyze process curves of each test data set.
• By revising raw data through parameter settings, differences in test results of the same specimen can be compared to help analyze influencing factors.
• Test report supports switching analysis between full-size charts and thumbnail charts.
• Independent delay correction can be performed for O2, CO, and CO2 to compare test results and support deeper analysis.
• Freely selectable output curves: O2, CO2, CO, MASS, Heatflux, MFM, DPT, PD.
• High level of automation integration, c-factor, and one-key operation for testing functions.
• Test report module supports preview, editing, and report generation.
• C-factor log records calibration data and monitors system change.
• Heatflux log records radiant heat flux power setting data for convenient review and reference.
• Accurate and reliable test results, good repeatability, and error not more than +/- 2%.
• Time delay influence analysis on test results.
• Real-time calculation, analysis, and display of process parameters, including heat release rate, smoke production rate, oxygen consumption, CO2 generation, CO generation, mass loss, radiant heat, wind speed, and total heat release.
• Optical system calibration uses one-key five-level automatic calibration at 0%, 25%, 50%, 79%, and 100%, and automatically generates a calibration report.

• Cone heater rated power 5000W, heat output 0 to 120 kW/m2; irradiance uniformity deviation from the centre not exceeding +/- 2%; radiant heat flux meter accuracy +/- 3%, repeatability within +/- 0.5%.
• Specimen weighing range 0 to 3000 g; independent weighing device; sensitivity 0.1 g; output drift within 30 minutes not exceeding 0.8 g.
• Specimen holder for specimen size 100 mm x 100 mm, thickness not exceeding 50 mm; exposed central area 50 mm x 50 mm with deviation from the cone heater centre within +/- 1%.
• Imported paramagnetic oxygen analyzer, oxygen range 0 to 100%, error less than 0.01%, repeatability less than 0.01%, response time less than 5 s.
• Infrared CO and CO2 analyzer: CO2 range 0 to 10%, error 1% FS, repeatability less than 2%, response time less than 7 s; CO range 0 to 1%, error 1% FS, repeatability less than 2%; CO optional.
• Exhaust fan adjustable flow 0 to 50 g/s, accuracy 0.1 g/s.
• Cold trap based on compressor principle: 0 to 5 degrees C.
• Imported diaphragm pump, flow rate 33 L/min.
• Micro differential pressure sensor range 0 to 500 Pa, accuracy +/- 1.0% FS, hysteresis +/- 0.1% FS, non-repeatability +/- 0.05% FS.
• Imported thermopile heat flux meter, design range 0 to 120 kW/m2, accuracy +/- 3%, repeatability within +/- 0.5%.
• Detector chromatic standard accuracy +/- 5%, output linearity (transmittance) less than 1%, absolute transmittance less than 1%.
• USA imported micro differential pressure sensor, accuracy +/- 1% FS, hysteresis +/- 0.1% FS, maximum linear pressure 69 kPa.
• USA imported photoelectric receiver: wavelength range 350 to 1100 nm, peak response 0.65 A/W, gain adjustment 70 dB.
• During calibration, the average temperature of the cone heater thermocouples shall remain within +/- 5 degrees C of the preset value.

• Heat release rate and total oxygen consumption; CO2 generation.
• Ignition time, flue gas flow velocity, C-factor, and extinguishing time.
• Critical ignition heat.
• Mass loss rate.
• Smoke release rate.
• Total heat release.
• Time delay influence analysis on test results.
