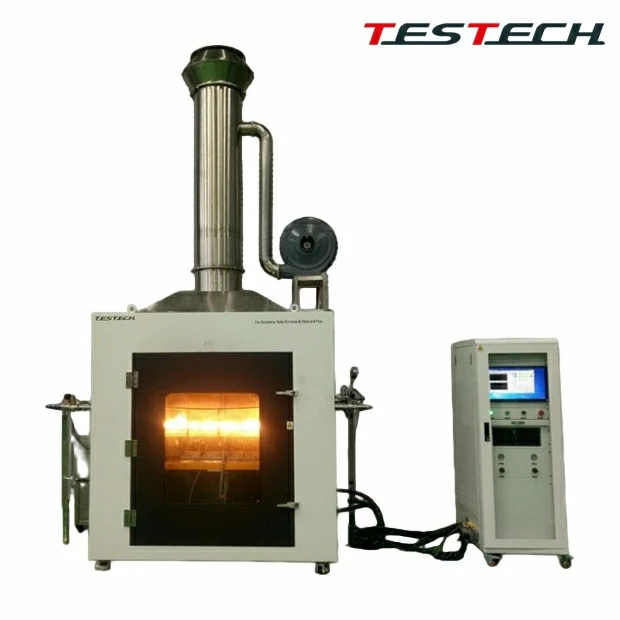

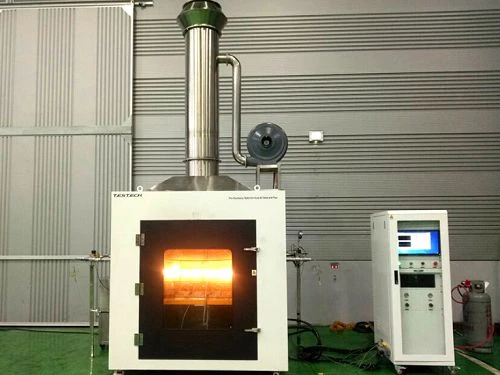

Fire Resistance Tester for Valve

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of fire resistance tester for valve in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

This product is designed and developed according to the requirements of ISO 10497 and JB/T 6899.

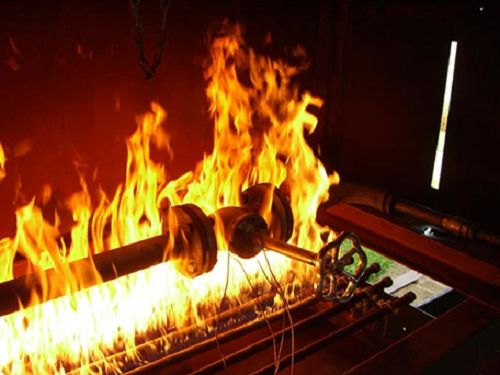

It uses a burner to simulate a fire scenario and performs fire resistance testing of valves for marine and similar applications under internal pressure and load conditions.

• Combustion chamber dimensions: 2,500 (W) x 1,500 (D) x 3,000 (H) mm; made of stainless steel plate with internal stainless steel support frame.
• Large viewing window provided for observing internal test conditions.
• All internal tooling is made of stainless steel.
• There are six burners in total, each with a cross-sectional area of at least 80 mm x 350 mm. The number of burners can be selected according to the size of the specimen, with at least 20 fan-leaf type nozzle burners per square decimeter.
• Burner lifting device provided to adjust the burner-to-specimen distance.
• Exhaust pipe size: phi400 x 1,000 (L) mm, equipped with diffuser at the top.
• Each burner unit is equipped with a venturi mixer to make gas and air fully mixed and ensure flame temperature.
• The temperature measuring block is made of 38 mm cubic carbon steel with embedded armored thermocouple.
• Stainless steel exhaust piping and related accessories.
• Imported double flowmeters for air flow and gas flow, with control valves.
• Imported brand pressure gauge and pressure regulating valve.
• The bottom of the combustion chamber is equipped with a burning residue drip tray and drainage filtration system.
• Drainage system and throttle valve are made of stainless steel.
• The exhaust fan is stepless variable-speed type, guiding airflow to produce directional flame.
• Burner position can be moved to suit different types of valve testing.
• Water level gauge and graduated cylinder are provided to facilitate observation of valve leakage during testing.

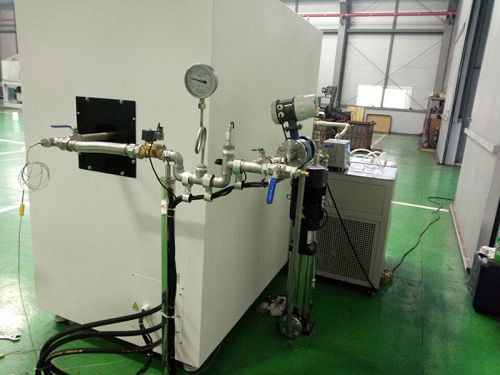

• High-pressure piping and valve body module are provided to meet high-pressure testing and safety requirements.

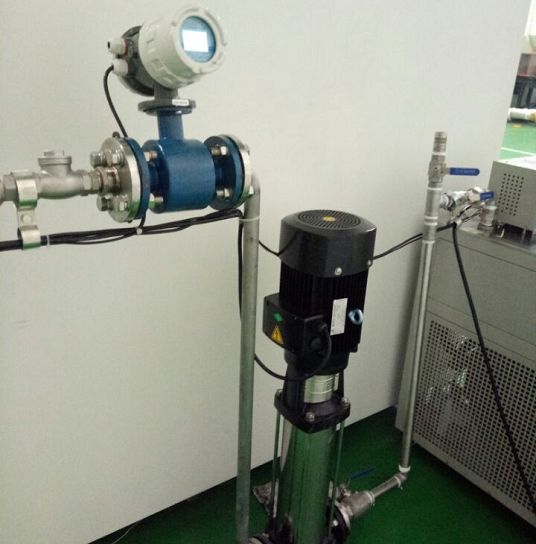

• A booster pump is used to pressurize the test valve, with a maximum value of 31.9 MPa.
• The relief valve is set to 1.5 times the working pressure at 20 degrees C to prevent rupture of the tested valve body due to vaporization pressure increase.
• Imported armored thermocouple monitors the fire-zone temperature, which reaches 760 degrees C within 2 minutes.
• The average thermocouple temperature in the measuring block reaches 650 degrees C within 15 minutes.
• DPT can accurately test system pressure with test accuracy of +/- 0.01 MPa.
• Timing range: 0 to 9999 +/- 0.1 seconds.
• Test duration can be set, with default 30 minutes.
• After the test, the water levels in the measuring vessel and water receiving tray are checked to calculate valve leakage.

• Computer control system with LabVIEW dedicated test software.
• The test realizes intelligent control with automatic ignition, automatic flame adjustment, and automatic saving of test reports for free retrieval and printing.
• Laboratory development tools are used to provide operators with a simple graphical user interface environment.
• Automated control logic records and stores test data in real time, making repeatability comparison convenient.
• Data analysis and test report formats are provided to meet customer requirements.
• Replaceable burners are included to satisfy the test methods of three kinds of fire-fighting parts.
• Imported flow controller can automatically control gas and air, with flow test range from 0 to 100 L/min.

• Optional water temperature control system, including heating equipment, to ensure water temperature is controlled at 80 degrees C +/- 2 degrees C during the test.
• Heating power: 15 KW.

• Tools: compressed air, computer, and propane gas.
