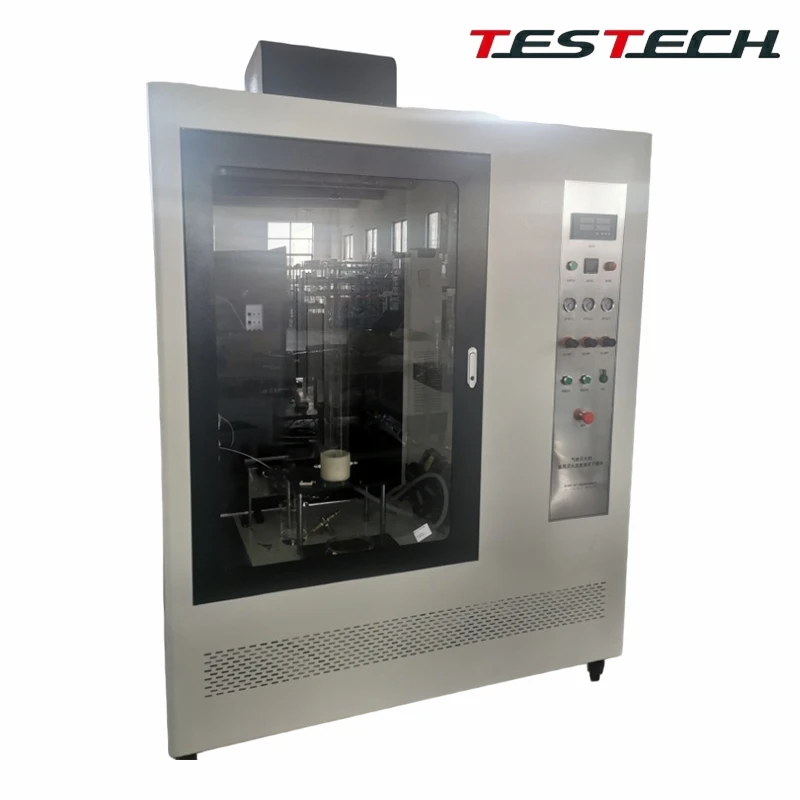

Released Gas Burning Rate Tester

TESTech Instrument (Suzhou) Technologies is one of the leading manufacturers and suppliers of released gas burning rate tester in China. Welcome to wholesale premium test equipment at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

• The combustible gas combustion rate tester is developed in accordance with the requirements of UL 9540A and according to Appendix C of ISO 817.
• The combustion rate of combustible gas in a vertical glass tube and related auxiliary parameters are recorded by camera equipment to realize the measurement of combustible gas combustion rate.

• The tester mainly consists of the combustion tube, ignition system, camera, gas supply system, and exhaust gas treatment system.

• Made of quartz glass, with inner diameter 40 mm and length 1.2 m.
• The combustion tube is placed vertically and fixed by machined fixtures.
• The bottom of the combustion tube is open and equipped with the ignition system and damping hole.
• The top of the combustion tube is connected to a mixing vessel. Test gas flows in from the top and out from the bottom; the top shall be closed before the end of ignition and flame propagation.
• Quenching meshes are installed at both ends of the tube, with mesh size 1 mm.

• The ignition system is installed at the bottom of the combustion tube.
• Ignition electrodes are made of tungsten wire with diameter 1 mm, inserted from both sides at the bottom, with spacing of 6.4 mm.
• Ignition transformer output: 15 kV, 30 mA.
• Ignition time is editable; default value is 0.3 ±0.05 s.

• A high-speed industrial camera system is used to record flame combustion and propagation.
• Equipped with camera mounting bracket with adjustable height.
• A reflector is mounted on the side of the combustion tube so the camera can simultaneously capture front and side flame effects.
• Dedicated flame image analysis software calculates flame height.

• The gas supply system consists of a suction pump and flowmeter.
• Imported KNF suction pump, flow rate 33 L/min.
• Sample gas flow is stabilized through the flowmeter.
• A mixing vessel and magnetic stirrer are configured to ensure uniform mixing of the test gas.
• Before the test, air purging removes impurities inside the combustion tube.
• Before the test, sample gas purging ensures accurate gas concentration inside the combustion tube.

• An expansion vessel and gas washing bottle are connected at the tail end of the combustion tube.
• The gas washing bottle is filled with absorption solution to absorb harmful components in the exhaust gas.

• Burning rate is determined based on the recorded flame propagation process and related auxiliary parameters.
